Supporting components that keep hydraulic systems clean, sealed, monitored and serviceable — Stauff pressure and level gauges, test couplings, tube-cleaning systems and f…
Stauff Pressure Gauges
View range →
Stauff Test Couplings
View range →
Stauff Tube Cleaning Systems
View range →
Stauff Level Gauges
View range →
Stauff Filler Breathers
View range →
Eaton Walterscheid Walform Machine
View range →
Eaton Walterscheid Anti Bloc Fett/Grease
View range →
Eaton Walterscheid Walform Seal
View range →
GS Hydro Retain Ring
View range →
GS Hydro Bonded Seals
View range →
O-Rings
View range →
Dowty Seals
View range →Overview
Supporting components that keep hydraulic systems clean, sealed, monitored and serviceable — Stauff pressure and level gauges, test couplings, tube-cleaning systems and filler breathers; Eaton Walterscheid Walform tooling, seals and assembly paste; and a full range of sealing products (O-rings, Dowty/bonded seals).
Buying from Chuan Kok
Genuine Stauff and Eaton Walterscheid accessories plus a deep sealing inventory. Tell us the thread/port size and we'll match the correct seal or gauge.
Standards & materials
- Stauff test points: DIN 2353 / M16x2
- Sealing: BS 4518 / AS568 O-rings; bonded/Dowty seals
Typical applications
- Pressure testing and monitoring
- Reservoir breathing and level indication
- Tube preparation and Walform assembly
- Static sealing of ports and fittings
About this range
For more information about the products that we have, please see below:
Stauff Pressure Gauges
| Material | STAINLESS STEEL SS316 (CASING) / BRASS (BOTTOM) |
|---|---|
| Design Standard | EN 837-1 |
| Working Pressure | UP TO 700 BAR |
| Size | 2 1/2" and 4" / 63MM and 100MM |
Stauff Test Couplings
| Material | STAINLESS STEEL SS316 / CAST STEEL ZINC NICKEL PLATED |
|---|---|
| Design Standard | DIN2353 / ISO 8434-1 |
| Working Pressure | UP TO 630 BAR |
| Temperature | - 20°C to 100°C / - 20°C to 200°C / - 40°C to 150°C |
Stauff Tube Clean Systems
| Function | REMOVE ANY LOOSE CONTAMINANTS FROM THE END OF THE HOSE, TUBE OR PIPE. |
|---|---|
| Connection Type | (S) STANDARD SERIES / (C) COUPLING SERIES / (A) ABRASIVE SERIES / (G) GRINDING AIR |
| Compressor Requirement | 87 PSI - 145 PSI |
Stauff Level Gauges
| Material | SEALING (NBR / FPM) / HOUSING (STEEL ST 12, BLACK EPOXY-COATED) / SIGHT TUBE AND PLUGS (POLYAMIDE-PA) / SCALE PLATE (PVC) TANK |
|---|---|
| Temperature | MAXIMUM 2 BAR |
| Temperature | - 30°C to 80°C |
| Size | 76MM - 305MM |
Stauff Filler Breathers
| Material | GLASS-FIBRE REINFORCED POLYAMIDE-PA (BODY & CAP) / NBR (SEALINGS) |
|---|---|
| Design Standard | ISO 228 / ANSI B1.20.1 |
| Temperature | - 40°C to 120°C |
Walform Machine
| Tube Diameters | 6MM - 42MM |
|---|---|
| Wall Thickness | 3MM - 6MM |
| Working Pressure | 250 BAR - 800 BAR |
Eaton Waltersheid Anti Bloc Fett / Grease
| Function | TO AVOID GRIPPING AND TO REDUCE THE COEFFICIENT OF FRICTION WHEN INSTALL STAINLESS COUPLINGS OF MATERIAL SS316. |
|---|

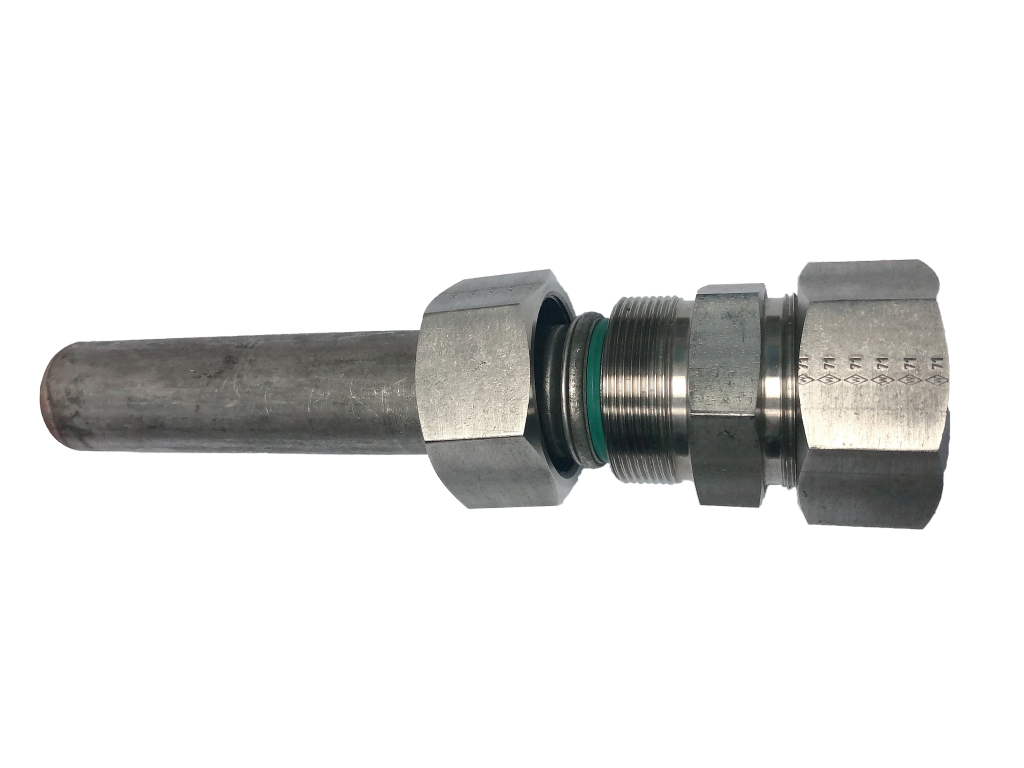

Eaton Walform Seals
| Function | AS THE LEAKAGE BLOCK AND TUBES THAT CAN BE JOINED OR CONNECTED EASILY BY TIGHTENING THE NUT. |
|---|
GS Hydro Retain Rings
| Material | STAINLESS STEEL SS302 |
|---|---|
| Design Standard | ISO6162-2 / ISO6164 |
| Working Pressure | UP TO 690 BAR |
| Size | 1/2” to 14" |
GS Hydro Bonded Seals
| Material | STAINLESS STEEL SS302 |
|---|---|
| Design Standard | ISO6162-2 / ISO6164 |
| Size | 1/2" - 8" |
Having a hard time finding the right parts?
We stock 15,000+ line items and can source specials nobody else can. Get a quotation within 2 hours.
