High Pressure Valves
SAE Flange Ball Valves
SAE Flange Ball Valves. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in SS316, built to recognised international standards. Material selected to suit the medium and pressure.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Specifications
| Size Range | 1/2" to 3" |
|---|---|
| Design | Quarter Turn Type |
| Material | Steel SS316 |
| Working Pressure | 3000 PSI 6000 PSI |
| Connections | SAE Flanged End, Code 61 / Code 62 |
| Applicable Medium | General Hydraulic Oil (Gas Application on request) |
| Origin | Germany |
| Temperature Range | Steel: -20°C to +100°C SS316: -30°C to +100°C |
| Ball Seats | POM standard option, other materials on request |
| Stem and Adaptor Sealing Materials | NBR standard option, other materials on request |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Hydraulic power units and manifolds
- Load-holding and isolation duties
- Test rigs and high-pressure instrumentation
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct information
SAE flange end ball valves, are two way ball valve that made suitable for SAE 3000 (ISO 6162-1) and SAE 6000 (ISO 6162-2) standards. It has extended male thread from the ball valve where SAE adapters are connected on both ends. Typically, SAE flange end ball valves are used for hydraulic oil and gases application. The available materials for SAE flange endball valve, are steel and stainless steel, with an available rating of 210 Bars and 420 Bars . SAE flange are required to connect to the SAE adapter that placed on both ends of the SAE flange ball valves.
Product information
1. Specifications:
SAE flange ball valve is a two way ball valve with SAE adapter (metric/unc) . The SAE adapter is connected to the extended thread at the both end of ball valve. SAE flange ball valve is used to control, restrict or shut off liquids or gases on the system line. It is also a quarter-turn type ball valve, that contains a floating ball. It is suitable for general hydraulic oil and gases application. A special feature of this type ball valve is it was made to suit SAE 3000# (ISO 6162-1) and SAE 6000# (ISO 6162-2)

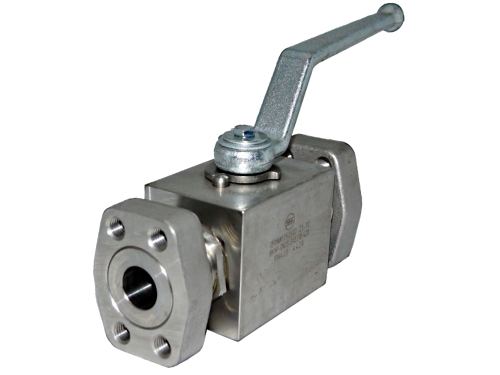

SAE Flange Ball Valve 210/420 Series with Both End SAE Flange
2. Material:
SAE flange ball valve are commonly made of materials, Steel (112A/1128) and Stainless Steel (442A/4428) . You can find more information about these materials in the MHA Catalogue . It is important to know the type of applications, and working temperature for the ball valves, in order to identify the most suitable material for the ball valves parts, such as ball seat, and seal for stem and adaptor. For the Steel material, the temperature range from -20˚C to 100˚C . while the temperature for Stainless Steel material, range from -30˚C to 100˚C .
KH Type SAE Flange Ball Valve 210/420 Series
3. Size Range & Pressure Rating:
The available sizes for SAE flange ball valves range from 1/2" to 2". There are two different types of ball valve body design. For sizes 1/2" to 1", the ball valves are designed as BKH/BKHP type (with a square body). While for sizes ranged from 1 1/4" to 2", ball valves are designed as MKHP type (with a round or hexagon body).
For BKH and MKHP type, there are only two available working pressures, namely, 210 Bars (3000 PSI) and 420 Bars (6000 PSI).
SAE flange ball valve which is a special KH type flange ball valve. KH type SAE flange ball valve has SAE-connection-metric. With sizes ranging from 1/2" to 3", it has a totally different design from type BKH/BKHP and MKHP, with KH type on both ends, so one side of SAE flange (usually is o-ring side) will connect directly to it. KH type SAE flange ball valve, can be used for 210 Bars (3000 PSI) or 420 Bars (6000 PSI) and is available in dual working pressure.
4. Connection Type:
The connection of SAE flange ball valve is in accordance to ISO 6162-1 and ISO 6162-2, thus, SAE flange are required for connections. Typically, there are four types of connection for SAE flange: S/W (Socket Weld), B/W (Butt Weld), NPT (National Pipe Thread), and BSPP (British Standard Pipe Parallel). For more information regarding ball valves, please refer to en.wikipedia.org/wiki/Ball_valve .
← To go back to High Pressure Valves page
FAQ Of SAE Flange End Ball Valves
What is the size range of SAE flange end ball valves?
The size range of SAE flange end ball valves is from 1/8 inches to 3 inches.
What is the working pressure for SAE flange end ball valves?
The working pressure of SAE flange end ball valves is available in 210 Bar and 420 Bar.
What is the function of SAE flange end ball valves?
The SAE flange end ball valves control the pressure and flow in the oil and gas industry.
What are the types of SAE flanged end ball valves?
The standard valve comes in 3 different valve body design which are BKH, MKH and latest design KH.
What are the benefits of KH valves?
KH valves have a full port valve body with a single piece and adapter assembly, reducing the point of assembly and ensuring 100 percent tightness.
What is a flange end ball valve made up of?
Stainless steel SS316 and carbon steel are the most common materials used in SAE flange end ball valves.
What are the parts require to install a complete SAE flange end ball valves?
A complete SAE flange end ball valve requires the following five parts:
- One set of ball valve with SAE flange adapter
- One set of SAE flange O-ring side
- Eight pieces of Allan cap screws
- Eight pieces of spring washer
- Two pieces of O-ring seal
Specifications
Technical data
| Size Range | 1/2" to 3" |
|---|---|
| Design | Quarter Turn Type |
| Material | Steel SS316 |
| Working Pressure | 3000 PSI 6000 PSI |
| Connections | SAE Flanged End, Code 61 / Code 62 |
| Applicable Medium | General Hydraulic Oil (Gas Application on request) |
| Origin | Germany |
| Temperature Range | Steel: -20°C to +100°C SS316: -30°C to +100°C |
| Ball Seats | POM standard option, other materials on request |
| Stem and Adaptor Sealing Materials | NBR standard option, other materials on request |
