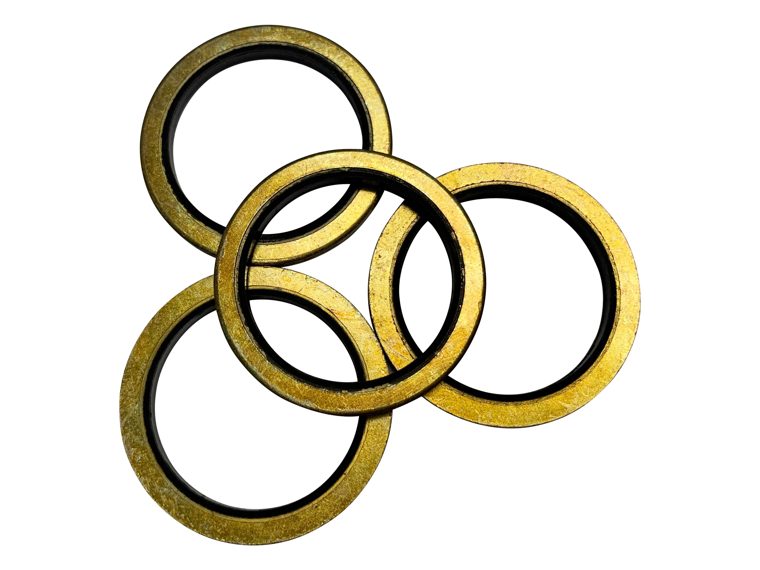

GS Hydro Bonded Seals
Dowty / bonded seals (self-centering washers) — a metal washer bonded to an elastomer inner seal for reliable sealing of threaded ports without thread tape.
- Genuine branded parts
- Deep sealing inventory
- Correct size matched to your port
Specifications
| Size Range | 1/2" to 8" |
|---|---|
| Design Standard | ISO6162-2 / ISO6164 |
| Size Available | Metric size, ANSI 36.10/36.19 pipes size |
| Material | SS302 |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Static and port sealing
- Pressure monitoring and testing
- System maintenance
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct information

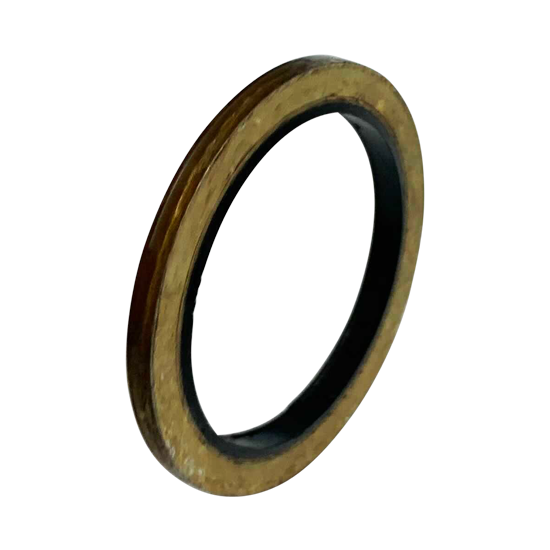

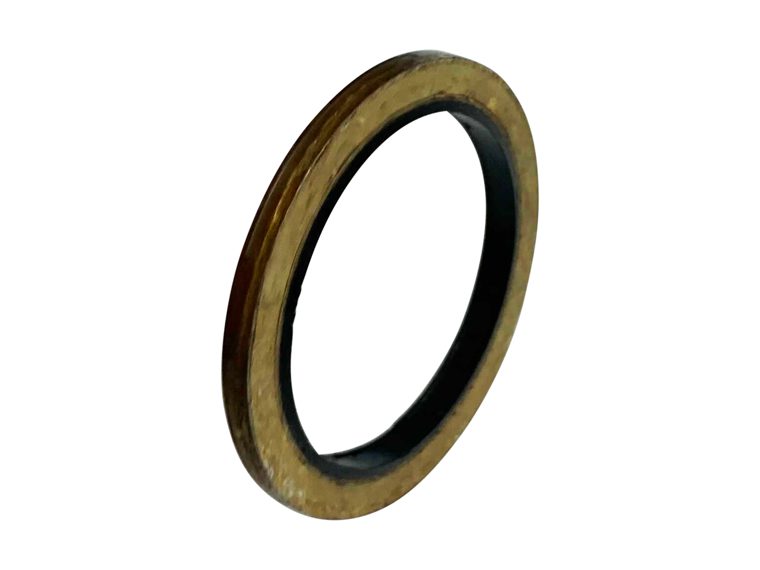

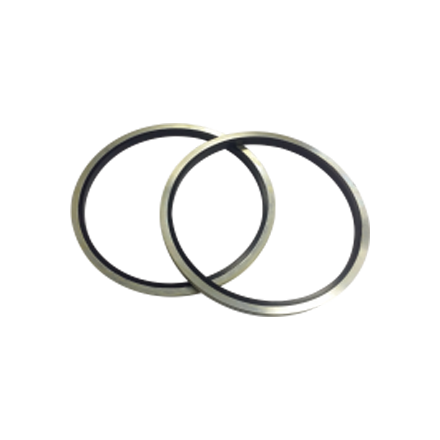

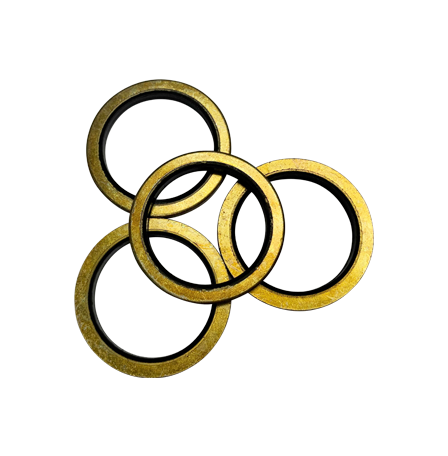

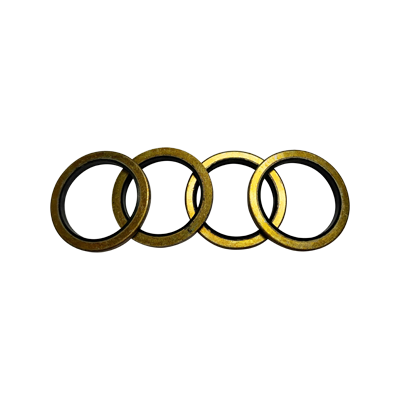

GS Hydro Flange Bonded Seals consist of a metallic ring with a rubber seal (NBR) bonded together.
GS Hydro Retain Ring Flanges systems's main application is in areas where piping without welding is important and are used in marine, offshore and mining.
FAQ Of GS Hydro Bonded Seals
What is the size range of bonded seals?
The size range of bonded seals is from 1/2 inches to 8 inches.
What is the working pressure that bonded seals can withstand?
The working pressure of bonded seals is up to 690 bar.
What are bonded seals made of?
Natural rubber (NBR) and a ring made of SS302 are the most common materials used in bonded seals.
Which design standard do bonded seals in accordance with?
The design standards of bonded seals are in accordance with ISO6162-2 and ISO6164.
Is bonded seal used in high or low pressure pipeline systems?
Bonded seal is used in high-pressure pipeline systems to ensure that there are no leakages in jointed regions.
Which fields/ industries does bonded seals apply?
Bonded seals are widely used in offshore applications, as well as marine and mining facilities.
Specifications
Technical data
| Size Range | 1/2" to 8" |
|---|---|
| Design Standard | ISO6162-2 / ISO6164 |
| Size Available | Metric size, ANSI 36.10/36.19 pipes size |
| Material | SS302 |
