Eaton Walterscheid Walform Seal
Tubes prepared for the Eaton Walterscheid Walform® system — a cold-forming process that creates a leak-tight, high-fatigue tube end for reliable connection under severe dynamic loads.
- Held ex-stock in common sizes
- Mill / material certificates available
- Cut lengths and full bundles
Specifications
| System | Eaton Walterscheid Walform® |
|---|---|
| Tube standard | EN 10305-4 |
| OD range | 6 mm to 42 mm |
| Benefit | Leak-free, high dynamic strength |
| Function | Acts as the leakage block — tubes can be joined or connected easily by tightening the nut |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- High-vibration hydraulic lines
- Mobile and marine hydraulics
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct information
Walform Seal serves as the leakage block and tubes that can be joined or connected easily by tightening the nut. It provides sealings along the tube and 24 degree fitting body. Thus, the potential leakage path is being sealed off by Walform Seals for extra protection.
There are various benefits brought by Walform Seals as following below:
Ease of assembly: Walform Seal is easy to exchange for repeated assembly. It is installed after pre-assembly to eliminate the possibility of damage to the seal.
Reliability: Walform Seal is functional reliability under dynamic pressure impulse and vibration loads as the shoulder contour provides precisely defined support of the hydraulic tube behind the two cutting edges.
Non-overtightening: The clearly detectable force increase at the end of assembly reliably ensures that neither insufficient nor excessive tightening occurs.
Leak-proof: Additional Walform Seal reduces leakage risk for primary sealing, eliminating potential leakage path.
Walform Seal
FAQ Of Eaton Walterscheid Walform Seal
What is the function of Walform Seals?
Walform Seal create a seal as leakage block to provide extra protection at the potential leakage path.
What is the brand of Walform Seals?
The brand of Walform Seals is Eaton.
What are the features of Walform Seals?

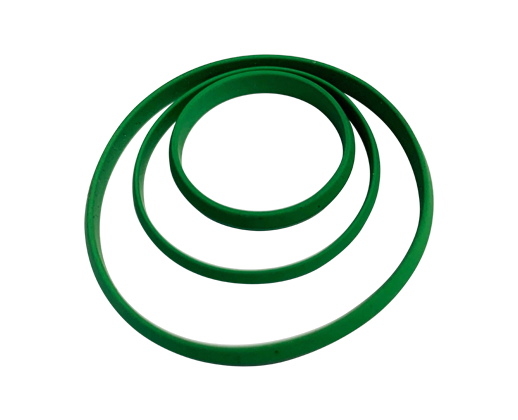

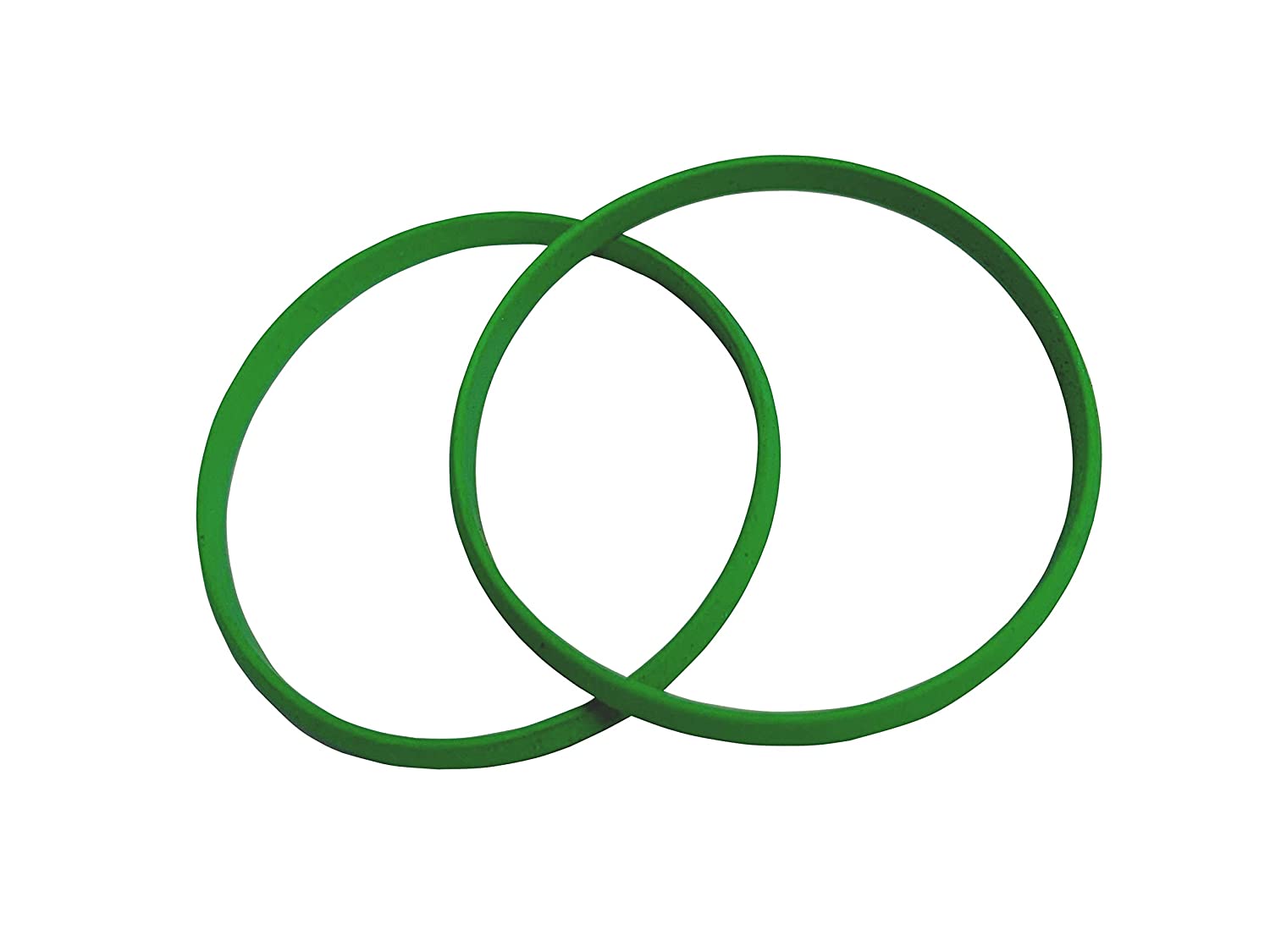

Walform Seal is designed as round cross section with green in colour.
What are the advantages of using Walform Seals?
It is easy to assembly, reliability under dynamic pressure impulse, non-overtightening and leak-proof.
Yes. It reduces leakage risk for primary sealing.
