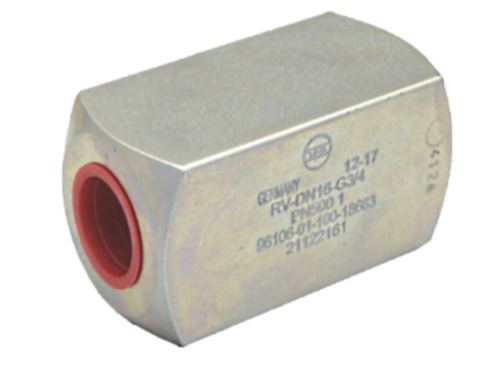

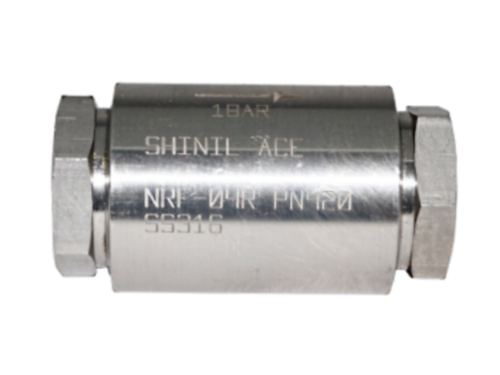

High Pressure Check Valves. Prevents reverse flow to protect pumps and equipment. Body in SS316, rated High Pressure (to 420–500 BAR). Material selected to suit the medium and pressure.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Specifications
| Size Range | 1/4" to 2" |
|---|---|
| Design | Spring Loaded Type |
| Material | Steel / SS316 |
| Cracking Pressure | 0.5 BAR / 1 BAR / 2 BAR |
| Working Pressure | Up to 420BAR |
| Connections | BSPP / NPT / Compression End |
| Applicable Medium | Industrial Water, General Oil |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Hydraulic power units and manifolds
- Load-holding and isolation duties
- Test rigs and high-pressure instrumentation
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct information
Non return valves or check valves are spring loaded valves that installed on hydraulic system to allow fluids flow in a single direction only. There is one inlet and one outlet for check valves which will show a directional marking on the valve body . This is to ensure that users install the check valves in correct direction wherein fluids will flow into inlet and flow out from outlet. A minimum working pressure is required in the fluids system for check valves to work. Inteva series check valves are metal closing check valve applicable in hydraulic oil applications. It can withstand up to 420 BAR working pressure . The available connections are in compression end connection and threaded connection which is NPT and BSPP .
Product information
1. Specifications:
High pressure check valves or non return valves are valves that allow fluids to flow in one direction only. It also mean that it is use to prevent the return flow of the fluids. Check valve is a two opening valve where one for fluids to enter and one for fluids to flow out. There is a directional arrow that marked on the valve body to show the valve inlet and outlet. For check valve, it will need a cracking pressure to push the poppet for fluids to flow through. For more details, please refer to inteva.es/check-valves.
For Inteva series check valves, it was designed as metal closing system and made accordance to European Directive 97/23/EC. It is suitable for oil hydraulic applications in marine and offshore industry.

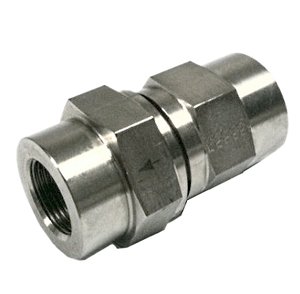

INTEVA Check Valve
2. Material:
High pressure check valve can be available in Steel (EN-10277-3) and Stainless Steel (AISI 316) material.
3. Size Range & Pressure Rating:
The available sizes for high pressure check valve are ranged from 1/4" to 2". The working pressure is up to 420 Bars
4. Connection Type:
The two available connections for high pressure check valve is NPT (National Pipe Thread) and BSPP (British Standard Pipe Parallel). For more information about check valve, please refer to en.wikipedia.org/wiki/Check_valve .
MHA Check Valve
5. Applications:
High Pressure Check Valves connection available in National Pipe Thread (NPT) and a British Standard Pipe Parallel threaded end (BSPP). The working temperature of the high pressure check valve can reach up to 150°C, depending on the o-ring material applied during the valve assembly.
High pressure check valve is used in the following applications:
- Oil and gas
- Petrochemical
- Power Plants
- Heating systems
- Ventilating systems
- Air conditioning system
6. Installation of High Pressure Check Valves:
Various techniques can be used to complete the installation process:
- First step is to inspect the inner wall to remove any possible production materials. There should be no foreign material inside the check valve, as this could cause it to malfunction.
- It is necessary to test the valve’s operation by pushing it away from the seating surface. The most crucial thing is to make sure it can freely move.
- Inspection of both ends to ensure that there are no burrs or edges that could cause resistance during the sealing process is critical.
- To improve functionality or workability, put the check valve in the opposite direction of the flow.
- The cover must be orientated to the top if the valve is installed horizontally or vertically.
Checking flow control of a valve allows unrestricted flow in one direction while restricting flow in the opposing direction.
← To go back to High Pressure Valves page
FAQ Of High Pressure Check Valves
What is the size range of check valves?
The size range of needle valves is from 1/4 inches to 2 inches.
What is the working pressure for check valves?
The high-pressure check valve's standard working pressure is 420 bars for sizes 1/4” to 1”, while pressure falls to 315 bars for sizes 1 1/4” to 2” as valve sizes increase.
What is the function of a check valve?
High pressure check valve is used to ensure flow in one direction and prevents backflow.
Which fields/ industries would apply check valves?
Various applications of high pressure check valves: - Oil and gas - Petrolchemical - Powerplants - Heating systems
How a check valve be installed? Vertically or horizontally?
A check valve can be installed in a vertical or horizontal pipeline.
What is the working temperature that a check valve can withstand?
The working temperature of the high pressure check valve will reach 150°C, depending on the O-ring material used during the valve assembly.
