Products
Clamps
Tube and pipe clamps secure hydraulic and instrumentation lines against vibration, thermal movement and pressure surges — protecting connections from fatigue and keeping …
Overview
Tube and pipe clamps secure hydraulic and instrumentation lines against vibration, thermal movement and pressure surges — protecting connections from fatigue and keeping installations tidy and serviceable. Chuan Kok stocks Stauff and Tubeclo clamp systems to DIN 3015, in polypropylene, polyamide and aluminium, with matching rails, cover plates and weld plates.
Buying from Chuan Kok
Clamp bodies, weld plates, cover plates, hex bolts and rails held ex-stock across the DIN 3015 range. Tell us your tube OD and series and we'll quote the complete assembly.
Standards & materials
- DIN 3015 Part 1 (Standard Series)
- DIN 3015 Part 2 (Heavy Series)
- DIN 3015 Part 3 (Twin Series)
Typical applications
- Securing hydraulic tube runs on rigs, vessels and machinery
- Grouping and routing multiple lines neatly
- Damping vibration to extend connection life
- Cable and hose support
About this range
For more information about the products that we have, please see below:
Stauff Clamps
| Body Material | POLYPROPYLENE (PP) / POLYAMIDE (PA) / ALUMINIUM (AL) |
|---|---|
| Accessories Material | STAINLESS STEEL SS316 / GALVANIZED STEEL |
| Size | STANDARD (6 - 102MM) / HEAVY (6 - 406MM) / TWIN (6 - 42MM) |
Tubeclo Tube Clamps
| Body Material | POLYPROPYLENE (PP) / POLYAMIDE (PA) / ALUMINIUM (AL) |
|---|---|
| Accessories Components | TOP COVER PLATE, BOTTOM WELD PLATE, HEXAGON BOLT |
| Temperature | -30˚C to +90˚C, -40˚C to +120˚C, Up to 300˚C |
| Size | STANDARD (6 - 102MM) / HEAVY (6 - 406MM) / TWIN (6 - 42MM) |
Stauff ACT Clamps
| Body Material | FLAME-RETARDANT PPV0 |
|---|---|
| Accessories Material | STAINLESS STEEL V4A / W55 |
| Size | STANDARD (6 - 25.4MM) / TWIN (6 - 25.4MM) |

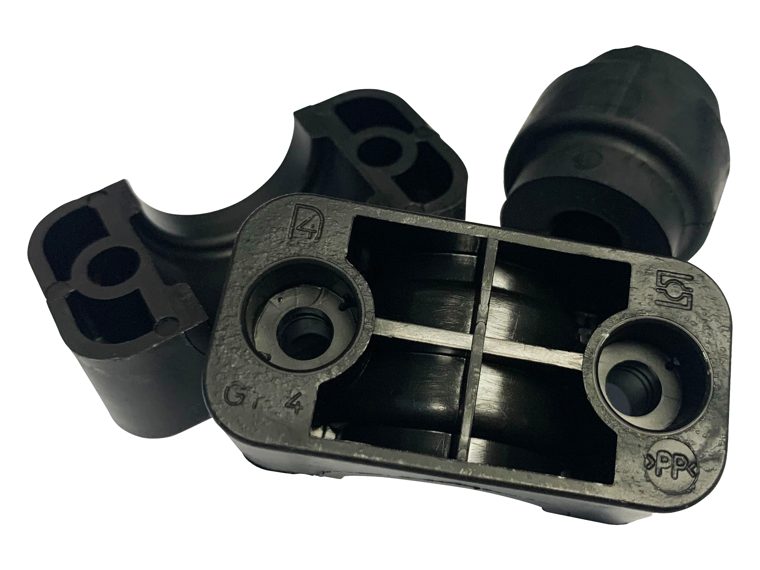

Tubeclo Rubber Insert Clamps
| Body Material | POLYPROPYLENE / POLYAMIDE / THERMOPLASTIC ELASTOMER RUBBER INSERT |
|---|---|
| Accessories Material | STAINLESS STEEL SS316 / GALVANIZED STEEL |
| Size | STANDARD (6 - 32MM) / HEAVY (6 - 172MM) |
Having a hard time finding the right parts?
We stock 15,000+ line items and can source specials nobody else can. Get a quotation within 2 hours.
