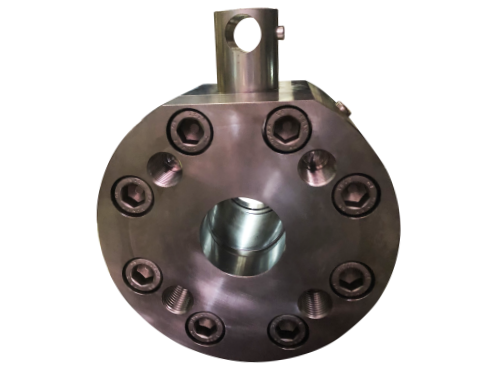

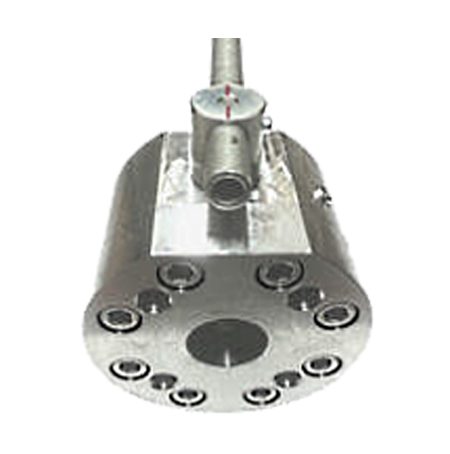

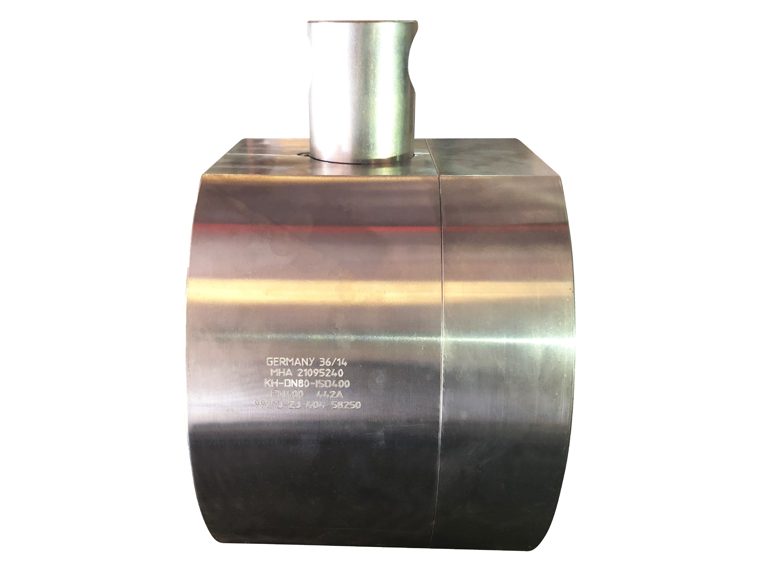

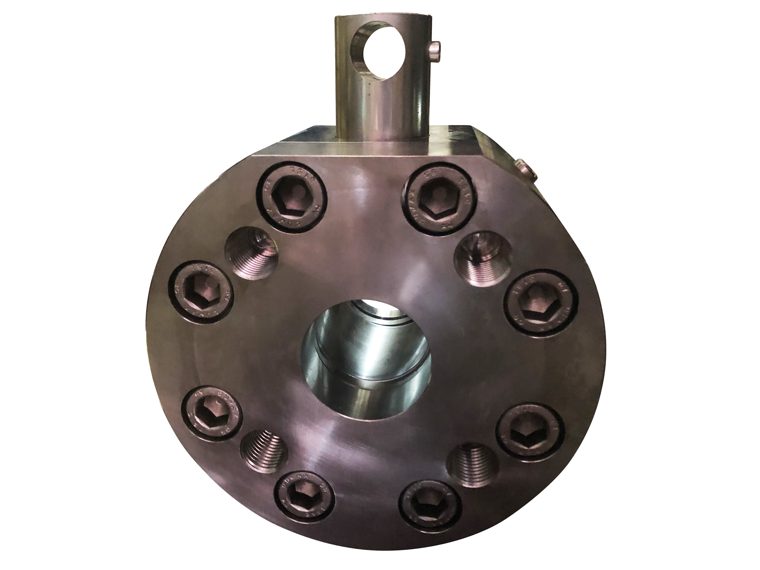

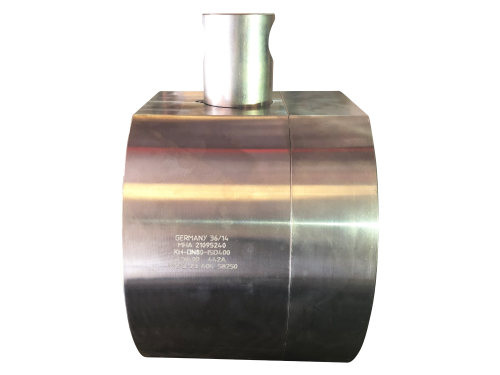

ISO6164 Ball Valve
ISO6164 Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in SS316, built to recognised international standards. Material selected to suit the medium and pressure.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Specifications
| Size | 1/2" to 3" |
|---|---|
| Design | Quarter Turn Type Ball Valve |
| Material | Stainless Steel SS316 |
| Working Pressure | 250 BAR 400 BAR |
| Connections | ISO 6164 |
| Applicable Medium | General Hydraulic Oil (Gas Application on request) |
| Temperature Range | -10°C to +100°C |
| Origin | Germany |
| Ball Seats | POM standard option, other materials on request |
| Stem and Adaptor Sealing Materials | NBR standard option, other materials on request |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Hydraulic power units and manifolds
- Load-holding and isolation duties
- Test rigs and high-pressure instrumentation
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct information
ISO 6164 ball valves are made to ISO 6164-1 (ISO250) and ISO 6164-2 (ISO400) standards. Two-way high pressure ball valves have a round shape body and are used as on/off flow devices in hydraulic applications. For ISO 6164 ball Valves, t he available size is from DN13 to DN80 , which is from 1/2” to 3” . The working pressure is available from 100 bar to 400 bar , depending on the valve diameter. The total working pressure of the pipeline determines the final maximum pressure for the flange connection.
For enquiries regarding ISO 6164 Ball Valves, please contact us and be assured that we will attend to your enquires as soon as possible.
Product information
1. Introduction:
ISO 6164 is a valve design to use in high pressure hydraulic systems. The valve working pressure determines by valve body size and when the body size goes bigger, the valve operation pressure goes lower. The final overall running pressure is determined by pipe or tube rating and flange connected. The working temperature ranges from -10°C to 100°C, subjected to material combination of the complete ball valve.
| Model Type (ISO 6164-1) | Unit Weight (kg) | Working Pressure PN (bar) |
|---|---|---|
| KH-DN13-ISO250 | 2.90 | 350 |
| KH-DN19-ISO250 | 6.80 | 350 |
| KH-DN25-ISO250 | 7.20 | 315 |
| KH-DN32-ISO250 | 12.50 | 250 |
| KH-DN38-ISO250 | 16.60 | 250 |
| KH-DN51-ISO250 | 24.90 | 250 |
| KH-DN56-ISO250 | 26.60 | 250 |
| KH-DN63-ISO250 | 36.90 | 250 |
Table 1: ISO 250 Ball Valve Series
| Model Type (ISO 6164-2) | Unit Weight (kg) | Working Pressure PN (bar) |
|---|---|---|
| KH-DN13-ISO400 | 2.90 | 400 |
| KH-DN19-ISO400 | 6.80 | 400 |
| KH-DN25-ISO400 | 7.20 | 400 |
| KH-DN32-ISO400 | 12.50 | 400 |
| KH-DN38-ISO400 | 16.60 | 400 |
| KH-DN51-ISO400 | 24.90 | 400 |
| KH-DN56-ISO400 | 26.60 | 400 |
| KH-DN63-ISO400 | 42.53 | 400 |
| KH-DN70-ISO400 | 43.00 | 315 |
| KH-DN80-ISO400 (PN100) | 51.00 | 100 |
| KH-DN80-ISO400 (PN400) | 63.00 | 400 |
Table 2: ISO 400 Ball Valve Series
2. Application:
The ISO 6164 ball valve can be used in a variety of industries:
- Pipeline construction
- Machine tool
- System engineering
- Offshore sector
- Marine hydraulic
- Power units
- Oil & Gas refinery rings
3. Certification:
The following test facilities are by MHA valve:
| Test mediums |
|
| Test Pressures |
|
| Test Temperatures | 20°C – 500°C |
Table 4: Test Facilities by MHA-Zentgraf
MHA performs the following technical approvals and issues certificates:
- Test certificates according to DIN EN 10204 for ball valves: 3.1, 2.2
- Material certificates according to DIN EN 10204: 3.1, 3.2, 2.2
| Certificate Type | Types of Test Certificates | Content of Certificates | Confirmation of Certificate by |
|---|---|---|---|
| 2.2 | Test Report | Confirmation of accordance to the order stating the results of non-specific tests | The manufacturer |
| 3.1 | Inspection Certificate 3.1 | Confirmation of accordance to the order stating the results of specific tests | Authorized manufacturer inspection representative (independent party from the production division) |
| 3.2 | Inspection Certificate 3.2 | Confirmation of accordance to the order stating the results of specific tests | Authorised manufacturer inspection representative (independent party from the production division) and the authorised buyer inspection representative or the inspection representative who is authorised by official legal regulation |
← To go back to High Pressure Valves page
FAQ Of ISO 6164 Ball Valves
What is the size range of ISO 6164 ball valves?
The size range of needle valves is from 1/2 inches to 3 inches.
What is the working pressure for ISO 6164 ball valves?
The working pressure ranges from 100 bar to 400 bar, depending on the diameter of the valve.
What is the function of ISO 6164 ball valves?
ISO 6164 ball valves, two-way high pressure ball valves, serve as on/off flow devices for hydraulic applications.
What is the range of working temperature a check valve can withstand?
The working temperature ranges from -10°C to 100°C, subjected to material combination of the complete ball valve.
How to stop a ball valve leak?
A smaller ball valve can be used to equalize the pressure until a larger ball valve is activated at full differential pressure. As opposed to a pipe installation approach, a combined bypass inside the flange valve body has less leakage points.
Which fields/ industries would apply ISO 6164 ball valves?
ISO 6164 ball valves are utilised in various industries such as:
- Pipeline construction
- Machine tool
- System engineering
- Offshore sector
- Marine hydraulic
- Power units
- Oil & Gas refinery rings
Specifications
Technical data
| Size | 1/2" to 3" |
|---|---|
| Design | Quarter Turn Type Ball Valve |
| Material | Stainless Steel SS316 |
| Working Pressure | 250 BAR 400 BAR |
| Connections | ISO 6164 |
| Applicable Medium | General Hydraulic Oil (Gas Application on request) |
| Temperature Range | -10°C to +100°C |
| Origin | Germany |
| Ball Seats | POM standard option, other materials on request |
| Stem and Adaptor Sealing Materials | NBR standard option, other materials on request |
| Model Type (ISO 6164-1) | Unit Weight (kg) | Working Pressure PN (bar) |
|---|---|---|
| KH-DN13-ISO250 | 2.90 | 350 |
| KH-DN19-ISO250 | 6.80 | 350 |
| KH-DN25-ISO250 | 7.20 | 315 |
| KH-DN32-ISO250 | 12.50 | 250 |
| KH-DN38-ISO250 | 16.60 | 250 |
| KH-DN51-ISO250 | 24.90 | 250 |
| KH-DN56-ISO250 | 26.60 | 250 |
| KH-DN63-ISO250 | 36.90 | 250 |
| Model Type (ISO 6164-2) | Unit Weight (kg) | Working Pressure PN (bar) |
|---|---|---|
| KH-DN13-ISO400 | 2.90 | 400 |
| KH-DN19-ISO400 | 6.80 | 400 |
| KH-DN25-ISO400 | 7.20 | 400 |
| KH-DN32-ISO400 | 12.50 | 400 |
| KH-DN38-ISO400 | 16.60 | 400 |
| KH-DN51-ISO400 | 24.90 | 400 |
| KH-DN56-ISO400 | 26.60 | 400 |
| KH-DN63-ISO400 | 42.53 | 400 |
| KH-DN70-ISO400 | 43.00 | 315 |
| KH-DN80-ISO400 (PN100) | 51.00 | 100 |
| KH-DN80-ISO400 (PN400) | 63.00 | 400 |
| Test mediums | Hydraulic oil Water Air Helium Nitrogen |
|---|---|
| Test Pressures | 0.6 MPa to 40 MPa air 0.01 MPa to 650 MPa water 20 MPa nitrogen Helium leak test |
| Test Temperatures | 20°C - 500°C |
| Certificate Type | Types of Test Certificates | Content of Certificates | Confirmation of Certificate by |
|---|---|---|---|
| 2.2 | Test Report | Confirmation of accordance to the order stating the results of non-specific tests | The manufacturer |
| 3.1 | Inspection Certificate 3.1 | Confirmation of accordance to the order stating the results of specific tests | Authorized manufacturer inspection representative (independent party from the production division) |
| 3.2 | Inspection Certificate 3.2 | Confirmation of accordance to the order stating the results of specific tests | Authorised manufacturer inspection representative (independent party from the production division) and the authorised buyer inspection representative or the inspection representative who is authorised by official legal regulation |
