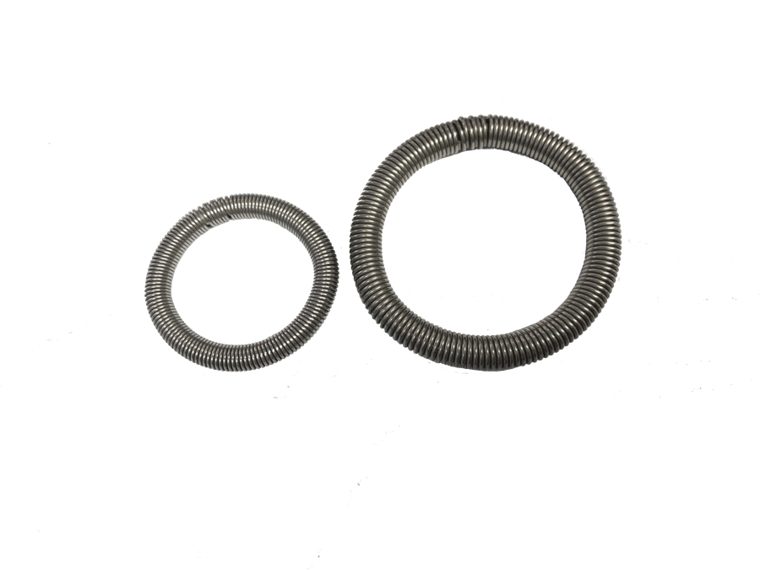

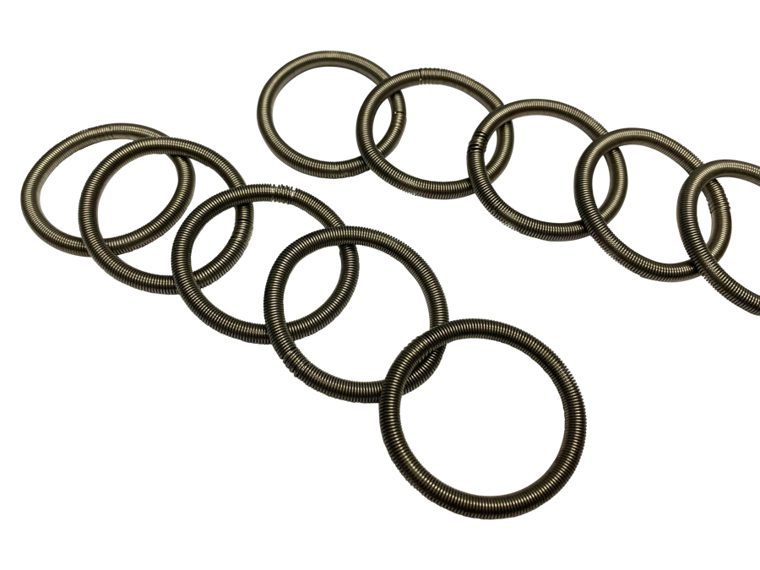

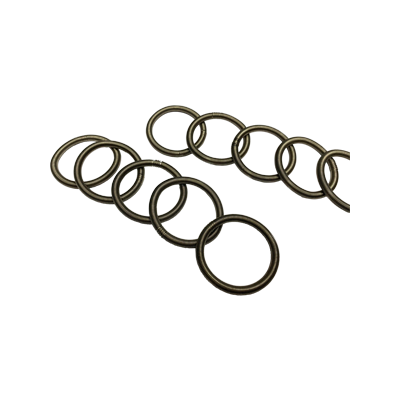

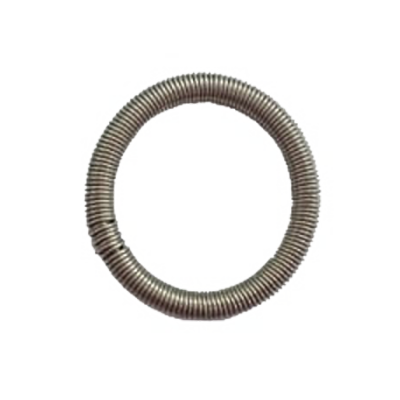

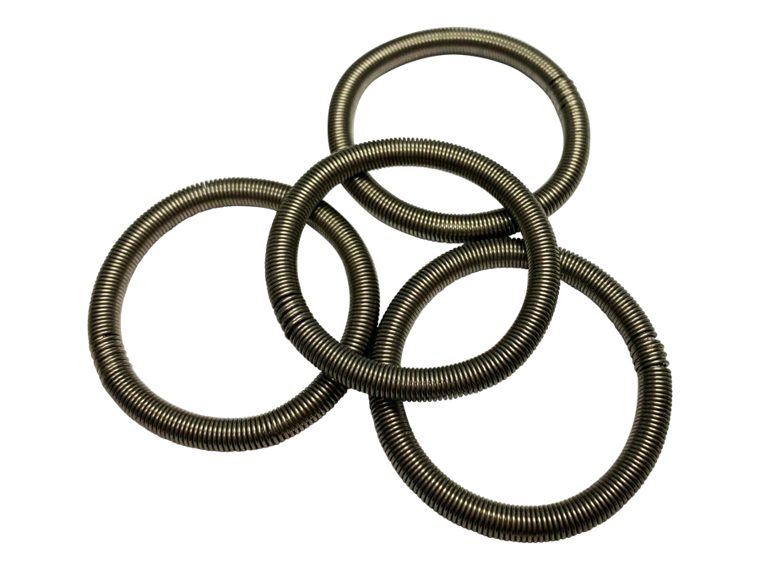

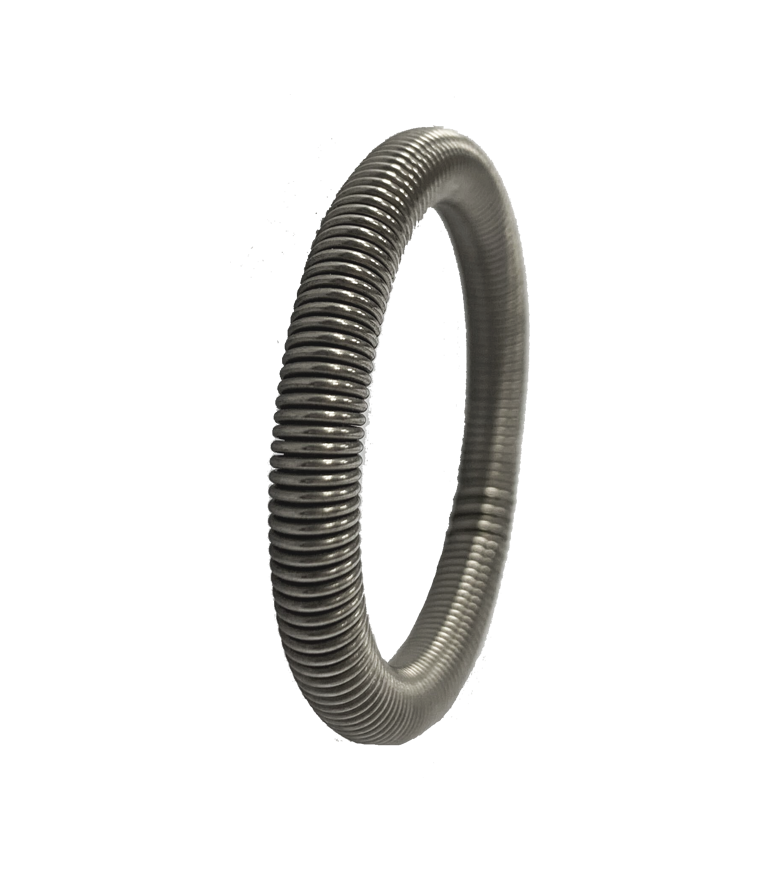

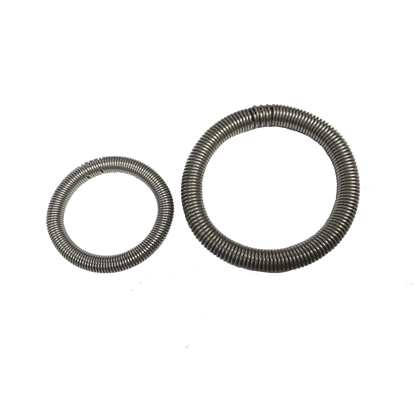

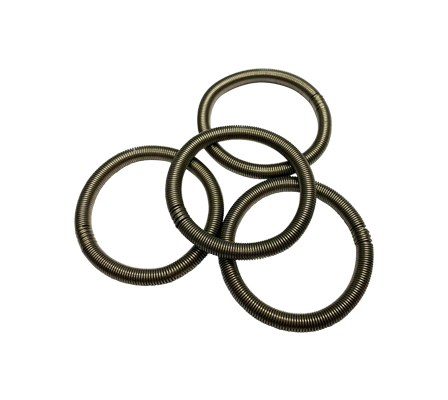

GS Hydro Retain Ring
GS Hydro Retain Ring — genuine accessory held ex-stock to keep your hydraulic system sealed, clean and monitored.
- Genuine branded parts
- Deep sealing inventory
- Correct size matched to your port
Specifications
| Size Range | 1/2" to 14" |
|---|---|
| Design Standard | ISO6162-2 / ISO6164 |
| Working Pressure | Up to 690 BAR |
| Size Available | Metric size, ANSI 36.10/36.19 pipes size |
| Material | SS302 |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Static and port sealing
- Pressure monitoring and testing
- System maintenance
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct information
Retain Rings are used for GS Hydro Retain Ring Flange system. The flanges are made to suit SAE J518 standard and the material for the retain ring include steel and stainless steel SS302.
The Retain Ring and is used in a wide range of hydraulic applications, especially where piping without welding is required. Industries using the GS Retain Ring System include Marine, Offshore and Mining.
Product information
1. Assembly Instructions of GS Hydro Retain Ring Flange:
1. The assembly instruction of GS Hydro Retain Ring:
Step 1: A groove is prefabricated on the pipe
Step 2: The flanges are placed onto the pipe
Step 3: The retain rings are installed into the groove.
Step 4: A bonded seal is placed in-between the pipe ends
Step 5: The flanges are hand tightened in a cross order. Do not tighten the bolts in a clock or anticlockwise manner
Step 6: Tighten the bolts according to the torque chart.
FAQ Of GS Hydro Retain Ring
What is the function of GS retain ring?
GS retain ring allows pipes to connect without any welding required and provides an easy and fast method to connect pipes with completely leak-free high levels of joint integrity.
What is the maximum working pressure GS retain ring can withstand?
GS retain ring can withstand 420 bar in piping system while as high as 690 bar under specific piping applications.
What is the size range of GS retain ring?
The size range of GS retain ring is from 1/2 inches to 14 inches.
What are the design standards of GS retain ring in accordance with?
The design standards of GS retain ring are in accordance with ISO6162-2 and ISO6164.
Which fields/ industries does GS retain ring apply?
The GS retain ring is used in a wide range of industries, including pulp and paper, metals and mining, marine and offshore, sugar, and testing.
