Tubeclo Clamps

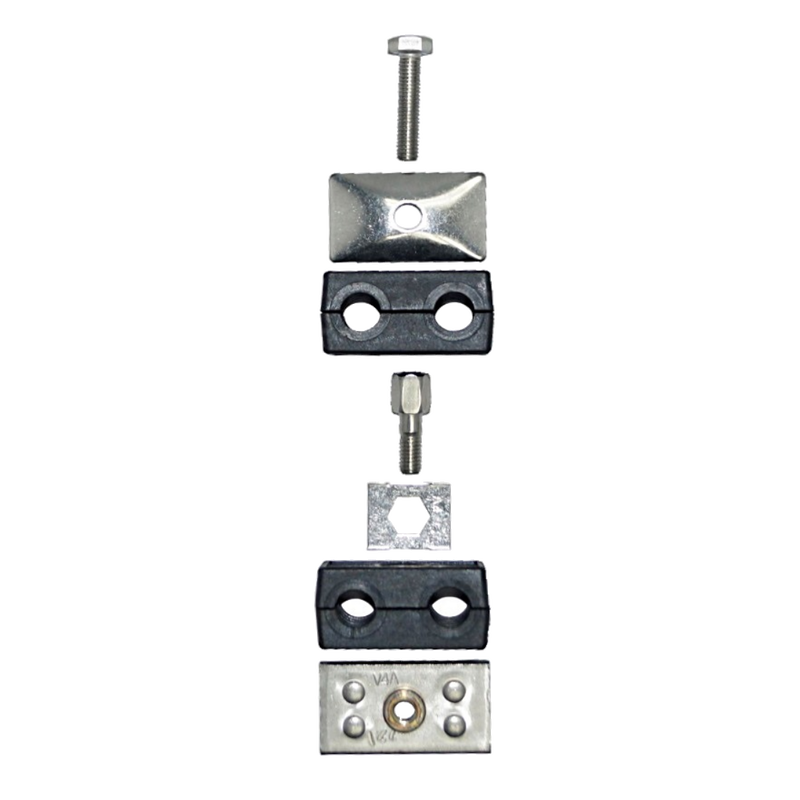

Clamps are useful equipment for fastening devices together while working to prevent objects from moving. Tubeclo Clamps are made of plastic and have a square shape with a ribbed bore that provides a tight grasp on the item. Tubeclo clamps are encompassed in four parts: clamp shell body, cover plate, hexagon head bolts , and weld plates . Tubeclo clamps are easy to set up and useful for a variety of applications since they serve as fittings for different industrial machines. Tubeclo clamps, for example, are appropriate for cable trays, pipes, hoses, and tubes.

Tubeclo clamp is made in accordance with the DIN 3015 standard . It is used to minimize the harmful effects of mechanical shock and strong vibrations in the hydraulic system. Tubeclo clamps contribute to occupational safety and environmental protection. It provides optimum flexibility by combining single , twin , and heavy clamp designs.

Tubeclo Tube Clamp — Heavy Series, Double Stack, Polyamide Material

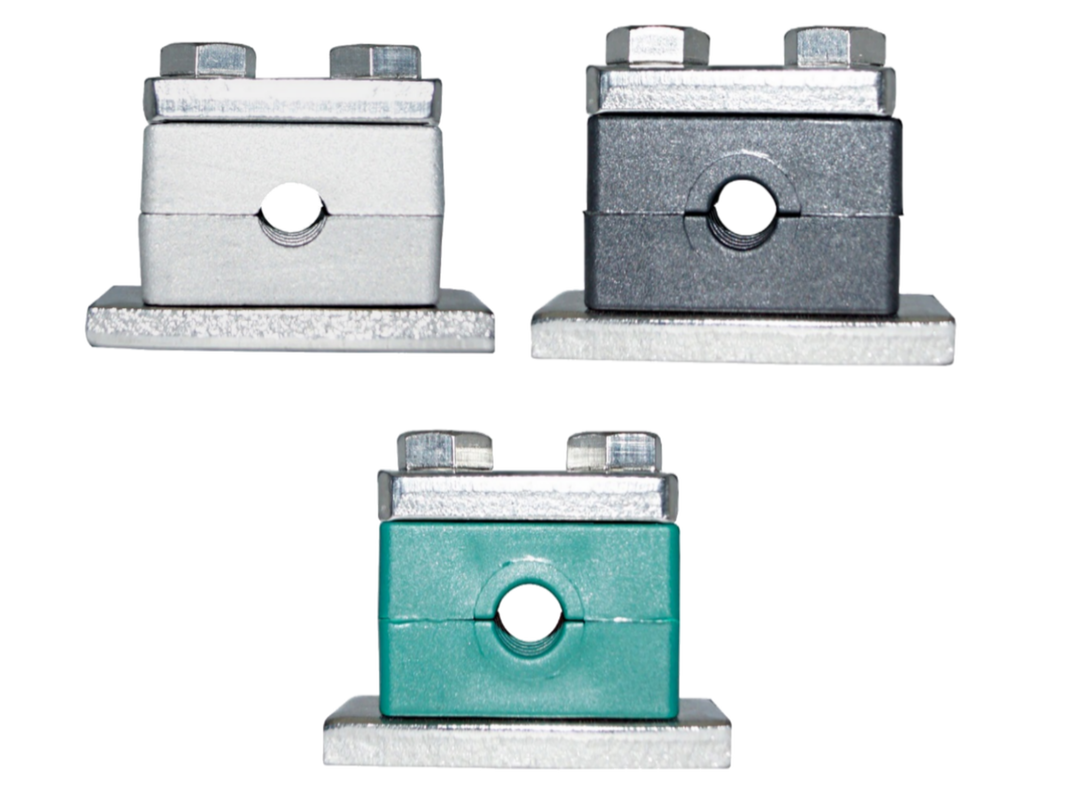

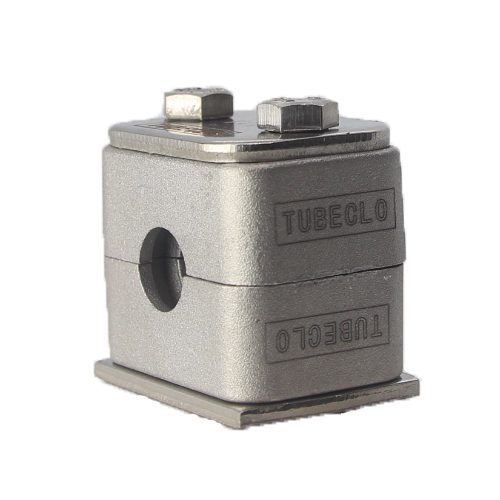

Tubeclo clamps are commonly made up of 3 materials which are Polypropylene, Polyamide, and Aluminium. A full clamp body set comprises two identical clamp halves, the top and bottom halves. The combination of these materials leads to great working performance in terms of gripping, stability, and temperature range system. The Polypropylene material, PP (Green) can withstand temperature pressures ranging from -30 ˚C to +90 ˚C . The Aluminium material, AL (Silver) can tolerate heat up to 300 ˚C , whereas the Polyamide material, PA (Black) has a working temperature pressure range of -40 ˚C to +120 ˚C . These are the details of three materials for tubeclo clamps as following:

Table 1 shows Clamp Body Design and Colour.

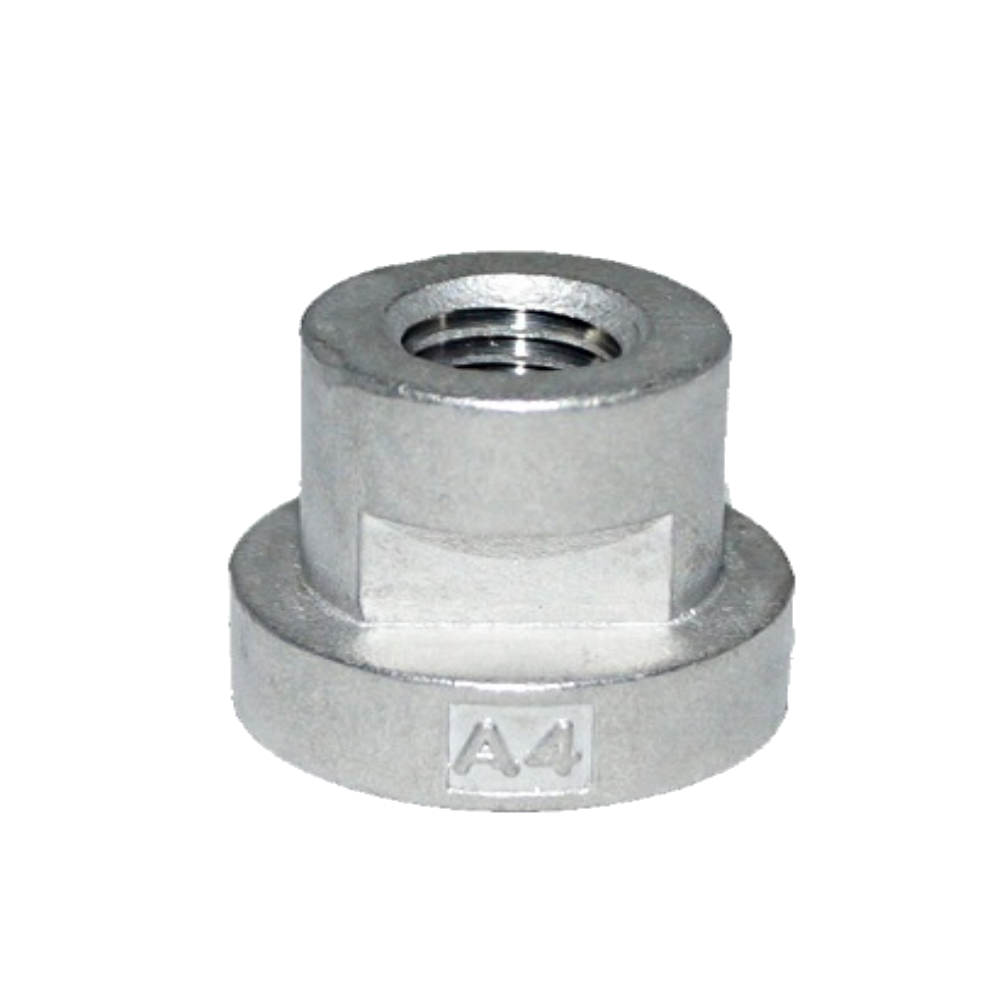

On the other hand, the accessories material and surface finishing are available in steel and stainless steel material.

Table 2 shows Accessories Materials and Code.

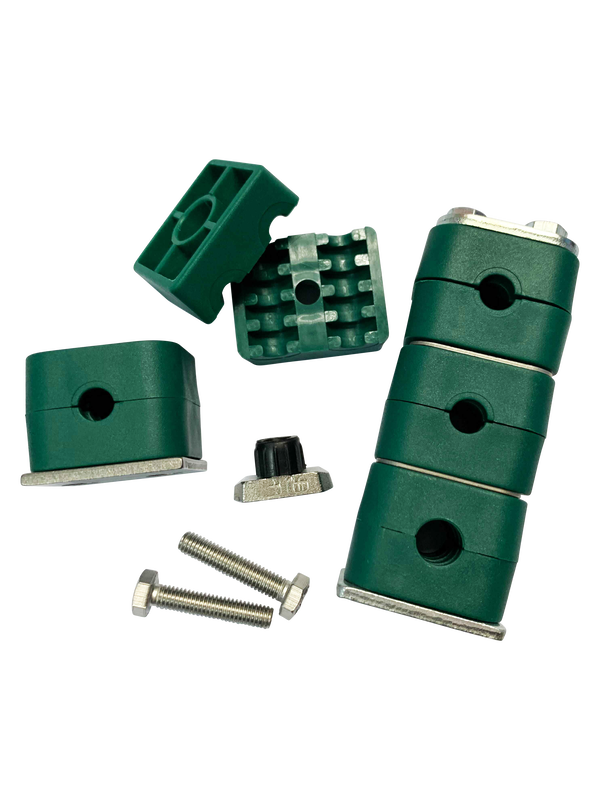

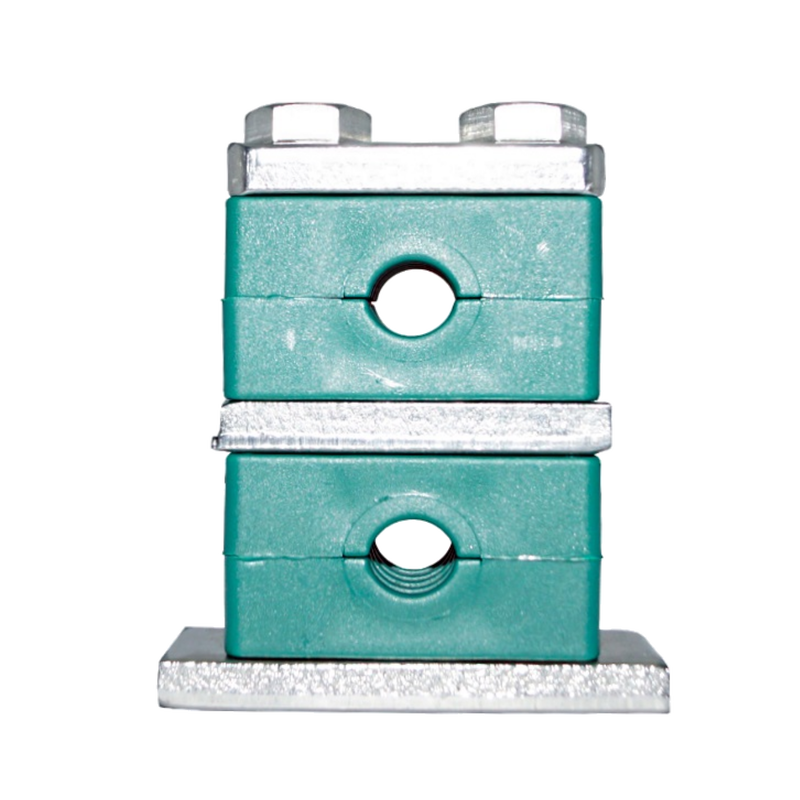

Tubeclo Tube Clamp — Heavy Series, Double Stack, Polypropylene Material

Tubeclo clamps are also known as pipe clamps and hydraulic brackets. The core function of a tube clamp is to hold things in place without movement until the work is done. A wide range of tubeclo clamp brackets are offered to meet the needs of various industries. In particular, these are the industries where tube clamps are most commonly used:

• Shipbuilding - The construction of an oil tanker, cruise ship, cargo ship, or luxury private yacht. Tubeclo clamps provide ultimate reliability in wind, waves, and poor weather while also enhancing passenger comfort through optimal vibration and noise reduction.
• Oil and Gas Production - The tubes or hoses that run above and below water have to be able to withstand extreme loads on a continuous basis. Salt water, oil grease, wind and extensive temperature variations all take their toll on fastening systems, and installation clamp assembly helps to reduce maintenance costs and optimize overall line operation.
• Railway Rolling Stock Construction - Passenger trains, trams, and subway trains are all sophisticated transportation systems with numerous hydraulic, water, and electrical lines. Tubeclo Clamps assure that every supply network line is installed properly, and they can be tailor to project requirements, such as in the form of a milling or injected design. For example: European railway standard, EN45545.
• Plant Construction & Industrial Hydraulics - High performance hydraulic systems and trustworthy power supply are important for industrial machinery when operating efficient production operations on a continuous basis. The tubeclo clamps installation ensures that the hydraulic line and electrical cable installation at the facilities is adequately secured and maintained while taking up the least amount of space.
• Mining - Tube and hose lines are continuously subjected to extreme pressure during tunnel construction or deep mining. Tube clamping reduces maintenance costs and facilitates line operating in confined spaces. It has been utilized in the Panama Canal as well as European railway tunnels.

Tubeclo clamps are designed with maximum and minimum weights that the user may adjust according to the tube size and clamp design for the machinery.

Table 3 shows maximum Load in a straight direction pipe for Standard Series Clamps.

Table 4 shows maximum load in a straight direction pipe for Heavy Series Clamps.

Table 5 maximum load in straight direction Pipe for Twin Series Clamps.

For tubeclo clamps installations, below table was a recommended distance between clamps.
