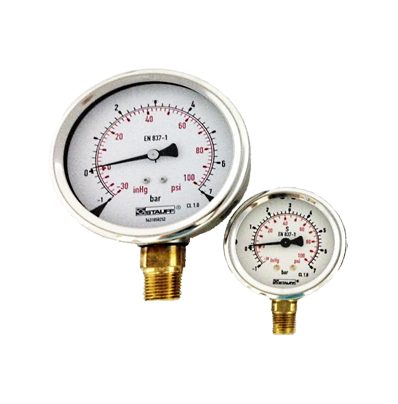

Stauff Pressure Gauges
Stauff Pressure Gauges — genuine Stauff instrumentation for monitoring hydraulic system condition, with robust construction for the marine and industrial environment.
- Genuine branded parts
- Deep sealing inventory
- Correct size matched to your port
Specifications
| Size Range | (MM) : 63MM and 100MM (Inch) : 2 1/2" and 4" |
|---|---|
| Design Standard | EN 837-1 |
| Material | Stainless Steel SS316 (Casing) / Brass (Bottom) |
| Pressure Range | Up to 700 BAR |
| Applicable Medium | General Hydraulic Oil and Gaseous media compatible with Copper based Alloys |
| Glass | Acrylic Sight Glass |
| Medium | Glycerine Filled as an option |
| Scales | Standard Dual Scales with pressure indication in BAR and PSI |
| Ambient Temperature Range | -20°C to +60°C |
| Media Temperature Range | +60°C |
| Accuracy for SPG-063 | 1.6 (+/- 1.6 FS as per EN 837-1) |
| Accuracy for SPG-100 | 1.0 (+/- 1.0 FS as per EN 837-1) |
| Origin | Germany |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Static and port sealing
- Pressure monitoring and testing
- System maintenance
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct information
Pressure Gauges are pressure measuring devices. There are used on equipment for monitoring and ensuring the smooth functioning and operating safety of systems. We carry Stauff Pressure Gauges with various connection ports to fit many different installation and pressure requirements. Pressure Gauges can be calibrated with additional costs.
Product information
1. What is Stauff Pressure Gauges?
Stauff Pressure gauges are devices used to measure pressures in hydraulic systems and made in accordance to EN 837-1 European standards . It is applicable for hydraulic oil and gaseous media. The reading measurements are shown on the face of the gauge. Measuring pressure on equipment is essential for monitoring and providing the smooth functioning and operating safety of the system.

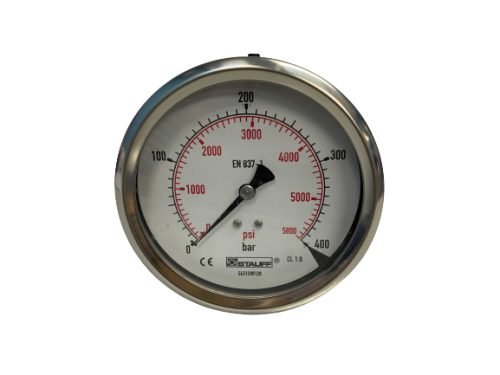

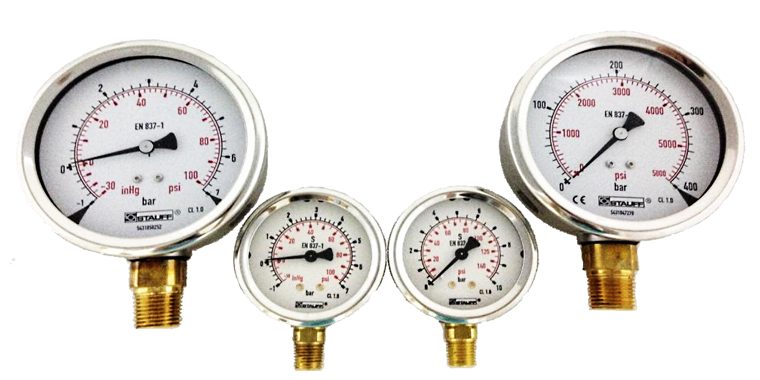

A pressure gauge has two parts, the casing and the connection point . Usually, the material for the casing is stainless steel SS316 and the material for the bottom or back connection is brass. The lenses are made of acrylic sight glass. The size of the casing is usually available in 63mm (2 1/2 Inches) and 100mm (4 Inches).

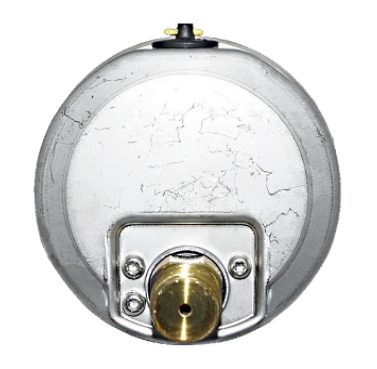

Pressure Gauge casing material (Stainless Steel) & connection (Brass)
2. Connection Type:

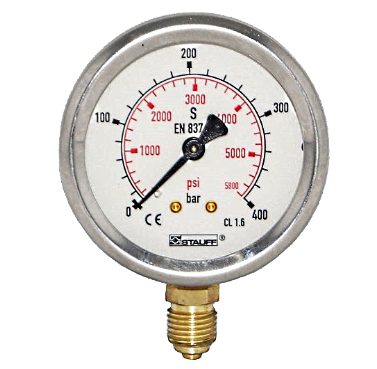

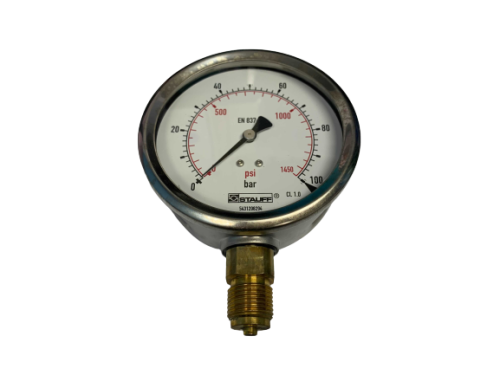

There are two different connection directions, stem (bottom) mounting and panel (back) mounting . The connection direction is dependent on the system design. Connection wise, 1/4"BSPP & 1/4"NPT are usually used for gauges with size diameter 63mm, while 1/2"BSPP and 1/2"NPT are available for size diameter 100mm.
3. Reading Range:

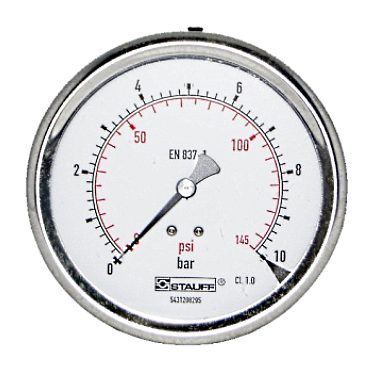

Pressure gauges come with standard dual scales with pressure indication in kilopascal (bar) and poun ds per square inch (psi) . The gauges are available in different measuring ranges to suit different installation needs.
4. Features:
There are two types of gauges are available; dry dial gauge and glycerine filled gauge . Glycerine gauges reduce the effects of vibration and oscillation for needle reading accuracy. It also lubricates the movement and internal parts. In general, it improves reliability and extends the life of pressure gauges.
Gauges are made to accurately read only the middle values. The accuracy range is ±1.6% of the full-scale for dial size 63mm , and ±1.0% of the full-scale for dial size 100mm . In order to make sure the readings on the gauge are accurate, a calibration test can be done by a laboratory. A certificate of calibration will be issued by a laboratory to confirm that the gauge accuracy.
There are also many panel mounting options available for installation of gauges. The options include u-bolt assembly, front flange assembly, rear flange assembly and u-bolt with front flange assembly.
5. Permissible Temperatures:
Pressure gauges work well within a temperature range of -20°C to +60°C / -4°F to +140°F. Out of this temperature range, the gauge readings will be inaccurate.
For more information about pressure gauges and pressure measurement, please refer to en.wikipedia.org/wiki/Pressure_measurement .
FAQ Of Stauff Pressure Gauges
What are the sizes of pressure gauges?
The sizes of pressure gauges are 2 1/2 inches and 4 inches.
What is the function of pressure gauge?
Pressure gauges are utilised to determine and display the pressure rating of a system. It can be used for fluids and gases that are compatible with copper-based alloys.
What is the working pressure of pressure gauges?
The working pressure that pressure gauges can withstand is up to 700 bars.
What are the type of pressure gauges available?
Pressure gauge is categorized into two types which are analogue pressure gauge and digital pressure gauge.
How many different types of analogue pressure gauge connection ports?
Stem (bottom) mounting and panel (back) mounting are the two types of connection ports.
How do we know if a pressure gauge is accurate?
A calibration test can help to determine and maintain the accuracy of the pressure measurement and hence maintain its quality and to ensure the pressure gauge can function properly.
Specifications
Technical data
| Size Range | (MM) : 63MM and 100MM (Inch) : 2 1/2" and 4" |
|---|---|
| Design Standard | EN 837-1 |
| Material | Stainless Steel SS316 (Casing) / Brass (Bottom) |
| Pressure Range | Up to 700 BAR |
| Applicable Medium | General Hydraulic Oil and Gaseous media compatible with Copper based Alloys |
| Glass | Acrylic Sight Glass |
| Medium | Glycerine Filled as an option |
| Scales | Standard Dual Scales with pressure indication in BAR and PSI |
| Ambient Temperature Range | -20°C to +60°C |
| Media Temperature Range | +60°C |
| Accuracy for SPG-063 | 1.6 (+/- 1.6 FS as per EN 837-1) |
| Accuracy for SPG-100 | 1.0 (+/- 1.0 FS as per EN 837-1) |
| Origin | Germany |
