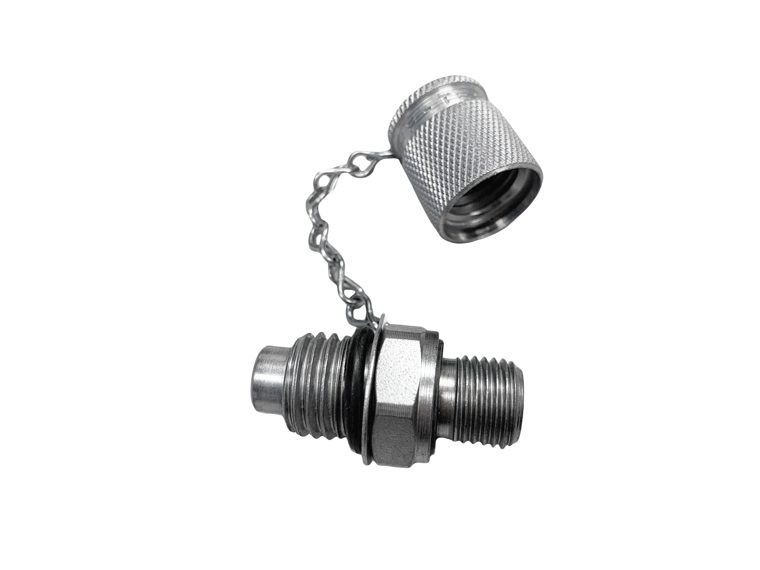

Stauff Test Couplings
Quick-connect (quick-release) hydraulic couplings for fast, tool-free connection and disconnection of pressure lines — poppet or flat-face types to ISO 7241, including Stauff couplings.
- Metric & imperial series
- Genuine brands (Eaton Walterscheid, Stauff)
- Ex-stock, fast quotes
Specifications
| Design Standard | DIN2353 / ISO 8434-1 |
|---|---|
| Material | SS316 Steel |
| Working Pressure | Up to 630 BAR |
| Metal Parts | Steel Zinc / Nickel Plated Stainless Steel 1.4571 |
| Applicable Medium | General Hydraulic Oil and other mineral oil based fluids |
| Temperature Range | NBR Seals: -20°C to +100°C Viton Seals: -20°C to +200°C |
| Origin | Germany |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Hydraulic tube and hose terminations
- Pump, valve and cylinder connections
- Instrumentation and impulse lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct information

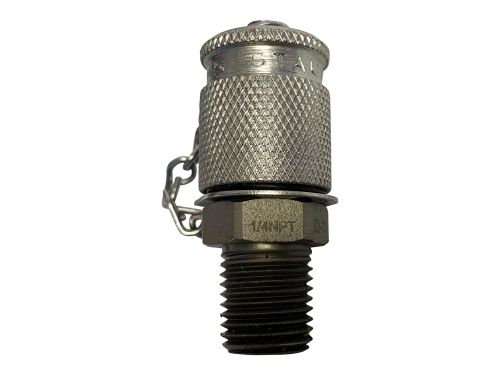

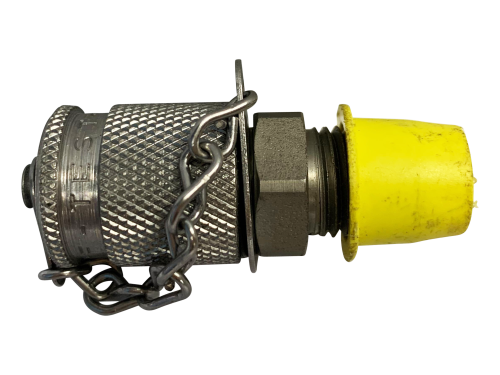

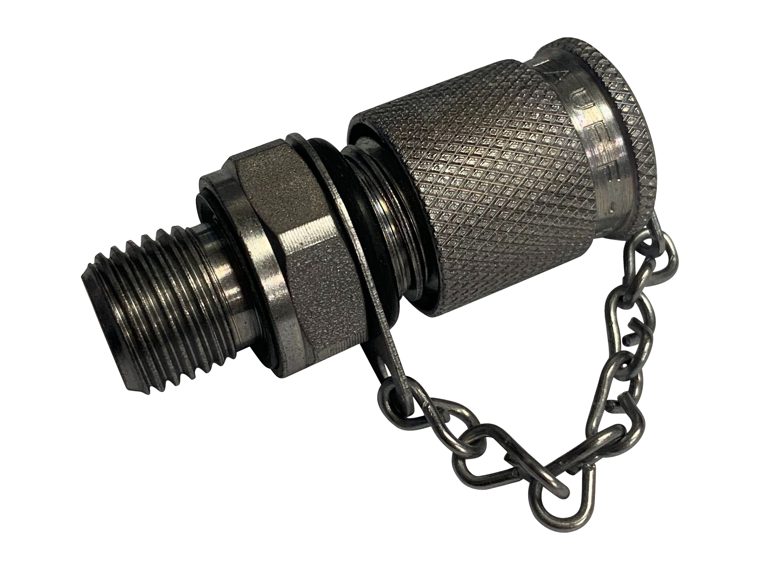

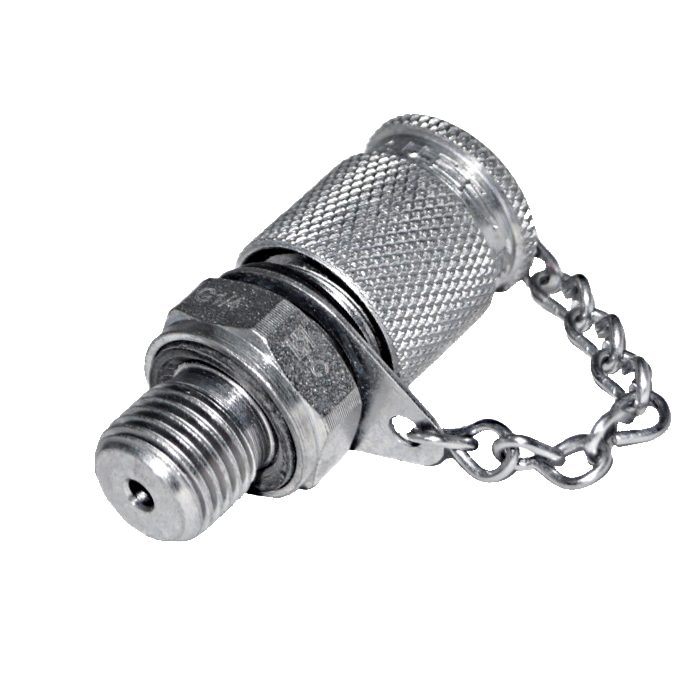

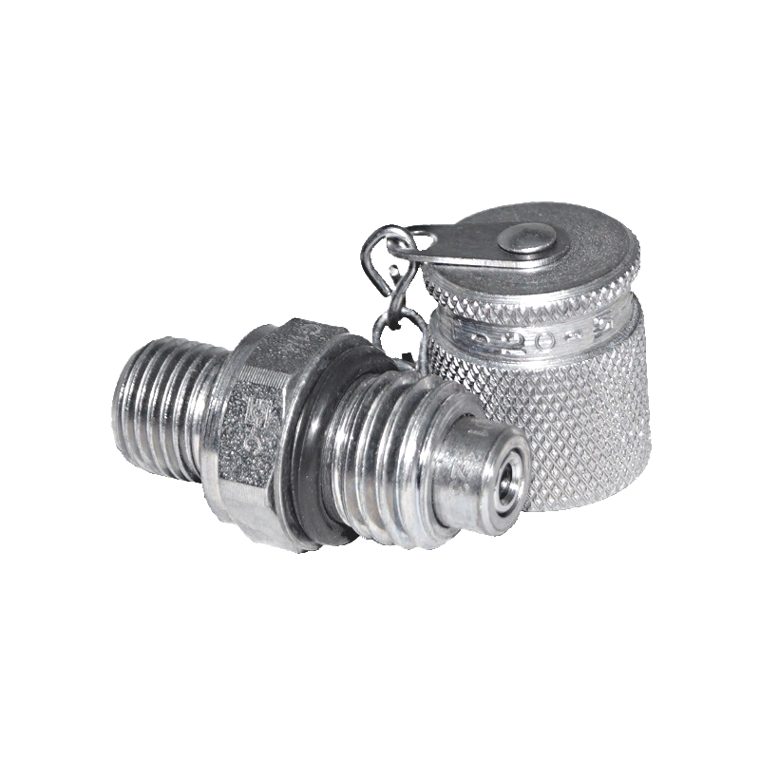

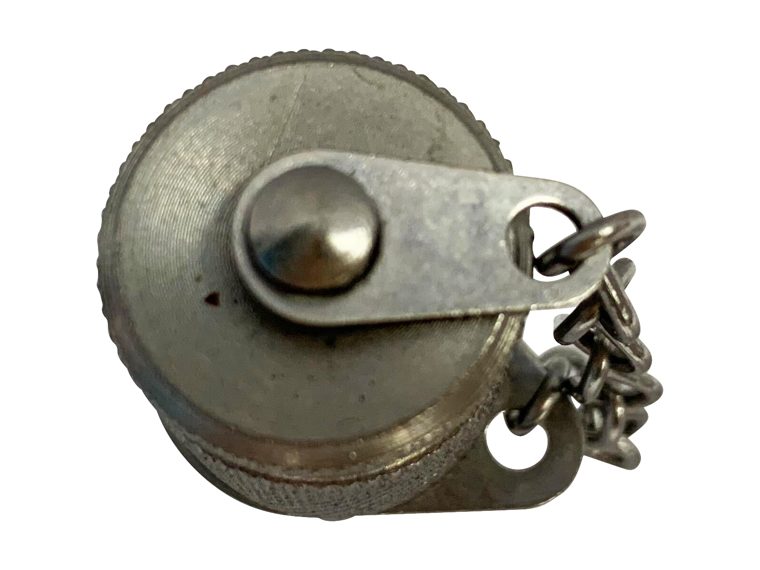

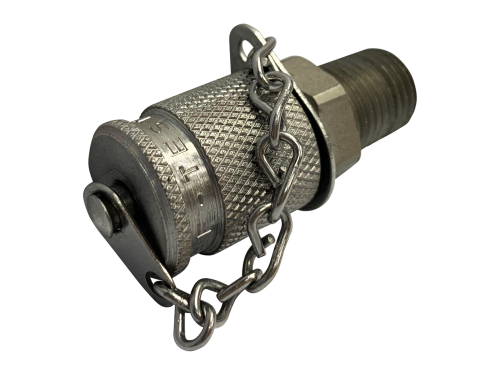

Test Couplings are ports that measuring equipment can be plugged in to monitor and ensure the smooth functioning and operating safety of systems.
They are also used for monitoring and control of pressure, venting and sampling in high and low pressure systems.
FAQ Of Stauff Test Couplings
What is the working pressure of stauff test couplings?
The working pressure of stauff test couplings can withstand up to 9135 psi or 630 bar.
How many sealing types available for stauff test couplings?
There are three common sealing types with different seal materials which are NBR, FKM and EPDM.
What are the functions of stauff test couplings?
Stauff test coupling is used to monitor and control pressure. It usually applies in high and low pressure systems.
What is stauff test coupling made of?
The body of the test coupling is made up of carbon steel and stainless steel SS316. The ball material is stainless steel.
What is the advantage of using test couplings?
Test coupling has reliable and safe sealing of the connection without any risks of leakage or fluid escaping from the system.
What is the working temperature range for NBR, FKM, and EPDM stauff test couplings, respectively?
The working temperature range for NBR, FKM and EPDM are from -20°C to 100°C, -20°C to 200°C and -40°C to 150°C respectively.
Specifications
Technical data
| Design Standard | DIN2353 / ISO 8434-1 |
|---|---|
| Material | SS316 Steel |
| Working Pressure | Up to 630 BAR |
| Metal Parts | Steel Zinc / Nickel Plated Stainless Steel 1.4571 |
| Applicable Medium | General Hydraulic Oil and other mineral oil based fluids |
| Temperature Range | NBR Seals: -20°C to +100°C Viton Seals: -20°C to +200°C |
| Origin | Germany |
