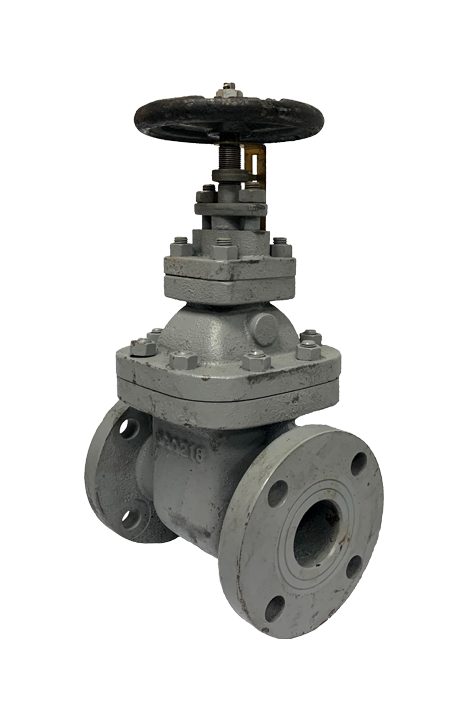

JIS 10K Cast Iron Flange End Gate Valve

JIS 10K Cast Iron Flange End Gate Valve. Rising/non-rising stem; minimal pressure drop when fully open; for isolation duty, operated fully open or fully closed. Body in Cast Iron GG25, rated JIS 10K (PN10). Cost-effective for water and low-pressure utility lines.

Bubble-tight shut-off (soft-seated types)
Corrosion-resistant materials
Ex-stock in common sizes
Actuation options on request

Brand

AF Hydro

Request a Quote Back to Gate Valves

Specifications

Size Range	2” to 4”
Working Pressure	10kg/cm²
Valve Body Material	Cast Iron
Applicable Medium	General Oil, Gas & Water applications
Temperature Range	≤ 205°C

Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.

Typical applications

Water, seawater and utility distribution
Compressed air and low-pressure gas
Steam and condensate (rated types)
Marine, building services and process lines

Ordering & procurement

Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.

Request a quote

Product Information

Specifications

Gate valve is used to allow or cut off the fluids flow through along hydraulic system. By rotate the wheel handle to open or close position which mark on it, the wedge will be lift up or lift down. It is design and manufacture according to ASME B16.10 / API 600 / API 602 / F7364 standard. It will be inspected and tested according to JIS F7400 / API 598.

Material and Design

JIS10K Cast Iron Flange End Gate Valve is available in Cast Iron material. It all come with bolted bonnet, however there are different in shape due to different design standard. Bolted bonnet type is where a bonnet is attached on valve body to hold the internal parts that into it with screw and nut.

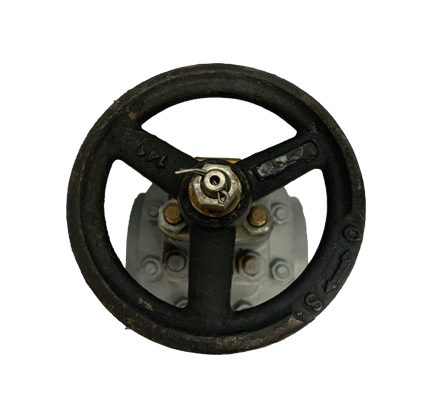

The stem, one of the important component in gate valve, is available in two type: rising stem or non-rising stem. For rising stem gate valve, the stem will go up when we rotate the handle to open position and go down when we rotate the handle to close position. It can be easily tell if the valve is in open or close position when we looking at the amount of stem exposed. For non-rising stem gate valve, the valve is in open position when the handle is rotate as far as possible to “open” direction that mark on handle and in close position when the handle is rotate as far as possible to “close” direction that mark on handle. Non-rising stem gate valve usually been used on tight places where there is not enough space for the stem to raise, such as underground hydraulic systems.

Do check with us for the availability of gate valve design.

Connection Type

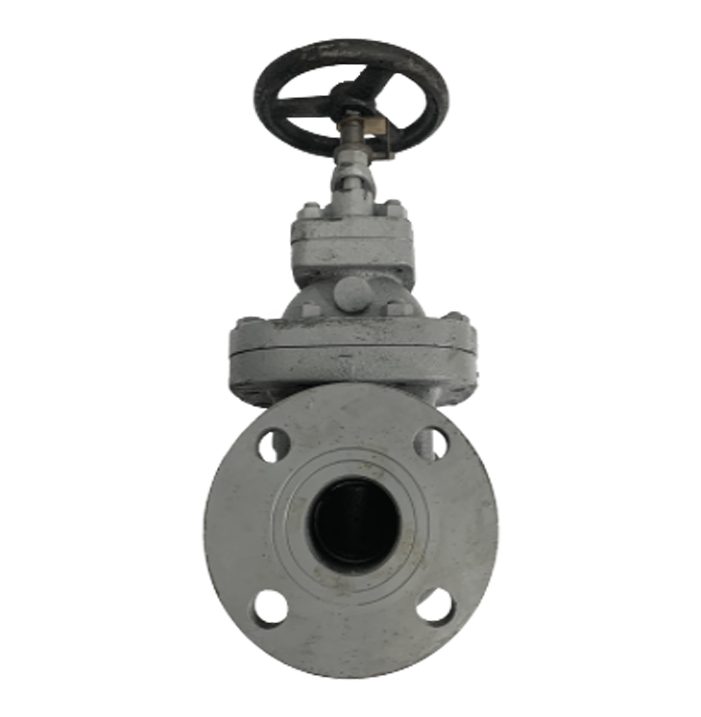

For flange end gate valve, the another connection end must be flange end too. The number of bolt hole is depend on the valve size too. There will be 4 bolt hole for size below 4”, 8 bolt hole for size above 4”. Gasket, bolts and nuts are required to connect the valve body flange to another flange end.

For more information regarding gate valves, please refer to en.wikipedia.org/wiki/Gate_valve.

Material List

NO	PART NAME	MATERIAL
1	Body	A351 CF8M
2	Wedge	A351 CF8M
3	Stem	SS316
4	Gasket	SS316 + Graphite
5	Bolt	A193 B8M
6	Nut	A193 B8M
7	Packing	Graphite
8	Pin	SS304
9	Eye Bolt	A193 B8M
10	Gland Nut	SS316
11	Gland Flange	A351 CF8M
12	Bonnet	A351 CF8M
13	Nipple	Assembly
14	Stem Nut	A439 D2
15	Nut	AISI 1035
16	Handwheel	WCB
17	Lock Nut	AISI 1035

Main Technical Parameters

Nominal Pressure	10K
Hydraulic Body Test	2.06 MPa
Seal Test	1.57 MPa
Hermetical Seal Test	0.6 MPa
Max Working Temperature	≤ 205°C

Technical Specifications

Basic design and manufacture according to ASME B16.10
Face to face dimension: ASME B16.10
Flange End: JIS B2212

Dimensional Drawing

JIS 10K Cast Iron Flange End Gate Valve Drawing

Downloads

Catalogues & literature

📄

JIS 10K Cast Iron Flange End Gate Valve Catalogue

Download PDF →

📄

JIS 10K Cast Iron Flange End Gate Valve Literature

Download PDF →

Frequently Asked Questions

What is the size range of JIS 10K cast iron flange end gate valves?

For JIS 10K cast iron flange end gate valves, the size range is from 2 inches to 4 inches.

What is JIS 10K cast iron flange end gate valves made of?

It is made of cast iron.

What is the working pressure of JIS 10K cast iron flange end gate valves?

The working pressure that JIS 10K cast iron flange end gate valves can withstand is 10kg/cm².

What is the working temperature range of JIS 10K cast iron flange end gate valves?

For JIS 10K cast iron flange end gate valves, the working temperature range is ≤ 205°C (for 2” – 4”).

What is the type of connection for JIS 10K cast iron flange end gate valves?

JIS 10K Flange connection.

What is the difference between a gate valve and a ball valve?

Ball valves are more reliable and long-lasting than gate valves in terms of creating a tight seal. While gate valve has an internal disc or wedge to allow flow process and the cost is slightly lower than ball valve.
