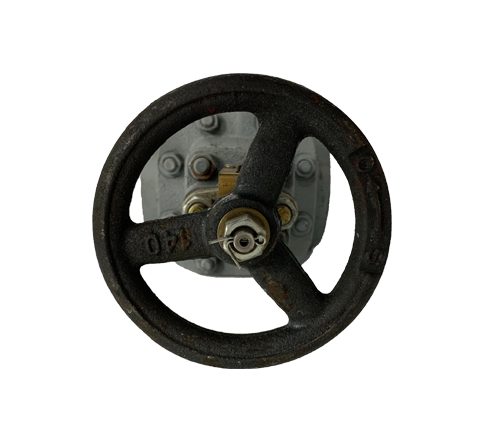

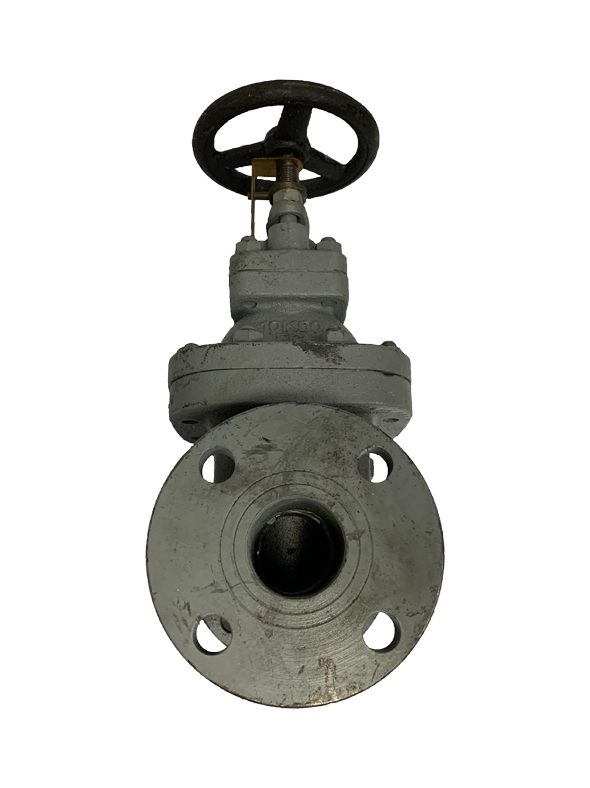

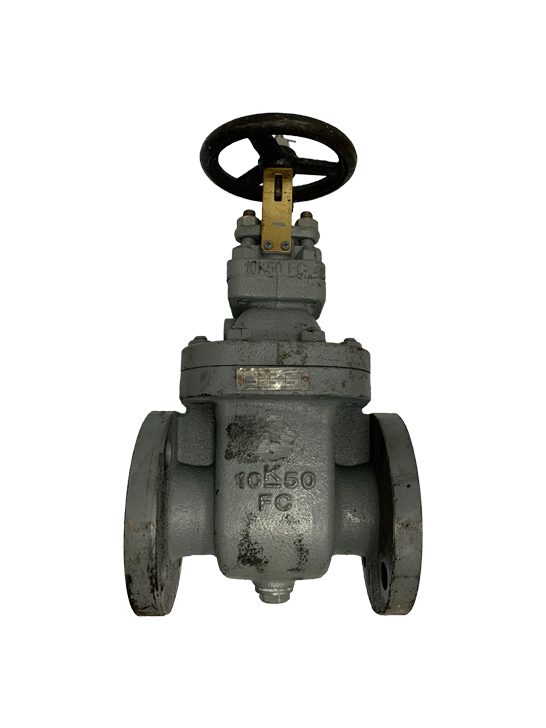

JIS 10K Cast Iron Flange End Globe Valve
JIS 10K Cast Iron Flange End Globe Valve. Seat-and-disc design for flow control and frequent operation; good regulation and tight shut-off. Body in Cast Iron GG25, rated JIS 10K (PN10). Cost-effective for water and low-pressure utility lines.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 2” to 6” |
|---|---|
| Connection Type | JIS10K Flange Connection |
| Design and Manufacture Standard | ASME B16.10 / ASME B16.34 / API 602 |
| Working Pressure | 10kg/cm² |
| Valve Body Material | Cast Iron |
| Applicable Medium | General Oil, Gas & Water applications |
| Temperature Range | ≤ 230°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct Information
Specifications
Globe valve is a valve that used to permit, stop and regulate the flow in a pipeline system. The disc can be lifting up or lifting down vertically by turn the wheel handle to open position or close position. It is design and manufacture according to ASME B16.10 / ASME B16.34 / BS 1873 / API 602 standard due to different kind of materials. Inspection and testing had been carried out according to API 598 standard. Globe valve is widely install on system that required flow regulating such as fuel oil system and cooling water system.
Material and Design
JIS10K Cast Iron Flange End Globe Valve is available in Cast Iron. For this valve, the cover is available in bolted cover type where the cover is tighten with the valve body with screws and nuts to hold the internal parts.
There are two design for the stem element, namely rising stem design and non-rising stem design. Rising stem design globe valve is a type of globe valve where the stem will rise and exposed when the valve is turn to open position and lower when the valve is turn to close position. This design allow user to check if the valve is in open position or close position by look at the amount of stem that exposed.
For non-rising stem design globe valve, the valve is in open position when the handle is turning to open position and in close position when the handle is turning to close position. However it is unable to check the position of non-rising stem globe valve compare to rising stem globe valve. This design globe valve is suitable to install on system that have limited space, for example, underground pipeline system.
Connection Type
For flange end globe valve, the connection is come with both end flange which the other end connection must be flange end too to connect. The number of bolt hole is depend on valve size,ASME B16.34bolt hole for size below 4” andBS 1873bolt hole for size above 4”. Other accessories such as gasket, bolts and nuts is required to connect the both flange together.
For more information regarding globe valves, please refer to en.wikipedia.org/wiki/Globe_valve.
Size 2” – 4”
Material List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | FC |
| 2 | Seat | FC |
| 3 | Disc | FC |
| 4 | Cover | A29 1025 |
| 5 | Stem | A276 410 |
| 6 | Gasket | SS304 + Graphite |
| 7 | Bolts | A29 1035 |
| 8 | Nuts | A29 1025 |
| 9 | Bonnet | FC |
| 10 | Stem Nut | A276 410 |
| 11 | Handwheel | A47 32510 |
| 12 | Nut | A29 1025 |
| 13 | Screw | SS304 |
| 14 | Nut | A29 1025 |
| 15 | Bolt | A29 1035 |
| 16 | Gland Flange | FC |
| 17 | Packing Gland | A276 410 |
| 18 | Packing | Flexible Graphite |
| 19 | Back Seat | A276 410 |
Main Technical Parameters
| Norminal Pressure | 10K |
|---|---|
| Hydraulic Body Test | 2.06 MPa |
| Seal Test | 1.57 MPa |
| Hermetical Seal Test | 0.6 MPa |
| Max Working Temperature | ≤ 230°C |
Technical Specifications
- Basic design and manufacture according to JIS F7307
- Face to face dimension: JIS F7307
- Flange End: JIS B2210
- Inspection and test: JIS F7400
Dimensional Drawing
Size 5” – 6”
Material List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | ASTM A126 B |
| 2 | Seat | ASTM A126 B + SS304 |
| 3 | Disc | ASTM A126 B + SS304 |
| 4 | Cover | ASTM A29 1025 |
| 5 | Stem | ASTM A276 410 |
| 6 | Gasket | SS304 + Graphite |
| 7 | Bolts | ASTM A29 1035 |
| 8 | Nuts | ASTM A29 1025 |
| 9 | Bonnet | ASTM A126 B |
| 10 | Stem Nut | ASTM A276 410 |
| 11 | Handwheel | ASTM A47 32510 |
| 12 | Nut | ASTM A29 1025 |
| 13 | Screw | SS304 |
| 14 | Nuts | ASTM A29 1025 |
| 15 | Bolts | ASTM A29 1035 |
| 16 | Gland Flange | ASTM A126 B |
| 17 | Packing Gland | ASTM A276 410 |
| 18 | Pin | ASTM A29 1025 |
| 19 | Packing | Flexible Graphite |
Main Technical Parameters
| Norminal Pressure | 10K |
|---|---|
| Hydraulic Body Test | 2.06 MPa |
| Seal Test | 1.57 MPa |
| Hermetical Seal Test | 0.6 MPa |
| Max Working Temperature | ≤ 429°C |
Technical Specifications
- Basic design and manufacture according to ASME B16.10
- Face to face dimension: ASME B16.10
- Flange End: JIS B2212
- Inspection and test: API 598
Dimensional Drawing
Frequently Asked Questions
What are the size ranges of JIS 10K cast iron flange end globe valves?
For JIS 10K cast iron flange end globe valves, there are two size ranges which are from 2 inches to 4 inches and 5 inches to 6 inches.
What is JIS 10K cast iron flange end globe valves made of?
It is made of cast iron.
What is the working pressure of JIS 10K cast iron flange end globe valves?
The working pressure that JIS 10K cast iron flange end globe valves can withstand is 10kg/cm².
What are the working temperature ranges of JIS 10K flange end globe valves?
The working temperature ranges of JIS 10K cast iron flange end globe valves are ≤ 230°C (for 2” – 4”) and ≤ 429°C (for 5” – 6”).
What is the type of connection for JIS 10K flange end globe valves?
JIS 10K Flange connection.
What is the difference between gate valve and globe valve?
A gate valve can start out and stop the flow without regard for flow control, but a globe valve modulate and reduce the flow with precision or throttling.
