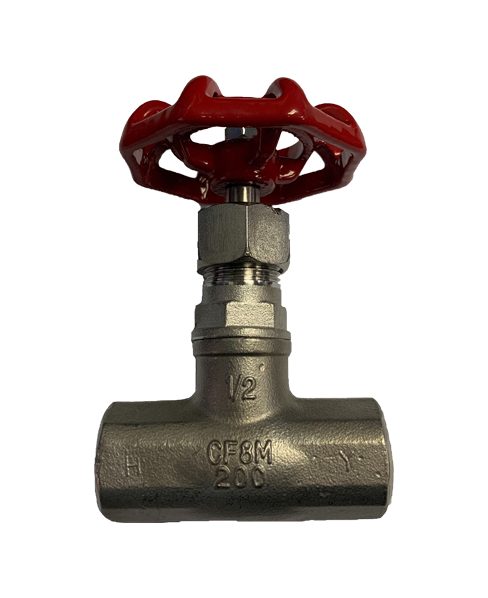

Threaded End SS316 Globe Valve 200PSI

Threaded End SS316 Globe Valve 200PSI. Seat-and-disc design for flow control and frequent operation; good regulation and tight shut-off. Body in Stainless Steel AISI SS316, rated 200 PSI WOG. Excellent corrosion resistance for seawater, chemical and hygienic service.

Bubble-tight shut-off (soft-seated types)
Corrosion-resistant materials
Ex-stock in common sizes
Actuation options on request

Brand

AF Hydro

Request a Quote Back to Globe Valves

Specifications

Size Range	1/2” to 2”
Connection Type	BSPP / NPT
Working Pressure	200 PSI
Valve Body Material	SS316
Applicable Medium	General Oil, Gas & Water applications
Temperature Range	-29°C to 150°C

Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.

Typical applications

Water, seawater and utility distribution
Compressed air and low-pressure gas
Steam and condensate (rated types)
Marine, building services and process lines

Ordering & procurement

Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.

Request a quote

Product Information

Specifications

Globe valve is a valve that used to start, stop and regulate fluids flow along the valve passage. The disc will be lifting up or lower down vertically along the seat by rotating the wheel handle to open position or close position. It is design and manufacture according to API 602 and ASME B16.34 standard. It also inspect and test according to API 598 standard. Globe valve is applicable to system that required flow regulating such as cooling water system, fuel oil system and extraction drain system.

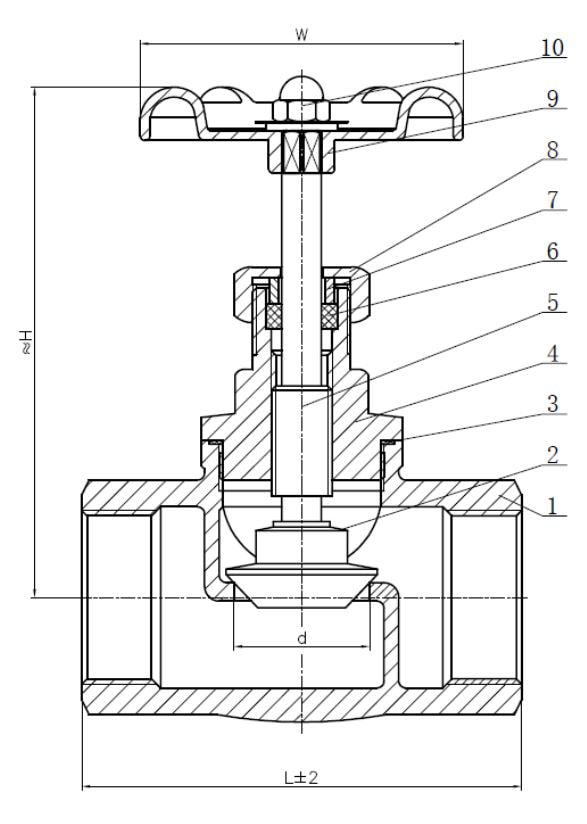

Material and Design

Threaded End SS316 Globe ValveundefinedPSI is made in stainless steel SS316 material. For stainless steel SS316 globe valve, it is available instart, stop and regulate fluids flowdesign namely screw-in bonnet type or bolted bonnet type. For globe valve with screw-in bonnet design, a bonnet is screw in into the valve body to hold internal parts that inside valve body, and offering a pressure tight seal between bonnet and valve body.

For the stem part, which is one of the essential part for globe valve, it is available in rising stem design and non-rising stem design. For globe valve with rising stem design, the stem will rise and exposed when we rotate the wheel handle to open position and lower when we rotate the wheel handle to close position. This design can simply tell us if the valve is in open position or close position by looking at the amount of stem exposed. However for globe valve that come with non-rising stem design, the valve is in open position when we rotate the handle to the open position as far as possible and in close position when we rotate the handle to the close position as far as possible. Although it is unable to check the valve in open or close position like rising stem design, non-rising stem design globe valve is more suitable to install on hydraulic piping system that have limited space for the stem to raise in full, for example, underground hydraulic systems.

Connection Type

For SS316 material globe valve, the connection end is only available in NPT (National Pipe Thread) female thread or BSPP (British Standard Pipe Parallel) female thread. For female thread globe valve, it need a male thread of same connection end to screw in to the valve. However for socket weld connection, it only need the pipe end connection in plain end.
