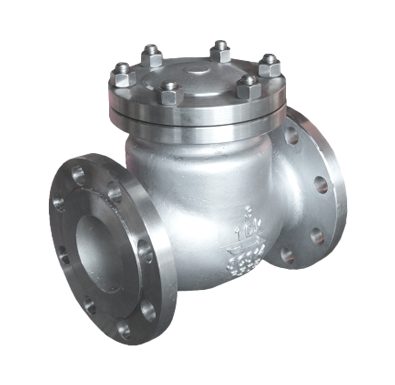

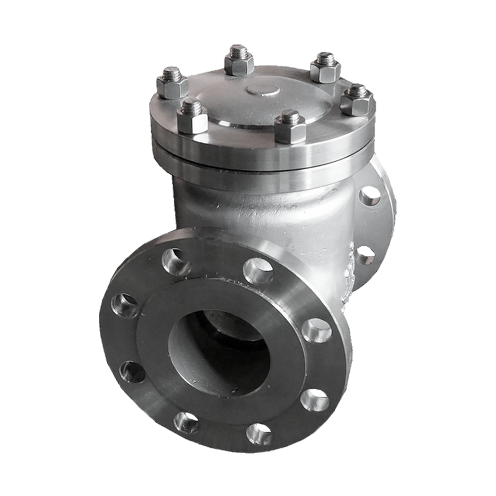

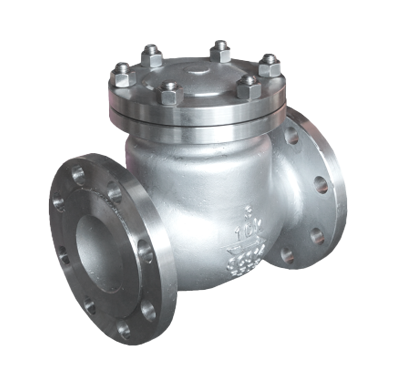

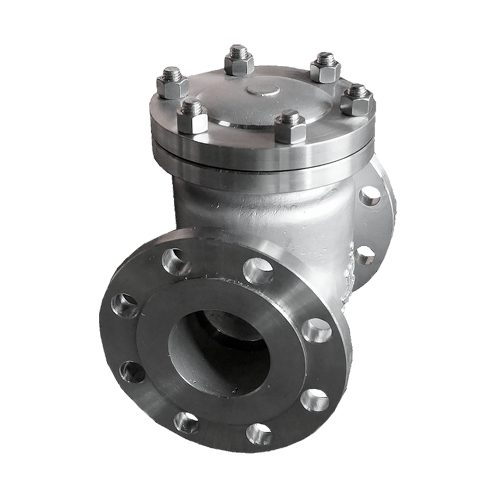

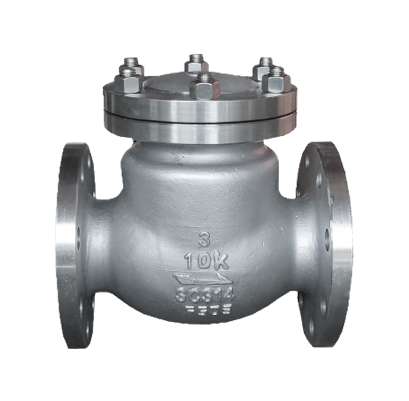

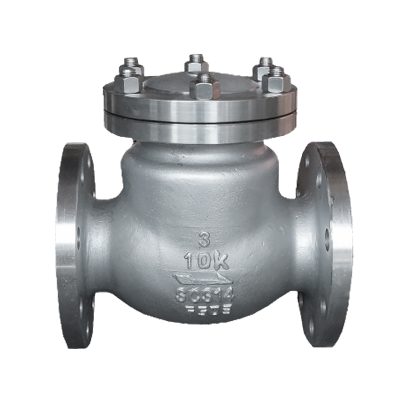

JIS 10K SS316 Flange End Swing Check Valve
JIS 10K SS316 Flange End Swing Check Valve. Hinged disc prevents backflow; low pressure drop for horizontal or vertical-up lines. Body in Stainless Steel AISI SS316, rated JIS 10K (PN10). Excellent corrosion resistance for seawater, chemical and hygienic service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1 1/2" to 4" (DN40 - DN100) |
|---|---|
| Connections | JIS 10K Flange End |
| Working Pressure | 10kg/cm² |
| Material | SS316 / SCS14A |
| Applicable Medium | General Oil, Gas & Water Applications |
| Temperature Range | -29°C to 150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteMaterial List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | SCS14A/SS316 |
| 2 | Disc | SCS14A/SS316 |
| 3 | Arm | SCS14A/SS316 |
| 4 | Nut | SS316 |
| 5 | Hinge Pin | SS316 |
| 6 | Bolt | SS316 |
| 7 | Nut | SS316 |
| 8 | Gasket | PTFE |
| 9 | Bonnet | SCS14A/SS316 |
Main Technical Parameters
| Norminal Pressure | 10K |
|---|---|
| Shell Test Pressure | 3.0 MPa |
| Seal Test | 2.2 MPa |
| Air Seal Test | 0.4 - 0.7 MPa |
| Max Working Temperature | -29°C to +150°C |
Technical Specifications
- Basic design and manufacture according to JIS B2084
- Structure length according to JIS B2002
- Flange ends complied with JIS B2220
- Inspection and tested according to JIS B2003

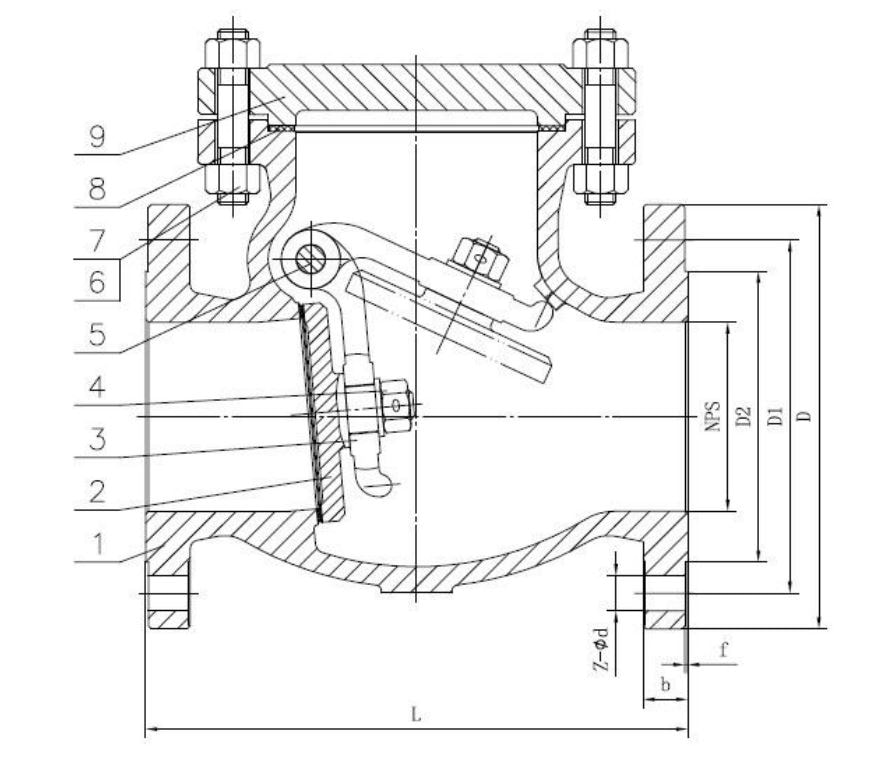

Dimensional Drawing
Downloads
Catalogues & literature
Frequently Asked Questions
What is the size range of JIS 10K SS316 Flange end swing check valves?
For JIS 10K SS316 swing check valves, the size range is from 3 inches to 4 inches.
What is JIS 10K flange end swing check valves made of?
It is made of stainless steel SS316/ SCS14A.
What is the working pressure of JIS 10K flange end swing check valves?
The working pressure that JIS 10K flange end swing check valves can withstand is 10K.
What is the working temperature range of JIS 10K flange end swing check valves?
The working temperature range of JIS 10K flange end swing check valves is from -29°C to 150°C.
What is the type of connection for JIS 10K flange end swing check valves?
JIS 10K Flange connection.
Which fields/ industries would apply JIS 10K flange end swing check valves?
JIS 10K flange end swing check valves are applied in several industries such as general oil, gas and water applications.
