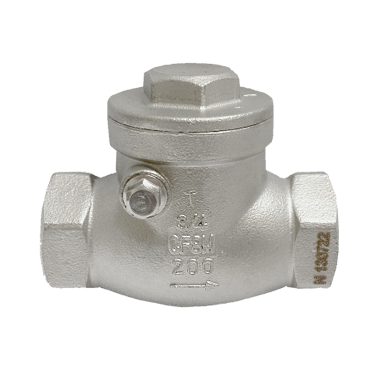

Threaded End SS316 Swing Check Valve
Threaded End SS316 Swing Check Valve. Hinged disc prevents backflow; low pressure drop for horizontal or vertical-up lines. Body in Stainless Steel AISI SS316, rated Rated to standard. Excellent corrosion resistance for seawater, chemical and hygienic service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1/4" to 2" |
|---|---|
| Design | Swing Type Check Valve |
| Material | SS316 / CF8M |
| Working Pressure | 200 PSI |
| Connections | BSPT |
| Applicable Medium | General Oil, Gas & Water Applications |
| Temperature Range | -29°C to +150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteMaterial List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | SS316, CF8M |
| 2 | Disc | SS316, CF8M |
| 3 | Cap | SS316, CF8M |
| 4 | Body Gasket | PTFE |
| 5 | Pin | SS304 |
| 6 | Plain Washer | SS304 |
| 7 | Bolt | SS304 |
| 8 | Gasket | PTFE |
Main Technical Parameters
| Norminal Pressure | 200 PSI |
|---|---|
| Shell Test Pressure | 2.1 MPa |
| Seal Test | 1.6 MPa |
| Gas Tightness Test | 0.6 MPa |
| Max Working Temperature | -29°C to +150 °C |
Technical Specifications
- Basic design and manufacture according to ANSI B16.34
- Rc, Rp & G threaded ends comply with BS 21/2779, DIN 259/2999, ISO 228-1, AS1722.1/1722.2 upon request
- Inspection and tested according to API 598

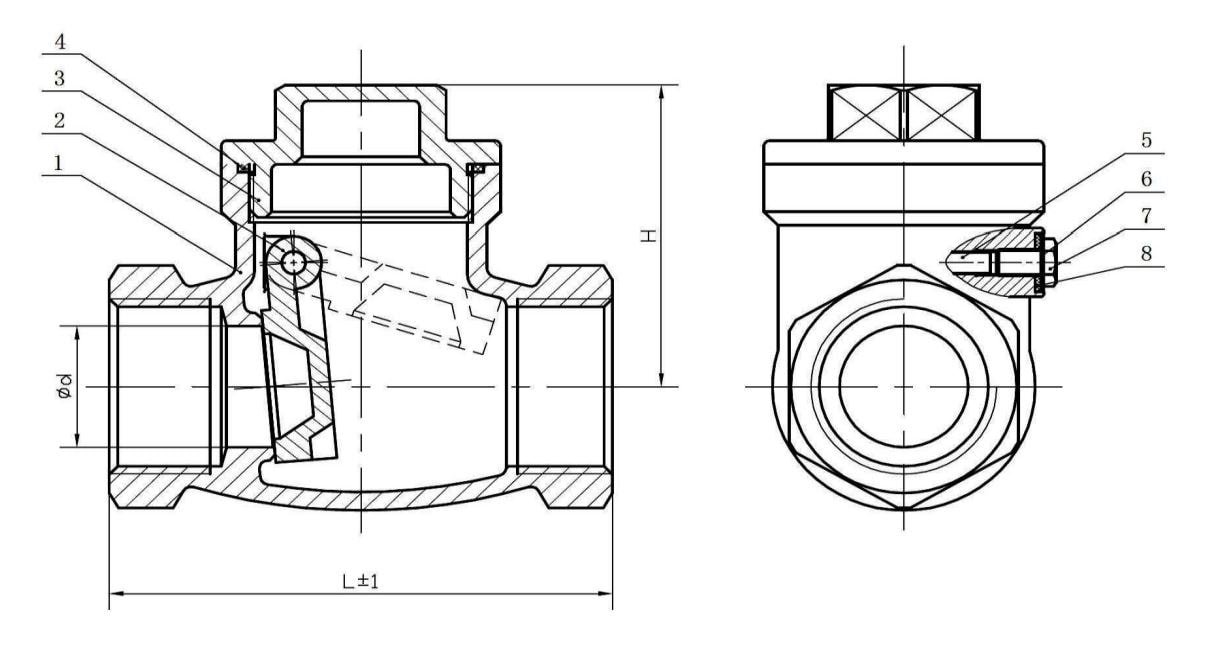

Dimensional Drawing
Downloads
Catalogues & literature
Frequently Asked Questions
What is the size range of threaded end SS316 swing check valves?
For threaded end ss316 swing check valves, the size range is from 1/4 inches to 2 inches.
What is threaded end ss316 swing check valves made of?
For threaded end ss316 swing check valves, it is made of stainless steel or CF8M material.
What is the working pressure of threaded end SS316 swing check valves?
The working pressures that threaded end ss316 swing check valves can withstand is 200 PSI.
What is the working temperature range of threaded end SS316 swing check valves?
For threaded end ss316 swing check valves, the working temperature range is from -29°C to 150°C .
What are the types of connections for threaded end ss316 swing check valves?
There are two connection types of threaded end ss316 swing check valves which are BSPT and NPT.
Which fields/ industries would apply threaded end ss316 swing check valves?
Threaded end ss316 swing check valves are applied in various industries which are general oil, gas and water applications.
