Y-strainers

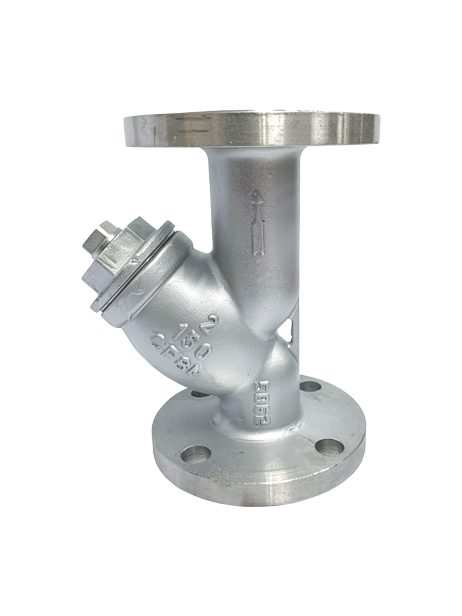

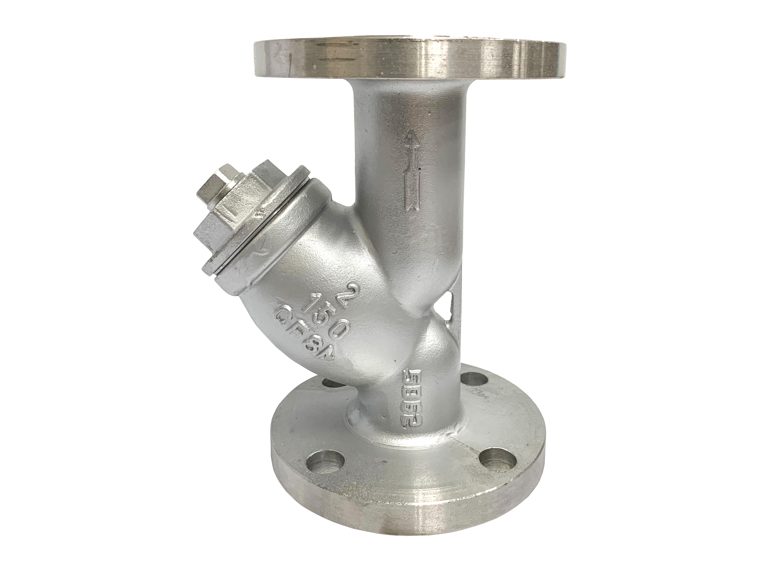

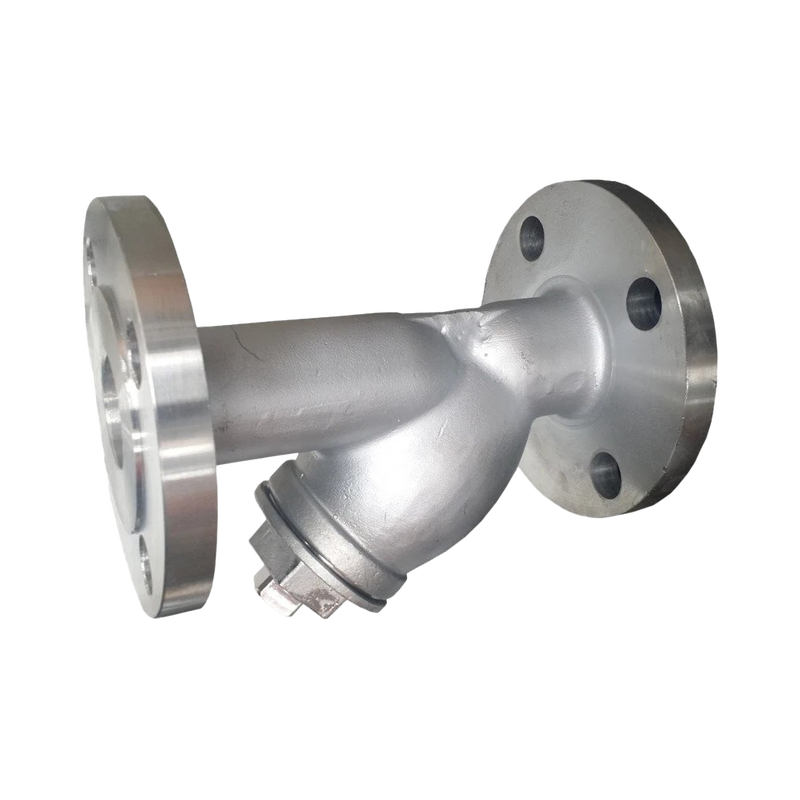

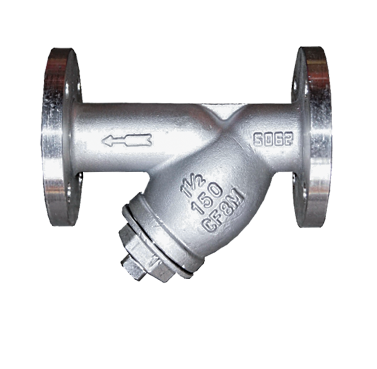

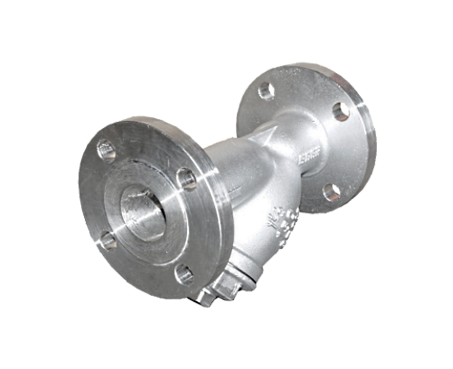

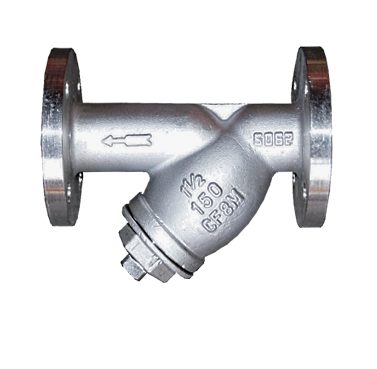

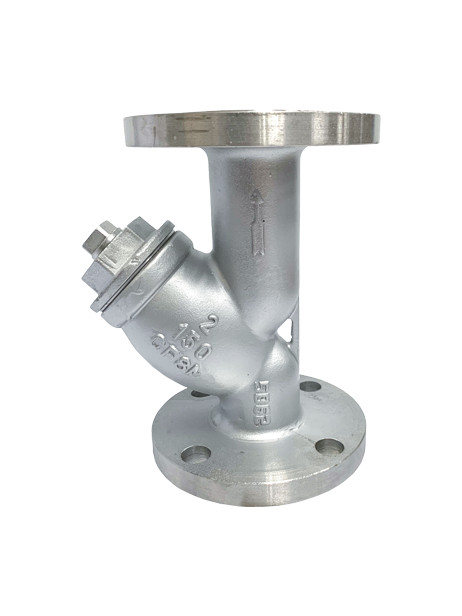

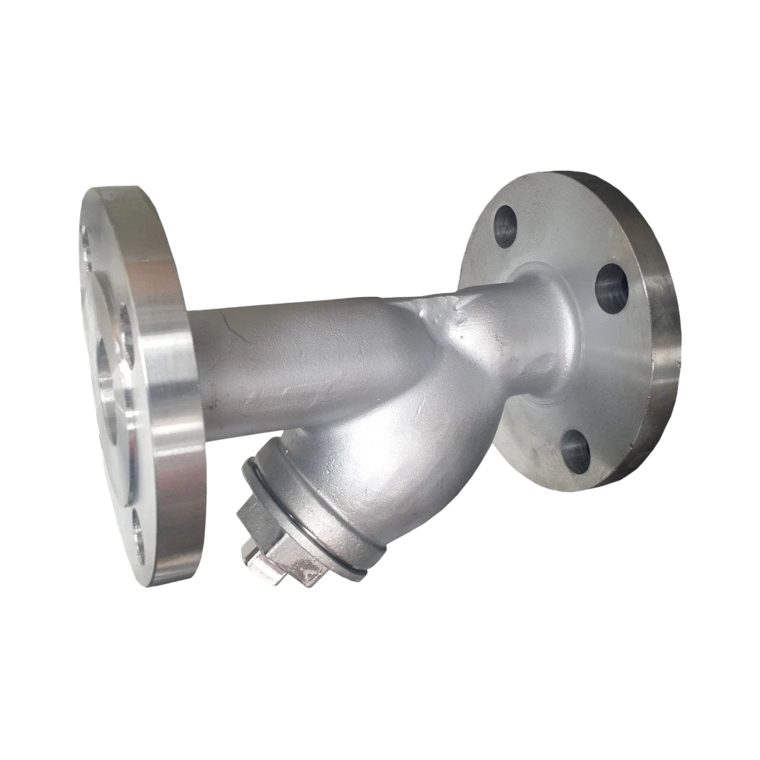

ANSI 150# SS316 Flange End Y-Strainers
ANSI 150# SS316 Flange End Y-Strainers. Removes debris to protect downstream valves, pumps and meters; removable stainless screen. Body in Stainless Steel AISI SS316, rated ANSI Class 150# (PN20). Excellent corrosion resistance for seawater, chemical and hygienic service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1-1/2” – 4” (DN40 - DN100) |
|---|---|
| Flange Connections Standard | ANSI 150# |
| Working Pressure | 150# |
| Material | SS316 / CF8M |
| Screen | 1.0mm (Mesh Size 40) |
| Applicable Medium | General Oil, Gas & Water Applications |
| Temperature Range | -20°C to 230°C |
| Usage | Collect Containment and Particles |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteMaterial List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | SS316, CF8M |
| 2 | Strainer Screen | SS316 1mm Mesh |
| 3 | Bolt | SS304 |
| 4 | Gasket | PTFE |
| 5 | Bonnet | SS316, CF8M |
| 6 | Nut | SS304 |
| 7 | Bolt | SS304 |
Main Technical Parameters
| Norminal Pressure | CLASS 150 |
|---|---|
| Shell Test Pressure | - |
| Tightness Test | 3.0 MPa |
| Gas-Tightness Test | - |
| Max working temperature | -20°C to 230°C |
Technical Specifications
- Basic design and manufacture according to ANSI B16.34.
- Flange connection per ASME B16.5.
- Inspection and tested according to API 598.

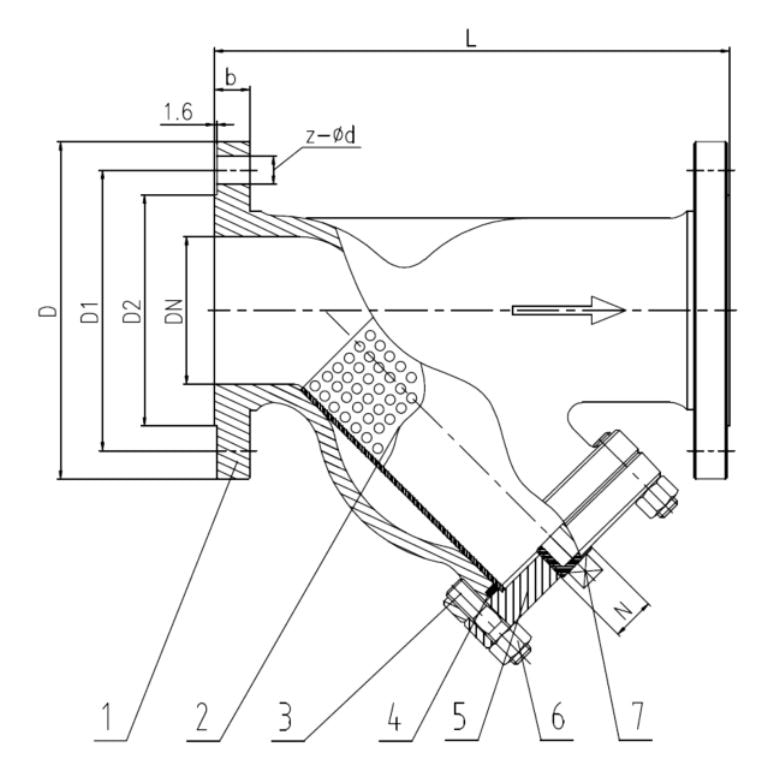

Dimensional Drawing
Downloads
Catalogues & literature
Frequently Asked Questions
What is the size range of ANSI 150# SS316 flange end Y-strainers?
The size range of the ANSI 150# SS316 Y-strainers is from 1 1/2 inches to 4 inches.
What is ANSI 150# SS316 flange end Y-strainers made of?
It is made of stainless steel SS316/ CF8M.
What is the working pressure of ANSI 150# SS316 flange end Y-strainers?
The working pressure that ANSI 150# SS316 Flange End Y-strainers can withstand is 150#.
What is the working temperature range of ANSI 150# SS316 flange end Y-strainers?
The working temperature range of ANSI 150# SS316 Y-strainers is from -20°C to 230°C.
What is the type of connection for ANSI 150# SS316 flange end Y-strainers?
ANSI 150# Flange connection.
Which fields/ industries would apply ANSI 150# SS316 flange end Y-strainers?
ANSI 150# SS316 Flange End Y-Strainers are applied in several industries such as general oil, gas and water applications.
