Y-strainers

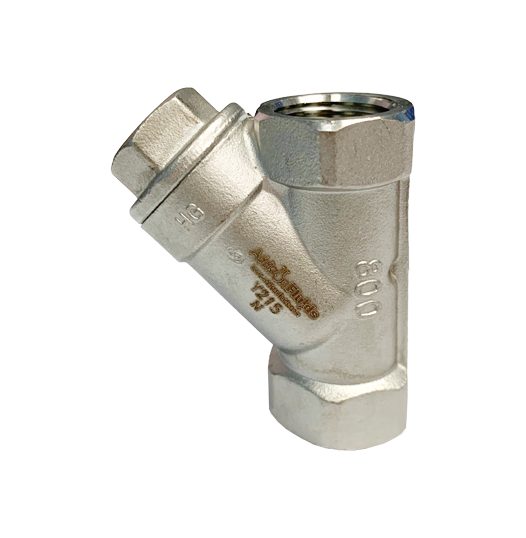

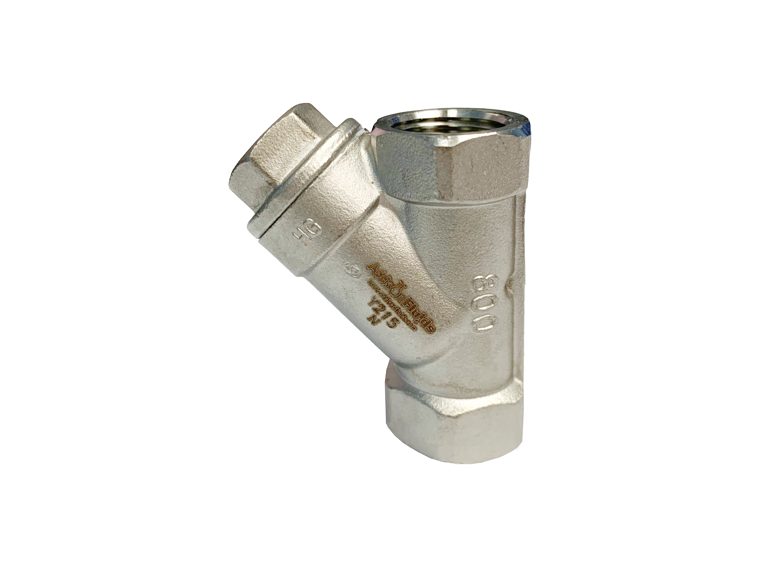

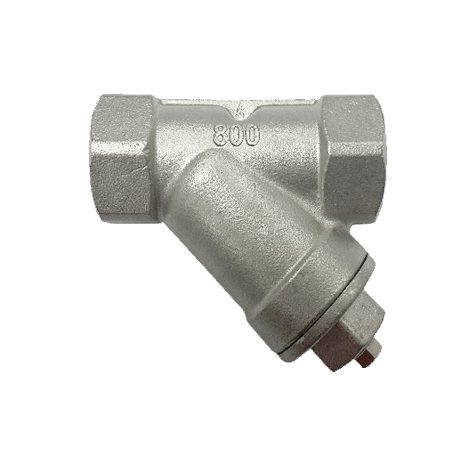

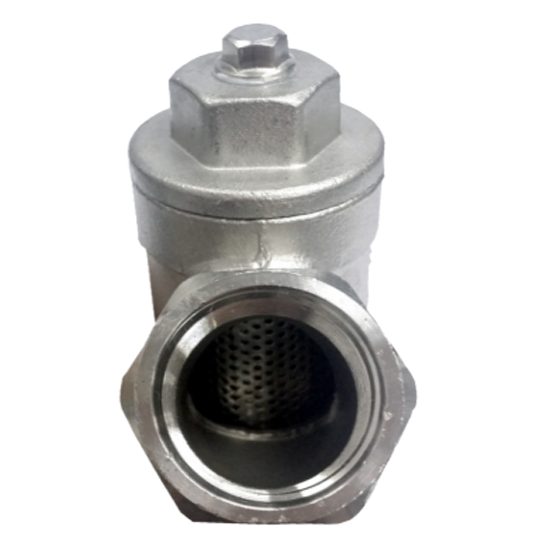

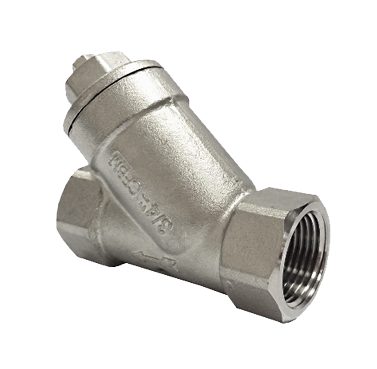

Threaded End SS316 Y-Strainers
Threaded End SS316 Y-Strainers. Removes debris to protect downstream valves, pumps and meters; removable stainless screen. Body in Stainless Steel AISI SS316, rated to 800 PSI. Excellent corrosion resistance for seawater, chemical and hygienic service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1 1/2” – 4” (DN15 - DN100) |
|---|---|
| Working Pressure | 800 PSI |
| Connections | BSPP / NPT |
| Screen | 1.0mm (Mesh Size 40) |
| Applicable Medium | General Oil, Gas & Water Applications |
| Material | SS316 |
| Usage | Collect Containment and Particles |
| Temperature Range | -20°C to 230°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteMaterial List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | SS316, CF8M |
| 2 | Filter | SS316 |
| 3 | Gasket | PTFE |
| 4 | Cap | SS316, CF8M |
| 5 | Gasket | PTFE |
| 6 | Plug | SS316 |

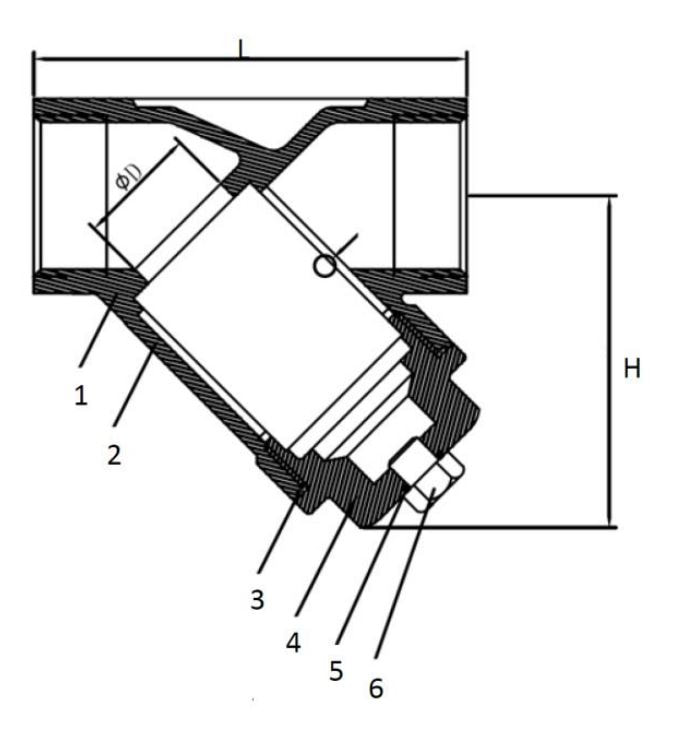

Dimensional Drawing
Downloads
Catalogues & literature
Frequently Asked Questions
What is the size range of threaded end SS316 Y-strainers?
The size range of the threaded end SS316 Y-strainers is from 1 1/2 inches to 4 inches.
What is threaded end SS316 Y-strainers made of?
It is made of stainless steel SS316 or CF8M.
What is the working pressure of threaded end SS316 Y-strainers?
The working pressure that threaded end SS316 Y-strainers can withstand is 800 psi.
What is the working temperature range of threaded end SS316 Y-strainers?
The working temperature range of threaded end SS316 Y-strainers is from -20°C to 230°C.
What are the types of connections for threaded end SS316 Y-strainers?
The connection types of threaded end SS316 Y-strainers are NPT and BSPP.
Which fields / industries would apply threaded end SS316 Y-strainers?
Threaded end SS316 Y-strainers are applied in several industries such as general oil, gas and water applications.
