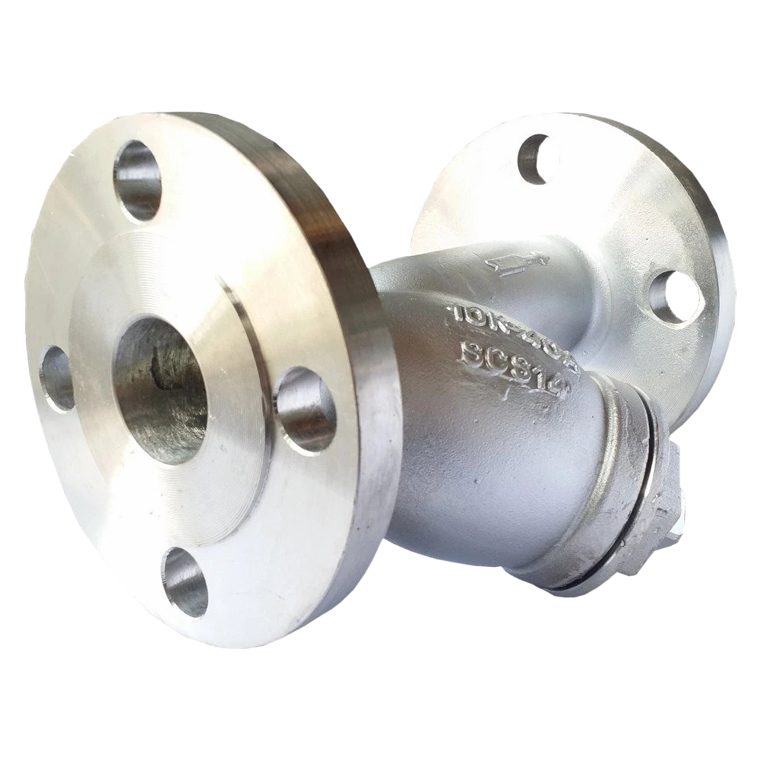

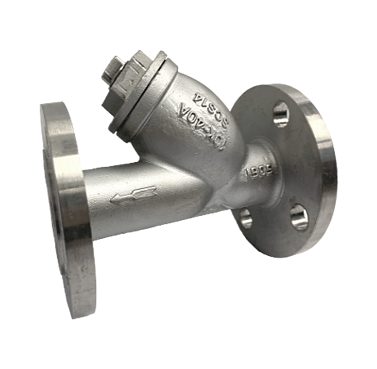

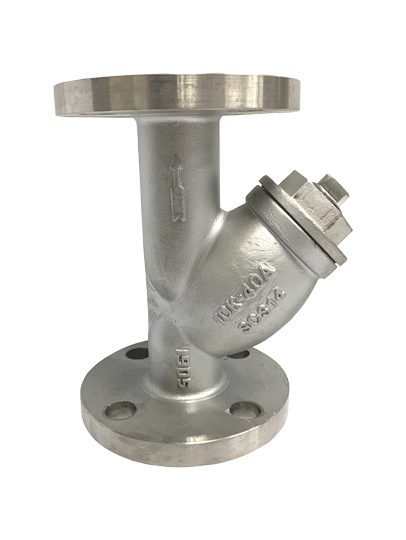

JIS 10K SS316 Flange End Y-Strainers

JIS 10K SS316 Flange End Y-Strainers. Removes debris to protect downstream valves, pumps and meters; removable stainless screen. Body in Stainless Steel AISI SS316, rated JIS 10K (PN10). Excellent corrosion resistance for seawater, chemical and hygienic service.

Bubble-tight shut-off (soft-seated types)
Corrosion-resistant materials
Ex-stock in common sizes
Actuation options on request

Brand

AF Hydro

Request a Quote Back to Y-strainers

Specifications

Size Range	1-1/2” – 4” (DN40 - DN100)
Flange Connections Standard	JIS10K
Working Pressure	10kg/cm²
Material	SS316 / CF8M / Cast Steel
Screen	1.0mm (Mesh Size 40)
Applicable Medium	General Oil, Gas & Water Applications
Temperature Range	-20°C to 230°C
Usage	Collect Containment and Particles

Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.

Typical applications

Water, seawater and utility distribution
Compressed air and low-pressure gas
Steam and condensate (rated types)
Marine, building services and process lines

Ordering & procurement

Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.

Request a quote
