Flange End Ball Valves

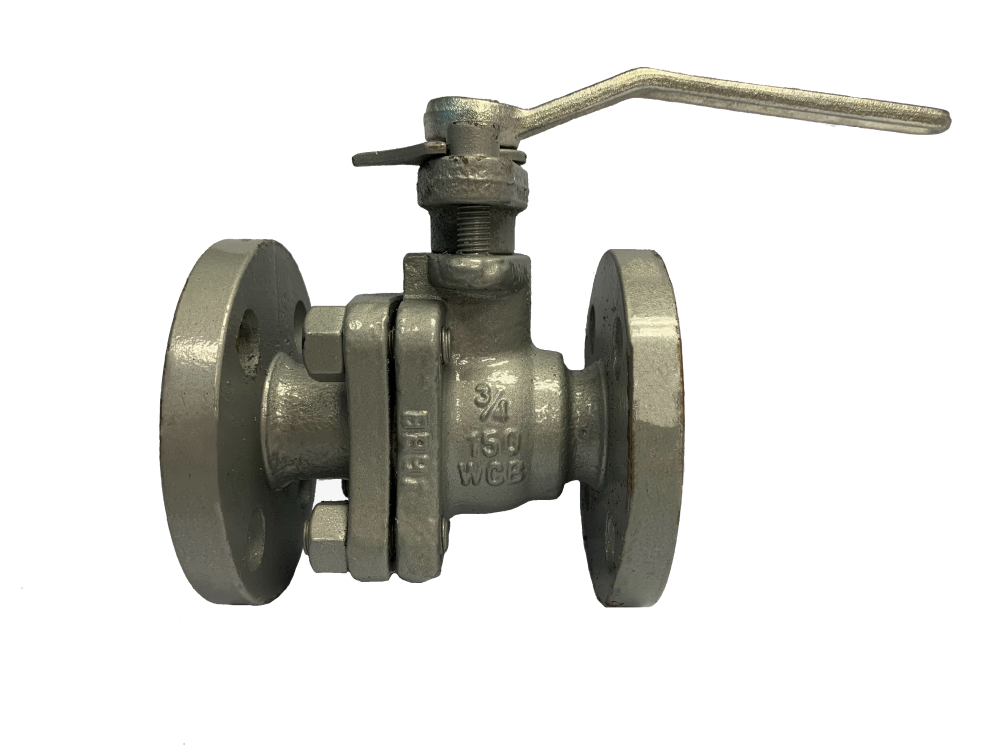

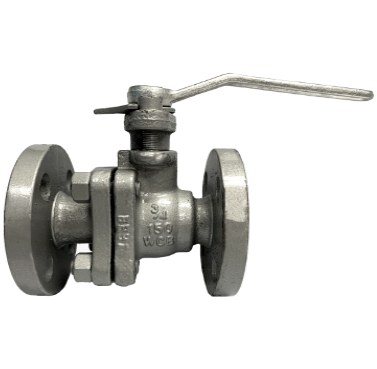

ANSI 150# Cast Steel Flange End Ball Valve
ANSI 150# Cast Steel Flange End Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in Cast Carbon Steel WCB, rated ANSI Class 150# (PN20). Tough, economical body for oil, steam and general high-pressure service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1 1/2” to 6” (DN20 to DN150) |
|---|---|
| Type | Full Bore Type Ball Valve |
| Flange Connection Standard | ANSI 150# |
| Working Pressure | 150 PSI |
| Valve Body Material | Cast Steel A216 WCB |
| Design | Blow-out Proof Stem Design |
| Applicable Medium | General Oil, Gas & Water Applications |
| Temperature Range | ≤100°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteMaterial List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Right Body | A216 WCB |
| 2 | Seat | PTFE |
| 3 | Ball | A182 F304 |
| 4 | Gasket | SS304 + Graphite |
| 5 | Nuts | A194 2H |
| 6 | Bolts | A193 B7 |
| 7 | Left Body | A216 WCB |
| 8 | Stem | A182 F304 |
| 9 | Packing | Graphite |
| 10 | Gland | A216 WCB |
| 11 | Handle | CS + Zn |
Main Technical Parameters
| Norminal Pressure | CLASS 150 |
|---|---|
| Body Test Pressure | 3.1 MPa |
| Seat Test Pressure | 2.2 MPa |
| Hermetical Sealing Test | 0.6 MPa |
| Max working temperature | ≤100°C |
Technical Specifications
- Basic design and manufacture according to API 608
- Valve body wall thickness according to ASME B16.34
- Face-to-face dimensions complies with ASME B16.10
- Flange ends complied with ASME B16.5
- Inspection and tested according to API598

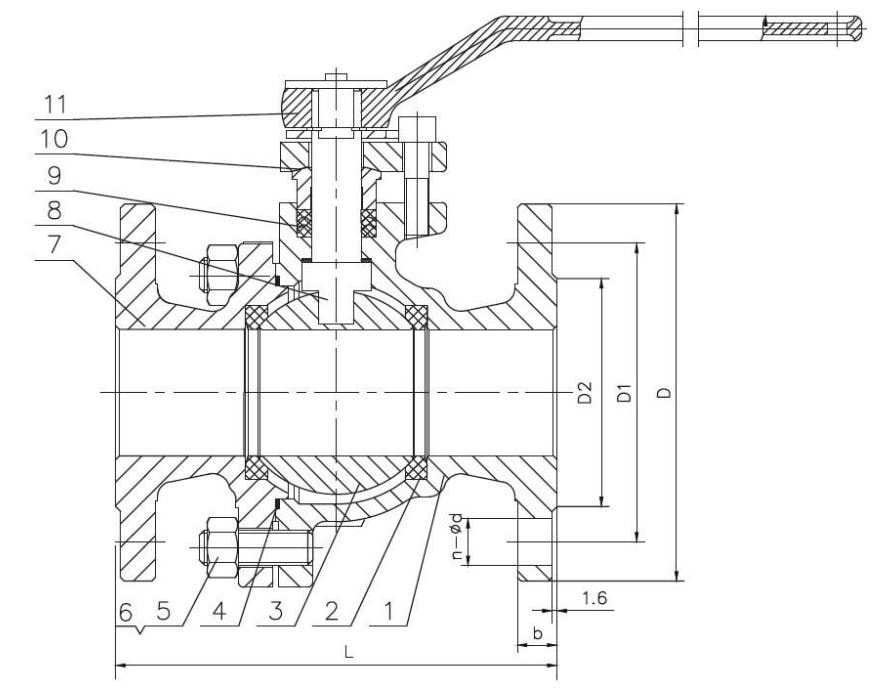

Dimensional Drawing
Frequently Asked Questions
What is the size range of ANSI 150# cast steel flange end ball valves?
The size range of the ANSI 150# cast steel flange end ball valves is from 1 1/2 inches to 6 inches.
What is ANSI 150# cast steel flange end ball valves made of?
It is made of A216 WCB.
What are the types of ANSI 150 # cast steel flange end ball valves available?
It is ANSI 150# cast steel flange end ball valves.
What is the working pressure of ANSI 150# cast steel flange end ball valves?
The working pressure that ANSI 150# cast steel flange end ball valves can withstand is 150#.
What is the type of connection for ANSI 150# cast steel flange end ball valves?
The connection type of ANSI 150# cast steel flange end ball valves is ANSI 150# Flange connection.
Which fields/ industries would apply ANSI 150# cast steel flange end ball valves?
ANSI 150# cast steel flange end ball valves can be used in a variety of sectors, including general oil, gas, and water applications.
