Flange End Ball Valves

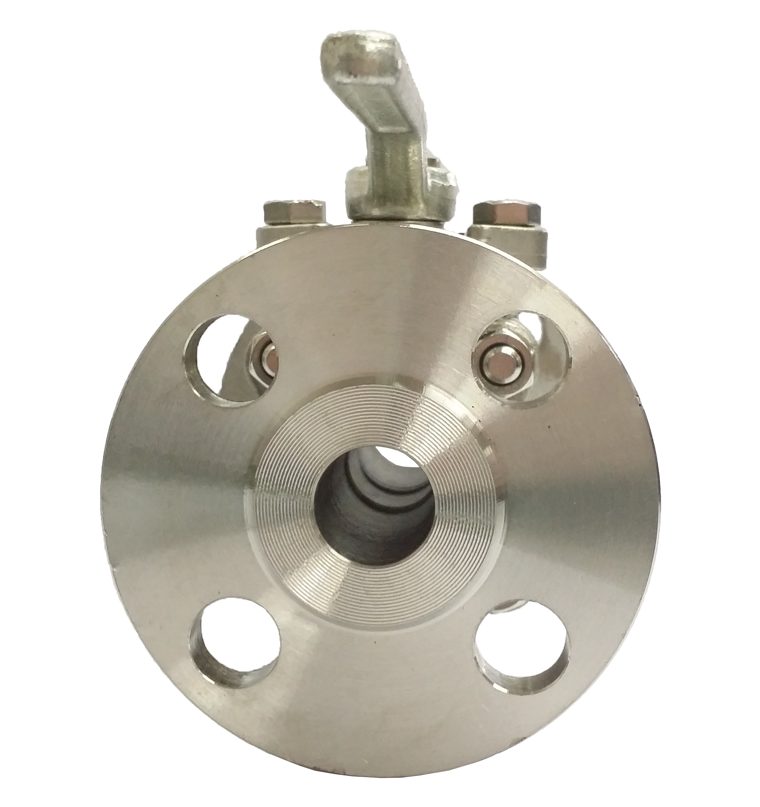

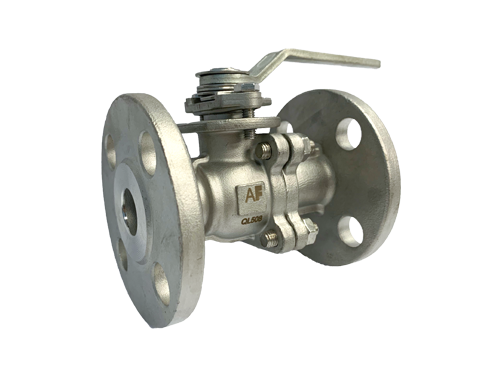

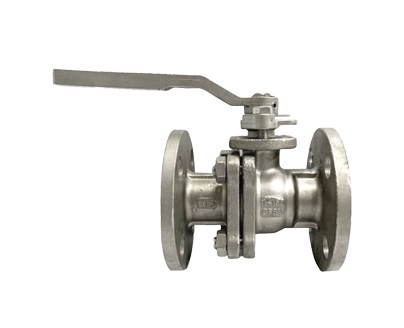

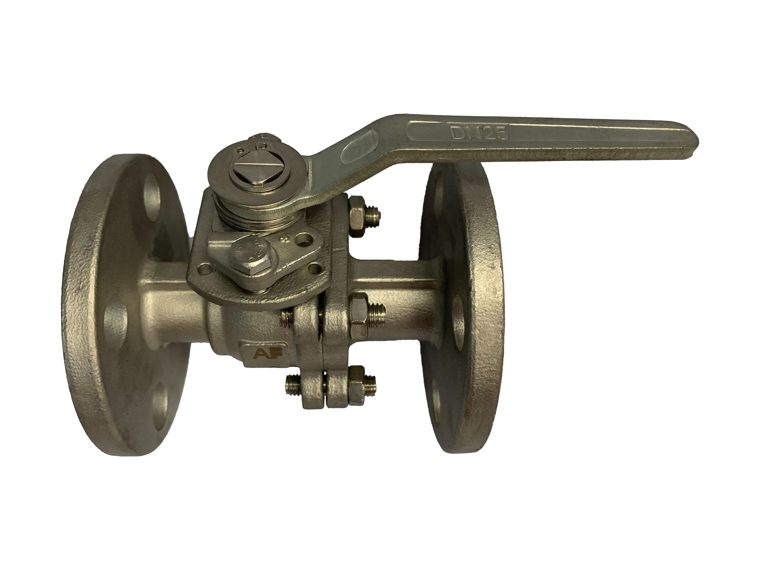

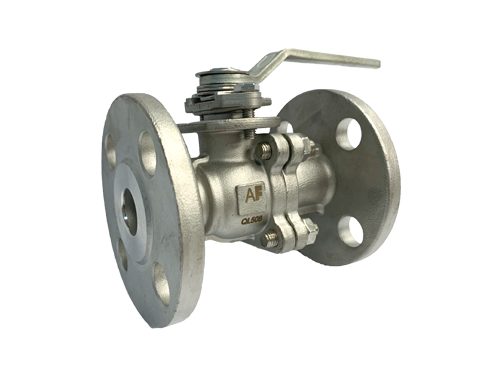

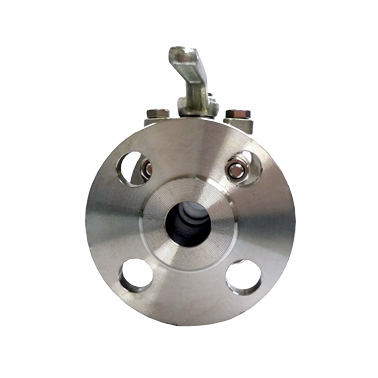

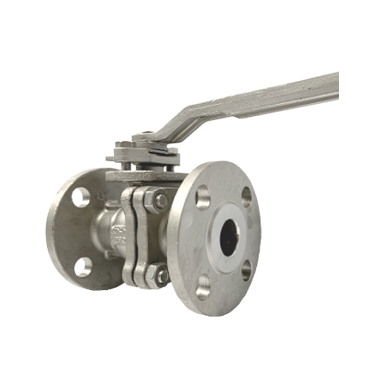

ANSI 150# SS316 Flange End Ball Valve
ANSI 150# SS316 Flange End Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in Stainless Steel AISI SS316, rated ANSI Class 150# (PN20). Excellent corrosion resistance for seawater, chemical and hygienic service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1/2” to 4” (DN15-100) |
|---|---|
| Type | Full Bore Type Ball Valve |
| Flange Connection Standard | ANSI 150# |
| Working Pressure | 150 PSI |
| Valve Body Material | SS316 / CF8M |
| Fire Safe Design | API 607 |
| Design | Blow-out Proof Stem Design |
| Applicable Medium | General Oil, Gas & Water Applications |
| Temperature Range | -29°C to 150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteMaterial List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Left Body | SS316, CF8M |
| 2 | Stud Bolt | SS304 |
| 3 | Nut | SS304 |
| 4 | Ball | SS316 |
| 5 | Seat | PTFE |
| 6 | Body | SS316, CF8M |
| 7 | Stem | SS316 |
| 8 | Gasket | PTFE |
| 9 | O Ring | PTFE |
| 10 | Hexagon Screw | SS304 |
| 11 | Packing | PTFE |
| 12 | Bonnet | SS316 |
| 13 | Stop Block | SS304 |
| 14 | Handle | SS201 |
Main Technical Parameters
| Norminal Pressure | CLASS 150 |
|---|---|
| Shell Test Pressure | 2.4 MPa |
| Tightness Test | 1.8 MPa |
| Gas-Tightness Test | 0.6 MPa |
| Max working temperature | -29 ° C to 150°C |
Technical Specifications
- Basic design and manufacture according to ANSI B16.34
- Face-to-face dimensions complies with GB/T12221
- Flange ends complied with GB/T9113.1
- Inspection and tested according to API598

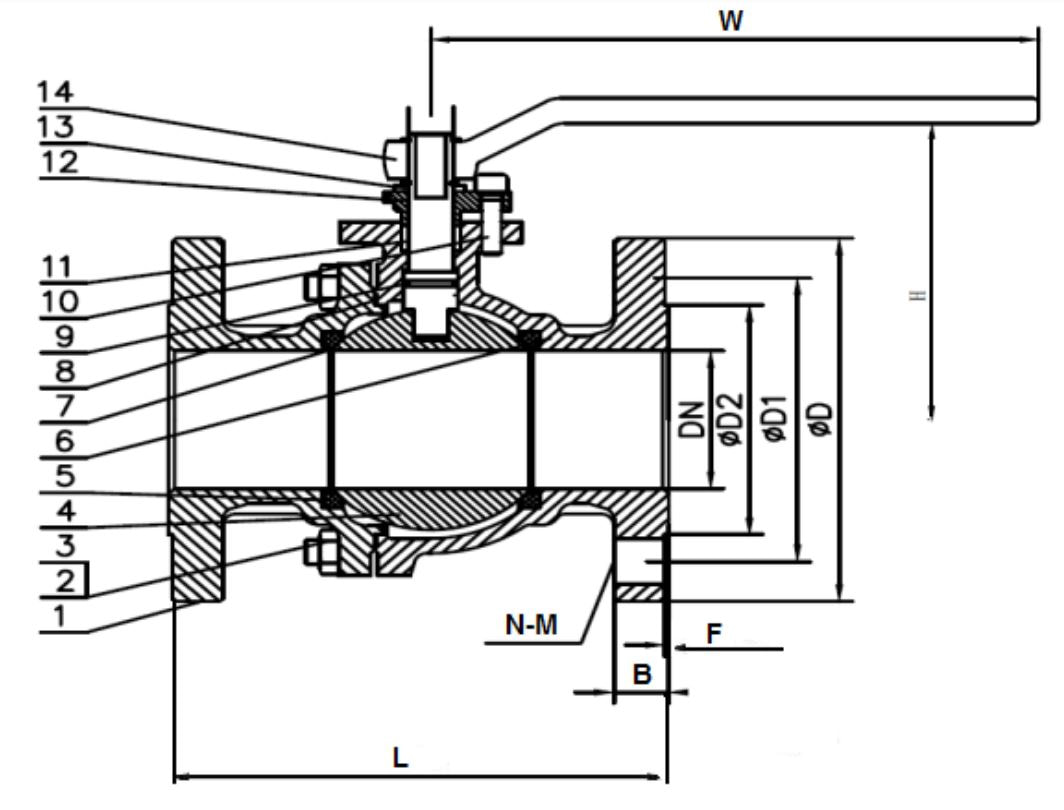

Dimensional Drawing
Downloads
Catalogues & literature
Frequently Asked Questions
What is the size range of ANSI 150# SS316 flange end ball valves?
The size range of the ANSI 150# SS316 flange end ball valves is from 1/2 inches to 4 inches.
What is ANSI 150# SS316 flange end ball valves made of?
It is made of stainless steel SS316.
What are t he types of ANSI 150# SS316 flange end ball valves available?
It is ANSI 150# SS316 flange end ball valve.
What is the working pressure of ANSI 150# SS316 flange end ball valves?
The working pressure that ANSI 150# SS316 flange end ball valves can withstand is 150#.
What is the working temperature range of ANSI 150# SS316 flange end ball valves?
The working temperature range of ANSI 150# SS316 flange end ball valves is from -29°C to 150°C.
What is the techinical specifications of ANSI 150# SS316 flange end ball valves?
The ANSI 150# SS316 flange end ball valves' face-to-face dimensions suits GB/T12221, whereas the flange ends meet the requirement of GB/T9113.1 It goes through inspection and tested according to API598.
