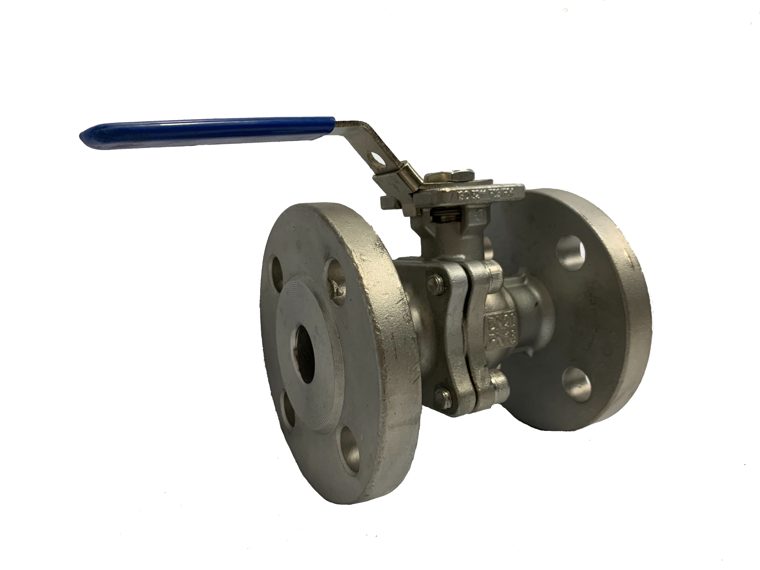

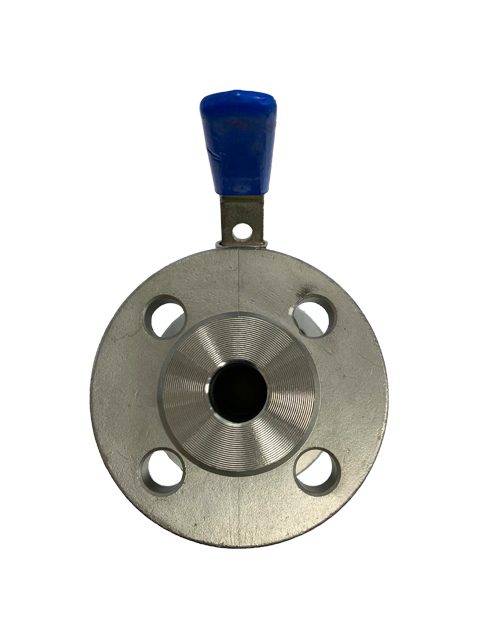

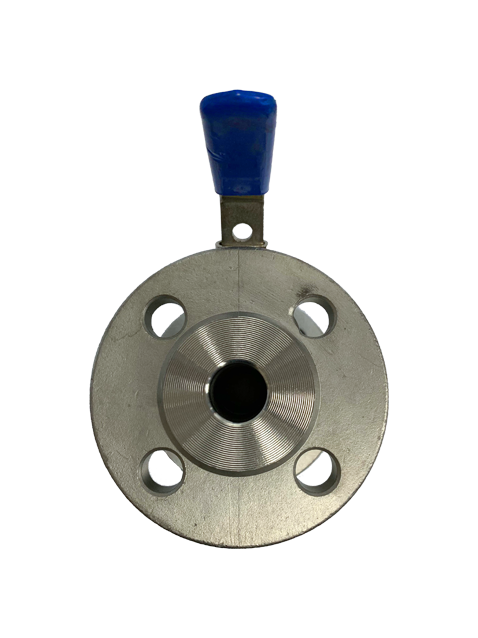

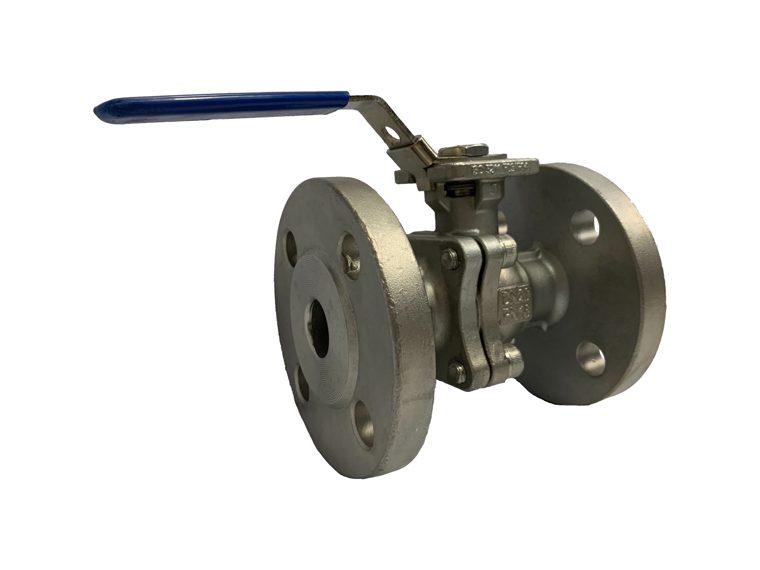

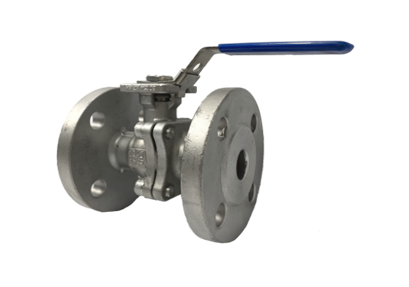

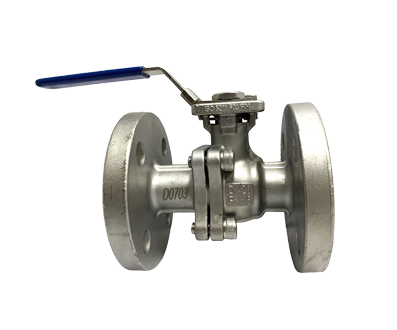

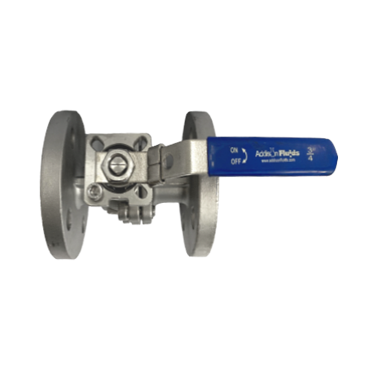

PN10/16 SS316 Flange End Ball Valve
PN10/16 SS316 Flange End Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in Stainless Steel AISI SS316, rated PN10 / PN16. Excellent corrosion resistance for seawater, chemical and hygienic service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 3/4” to 6” (DN20 to DN150) |
|---|---|
| Type | Full Bore Type Ball Valve |
| Flange Connection | PN10 / PN16 |
| Working Pressure | PN10 / PN16 |
| Valve Body Material | SS316 / CF8M |
| Fire-Safe Design | API 607 |
| Design | Blow-out Proof Stem Design |
| Applicable Medium | General Oil, Gas & Water Applications |
| Temperature Range | -29°C to 150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteMaterial List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Cap | SS316, CF8M |
| 2 | Bolt | SS316 |
| 3 | Nut | SS316 |
| 4 | Gasket | PTFE |
| 5 | Seat | PTFE |
| 6 | Ball | SS316 |
| 7 | Body | SS316, CF8M |
| 8 | Stem | SS316 |
| 9 | Thrust Washer | PTFE |
| 10 | Packing | PTFE |
| 11 | Gland | SS316 |
| 12 | Flange Gland | SS316 , CF8M |
| 13 | Orientation Patch | SS201 |
| 14 | Handle | SS201 |
| 15 | Bolt | SS304 |
| 16 | Ball | SS304 |
| 17 | Body | SS304 |
Main Technical Parameters
| Norminal Pressure | 1.6 MPa |
|---|---|
| Shell Test Pressure | 2.4 MPa |
| Gas Test | 0.6 MPa |
| Max Working Temperature | -29°C to 150°C |
Technical Specifications
- Basic design and manufacture according to EN 1983
- Face-to-face dimensions complied with EN 558 & S15
- Flange ends complied with EN 1092-1
- Inspection and tested according to EN 122661-1

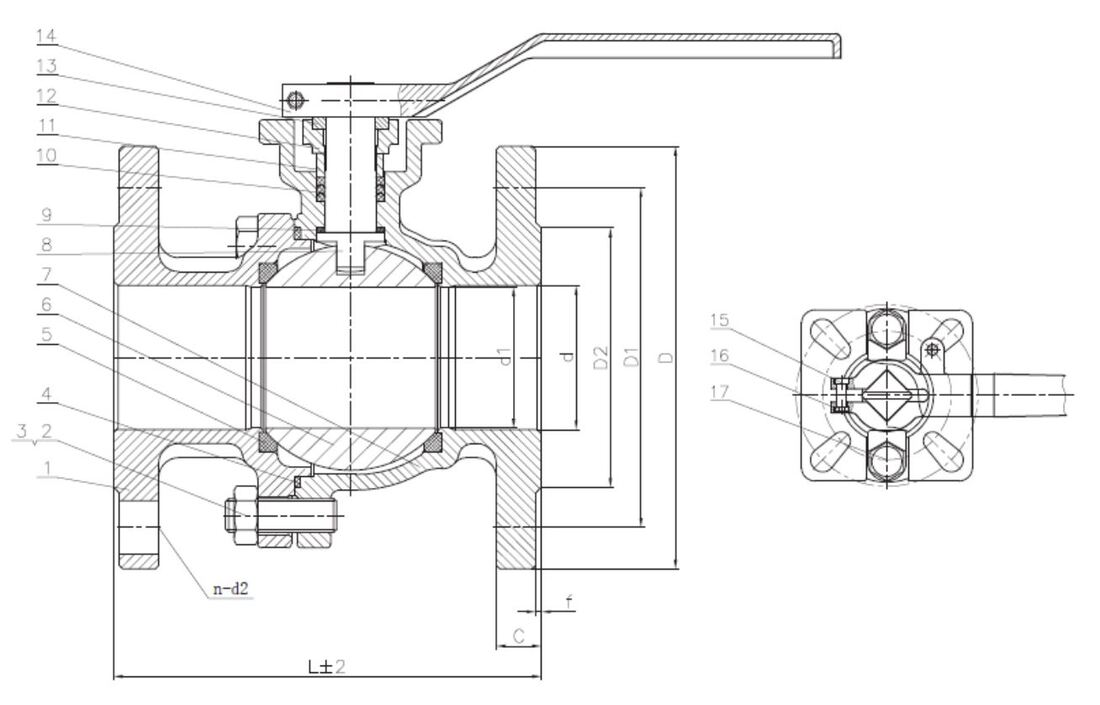

Dimensional Drawing
Downloads
Catalogues & literature
Frequently Asked Questions
What is the size range of PN10/16 SS316 flange end ball valves?
The size range of the PN10/16 SS316 flange end ball valves is from 3/4 inches to 6 inches.
What is PN10/16 SS316 flange end ball valves made of?
It is made of stainless steel SS316.
What is the working pressure of PN10/16 SS316 flange end ball valves?
The working pressure that PN10/16 SS316 flange end ball valves can withstand is 16 bar.
What is the type of connection for PN10/16 SS316 flange end ball valves?
The connection type of PN10/16 SS316 flange end ball valves is PN10/16 Flange connection.
What is the working temperature range of PN10/16 SS316 flange end ball valves?
The working temperature range of PN10/16 SS316 flange end ball valves is from -29°C to 150°C.
Is PN10/16 SS316 flange end ball valve categorizes as a full bore?
Yes. It is a full bore (standard bore) ball valve.
