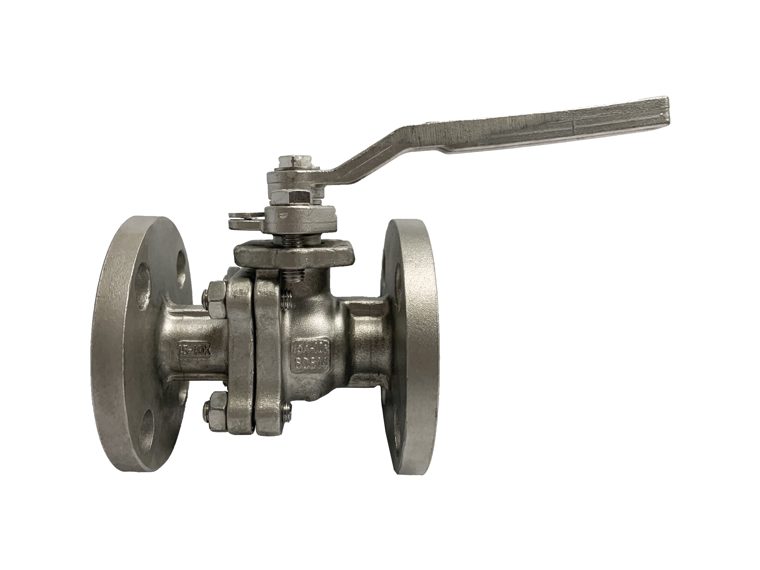

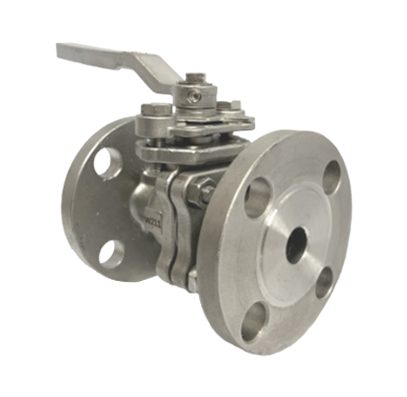

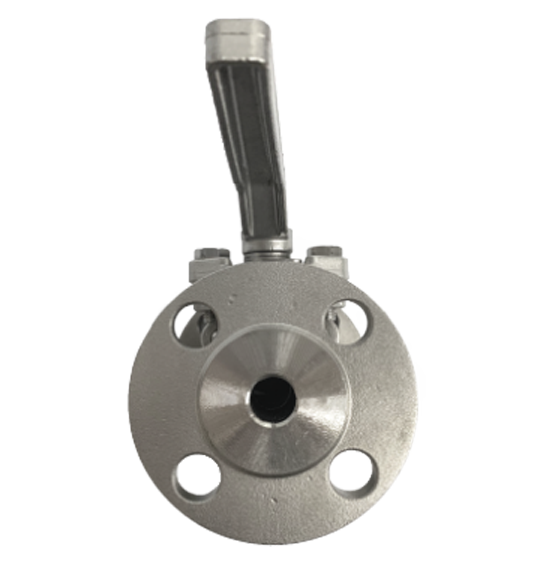

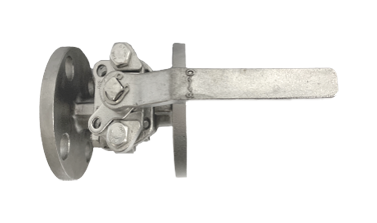

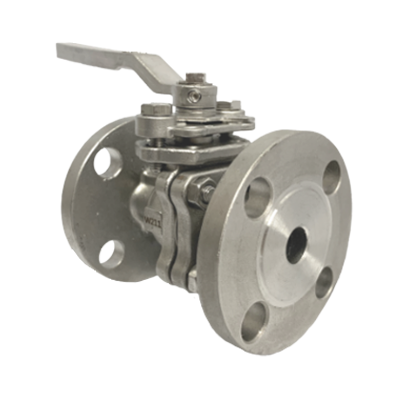

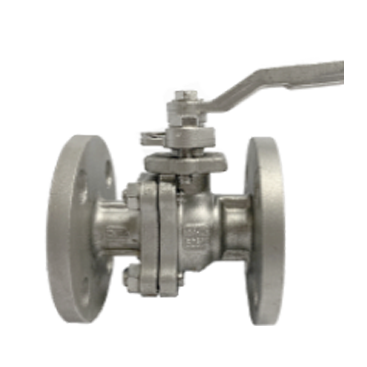

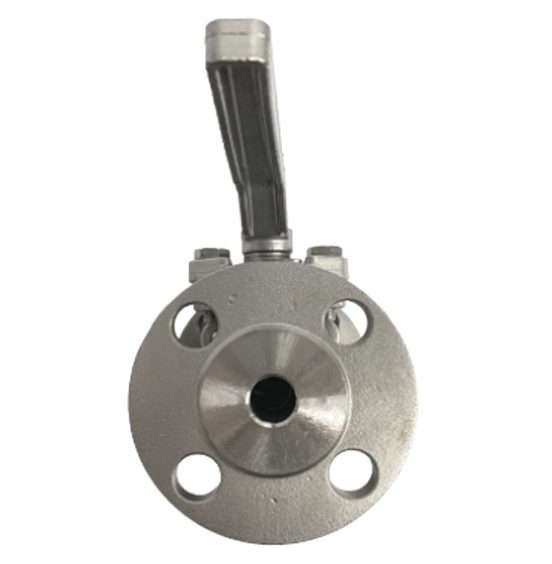

JIS 10K SS316 Flange End Ball Valve
JIS 10K SS316 Flange End Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in Stainless Steel AISI SS316, rated JIS 10K (PN10). Excellent corrosion resistance for seawater, chemical and hygienic service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1/2” to 6” (DN15 to DN150) |
|---|---|
| Type | Full Bore Type Ball Valve |
| Flange Connection Standard | JIS 10K |
| Working Pressure | 10kg/cm² |
| Valve Body Material | SS316 / CF8M |
| Fire-Safe Design | API 607 |
| Design | Blow-out Proof Stem Design |
| Applicable Medium | General Oil, Gas & Water Applications |
| Temperature Range | -29°C to 150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteMaterial List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Left Body | SS316, CF8M |
| 2 | Stud Bolt | SS304 |
| 3 | Nut | SS304 |
| 4 | Ball | SS316 |
| 5 | Seat | PTFE |
| 6 | Body | SS316, CF8M |
| 7 | Stem | SS316 |
| 8 | Gasket | PTFE |
| 9 | O Ring | PTFE |
| 10 | Hexagon Screw | SS304 |
| 11 | Packing | PTFE |
| 12 | Bonnet | SS316 |
| 13 | Stop Block | SS304 |
| 14 | Handle | SS201 |
Main Technical Parameters
| Norminal Pressure | JIS 10K |
|---|---|
| Shell Test Pressure | 3.0 MPa |
| Tightness Test | 2.2 MPa |
| Gas-Tightness Test | 0.6 MPa |
| Max working temperature | -29 ° C to 150°C |
Technical Specifications
- Basic design and manufacture according to JIS B2071
- Face-to-face dimensions complied with JIS B2002
- Flange ends complied with JIS B2220
- Inspection and tested according to JIS B2003

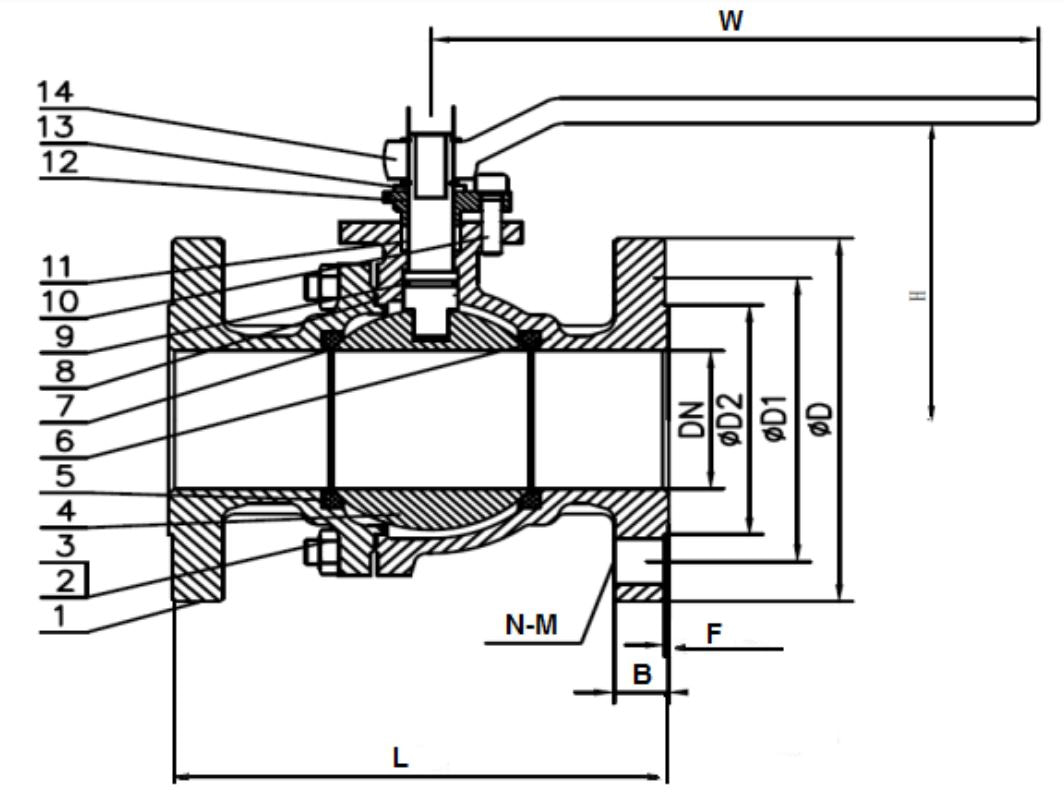

Dimensional Drawing
Downloads
Catalogues & literature
Frequently Asked Questions
What is the size range of JIS 10K SS316 flange end ball valves?
The size range of the JIS 10K SS316 flange end ball valves is from 1/2 inches to 6 inches.
What is JIS 10K SS316 flange end ball valves made of?
It is made of stainless steel SS316.
What is the working pressure of JIS 10K SS316 flange end ball valves?
The working pressure that JIS 10K SS316 flange end ball valves can withstand is 10kg/cm².
What is the working temperature range of JIS 10K SS316 flange end ball valves?
The working temperature range of JIS 10K SS316 flange end ball valves is from -29°C to 150°C.
What is the type of connection for JIS 10K SS316 flange end ball valves?
The connection type of JIS 10K SS316 flange end ball valves is JIS 10K Flange connection.
Is JIS 10K SS316 flange end ball valve categorizes as a full bore?
Yes. It is a full bore (standard bore) ball valve.
