Low Pressure Ball Valves
1 PC Ball Valve
1 PC Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in stainless steel SS316, rated to 1000 PSI. Material selected to suit the medium and pressure.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1/4" – 4" (DN8 - DN100) |
|---|---|
| Body Design | 1 PC Body Design |
| Body Material | Stainless Steel SS316 |
| Operations | Reduced Bore, Quarter Turn |
| Working Pressure | 1000 PSI |
| Connections | BSPP / NPT |
| Seat / Seal | PTFE |
| Applicable Medium | General Oil, Gas & Water Applications |
| Design | Blow-out Proof Stem Design |
| Temperature Range | -29°C to +150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteAbout 1 PC Ball Valve
1 PC ball valve is a reduced bore type ball valve that is used to start or stop the flow of a pipeline system. It is designed with a quarter turn handle to turn the ball in 90 degrees, either in open position or close position. The locking mechanism on the handle is to lock the handle when the valve is in open position or close position.
Reduced bore type ball valve is a valve where the bore size is smaller than the internal diameter of the pipework which it is installed on. It is available in stainless steel SS316 material and comes with PTFE seat. It is made in one body part, which leads to cost effectiveness and reduced leakage paths.
Material List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | SS316, CF8M |
| 2 | Cap | SS316 |
| 3 | Seat | PTFE |
| 4 | Ball | SS316 |
| 5 | Seal Gasket | PTFE |
| 6 | Stem Seal | PTFE |
| 7 | Stem | SS316 |
| 8 | Anti-Static Device | SS304 |
| 9 | Stem Packing | PTFE |
| 10 | Packing Gland | SS304 |
| 11 | Spring Washer | SS301 |
| 12 | Handle | SS304 |
| 13 | Stem Nut | SS304 |
Pressure-Temperature Rating

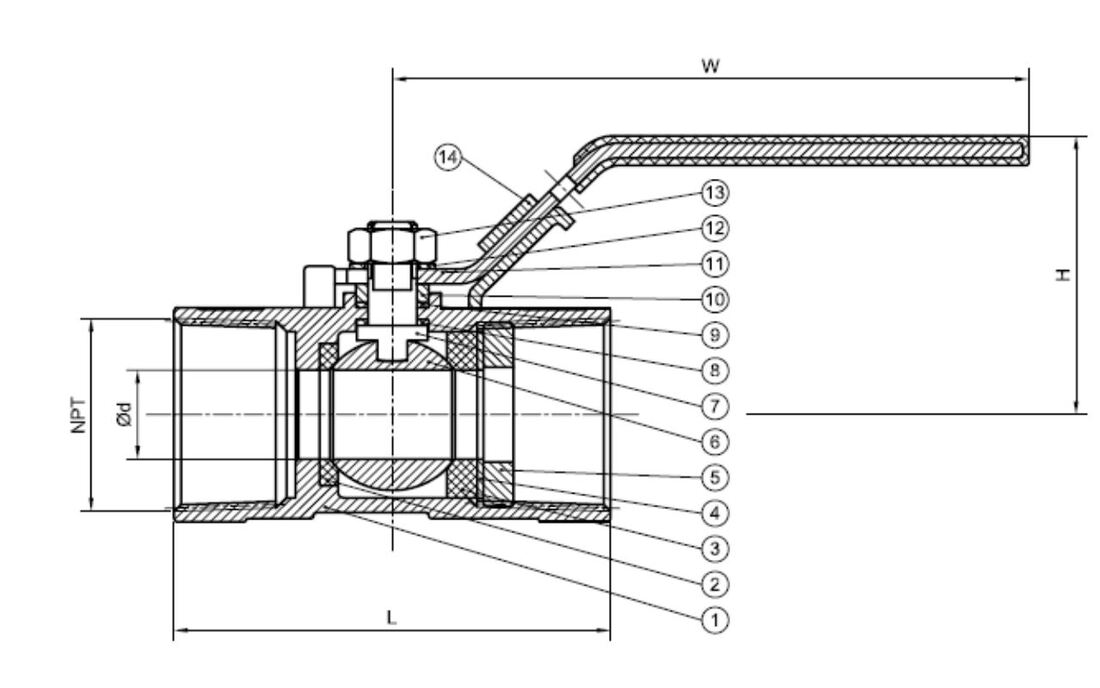

Dimensional Drawing
Downloads
Catalogues & literature
Frequently Asked Questions
What is a one-piece (1 PC) ball valve?
A 1 PC ball valve has its body and end connections machined from a single piece of material. With fewer joints it is compact and highly leak-resistant, and it uses a quarter-turn (90°) ball to open or shut off flow.
What size range is available?
From 1/4" to 4" (DN8 – DN100), covering most small-bore isolation applications.
What is it made of?
The body is stainless steel SS316 for corrosion resistance, with PTFE seats and seals that give a bubble-tight shut-off.
What are the pressure and temperature ratings?
Rated to 1000 psi, with a working temperature of roughly -29°C to +150°C. Actual limits vary with size and seat material.
Is it full bore or reduced bore?
1 PC ball valves are reduced bore — the ball’s opening is smaller than the pipe’s inside diameter. This keeps them compact and economical but slightly restricts flow; choose a full-bore valve where minimal pressure drop is essential.
What end connections are available?
Threaded ends, typically BSPP or NPT. The valve and the pipe must use the same thread standard.
What is it best used for?
On/off isolation rather than throttling — suitable for oil, gas, water, compressed air, steam and general utility lines.
What documentation can be supplied?
Material / mill certificates (EN 10204 3.1) and export documentation are available on request.
