Low Pressure Ball Valves

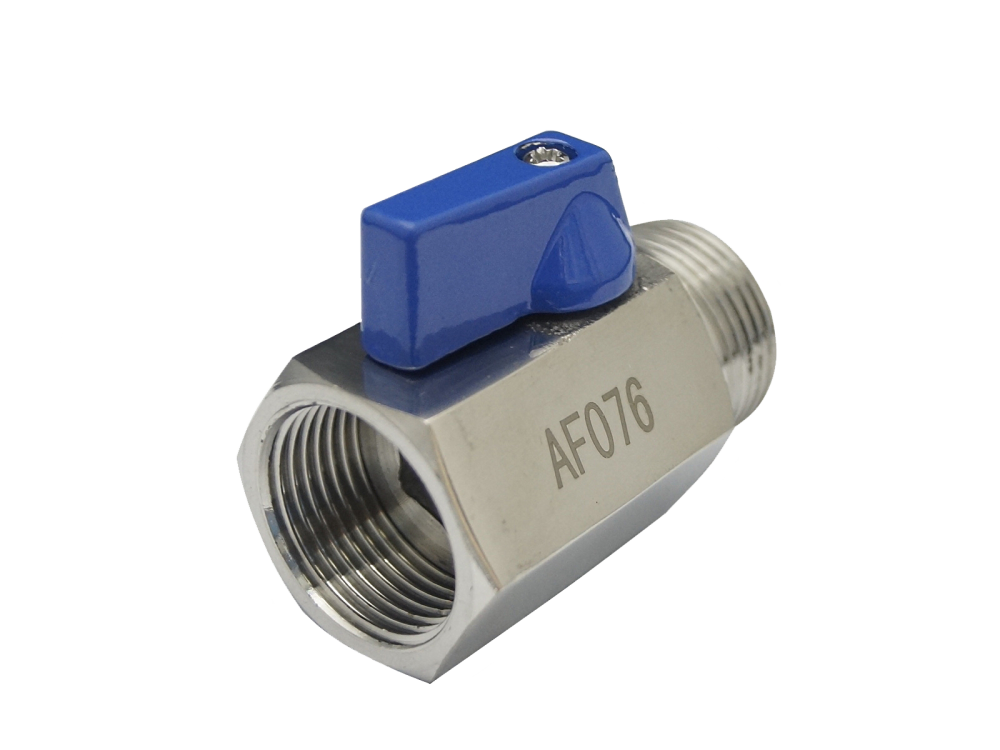

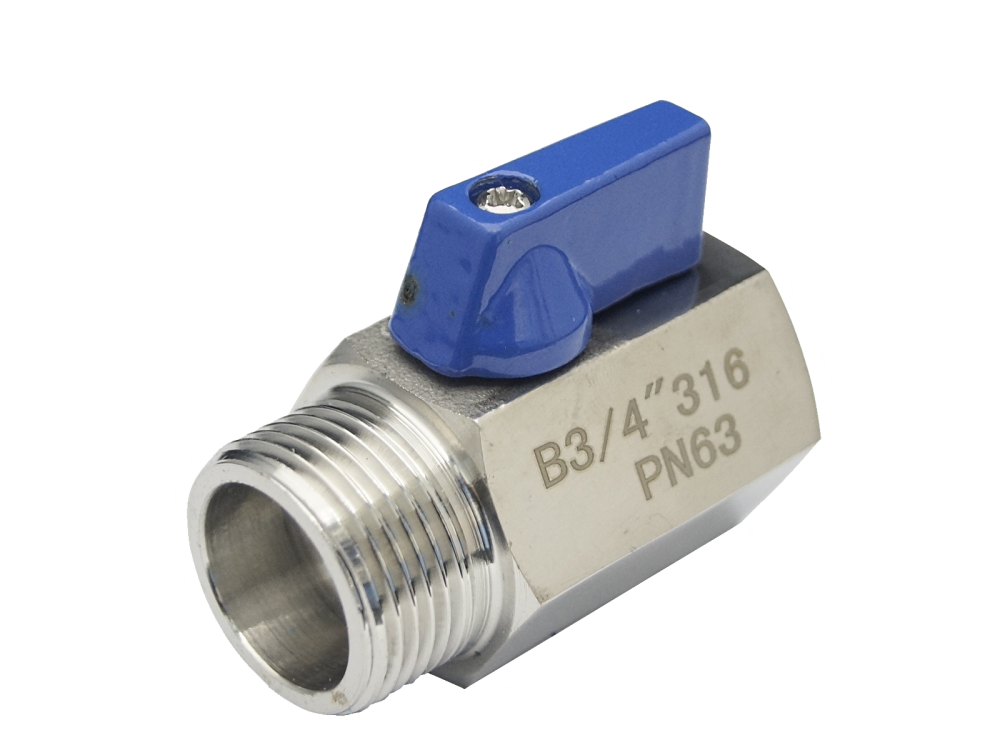

Stainless Steel Mini Ball Valve

Stainless Steel Mini Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in Stainless Steel AISI SS316, rated to 1000 PSI (PN 63). Excellent corrosion resistance for seawater, chemical and hygienic service.

Bubble-tight shut-off (soft-seated types)
Corrosion-resistant materials
Ex-stock in common sizes
Actuation options on request

Brand

AF Hydro

Request a Quote Back to Low Pressure Ball Valves

Specifications

Size Range	1/8" – 1" (DN6 - DN25)
Body Design	Male x Female Mini Ball Valve
Body Material	Stainless Steel SS316
Operations	Reduced Bore Type with Solid Ball
Working Pressure	1000 PSI / PN 63
Connections	BSPP / NPT
Applicable Medium	General Oil, Gas & Water Applications
Design	Blow-out Proof Stem Design
Temperature Range	-29°C to +150°C

Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.

Typical applications

Water, seawater and utility distribution
Compressed air and low-pressure gas
Steam and condensate (rated types)
Marine, building services and process lines

Ordering & procurement

Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.

Request a quote

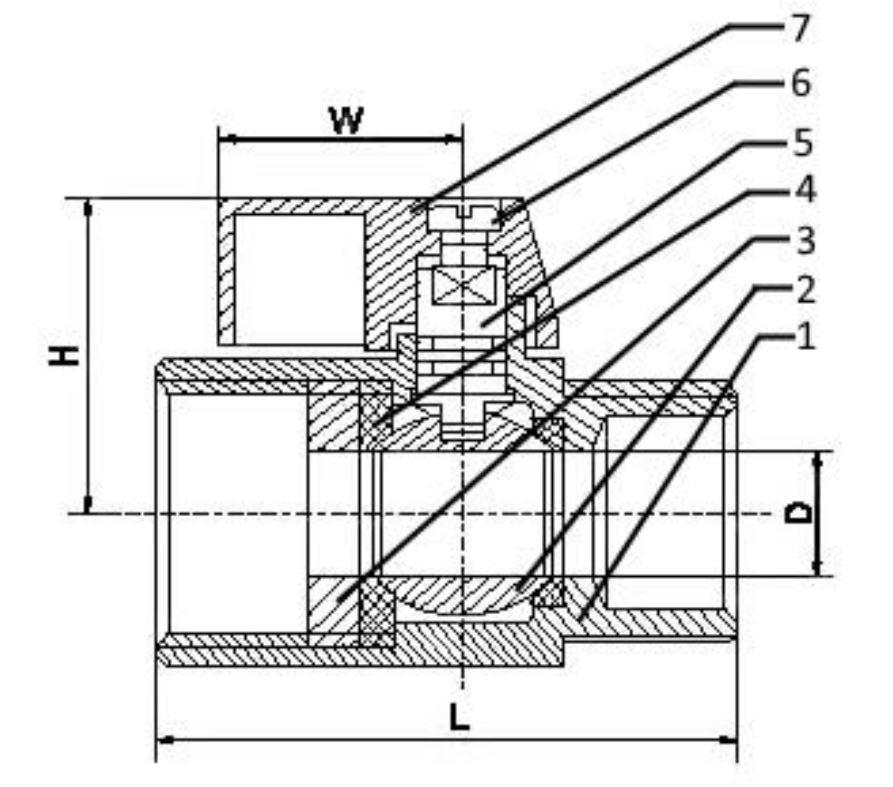

Product Information of Stainless Steel Mini Ball Valve

Mini ball valves are suited to small, confined spaces where larger valves are not necessary. It is a quarter-turn ball valve whose handle is pivoted 90° to the open or close position, commonly installed in residential and light-commercial applications such as domestic hot and cold water systems, natural or bottled gas, and compressed-air systems.

It is a reduced bore type ball valve with one male-threaded end and one female-threaded end, available in BSPP or NPT thread. The material is stainless steel SS316 for better corrosion resistance.
