Low Pressure Ball Valves

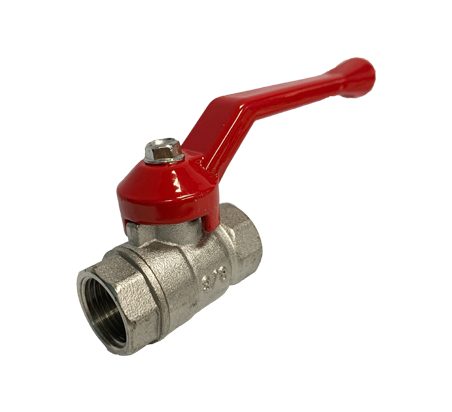

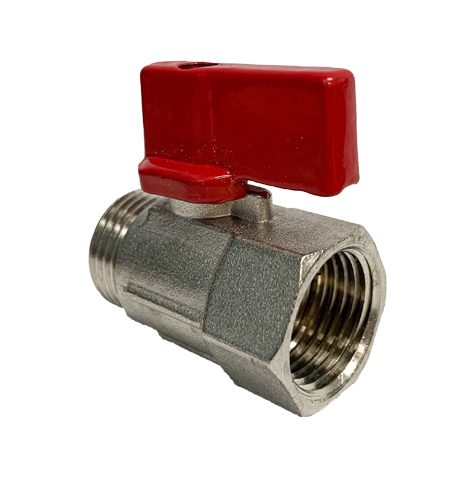

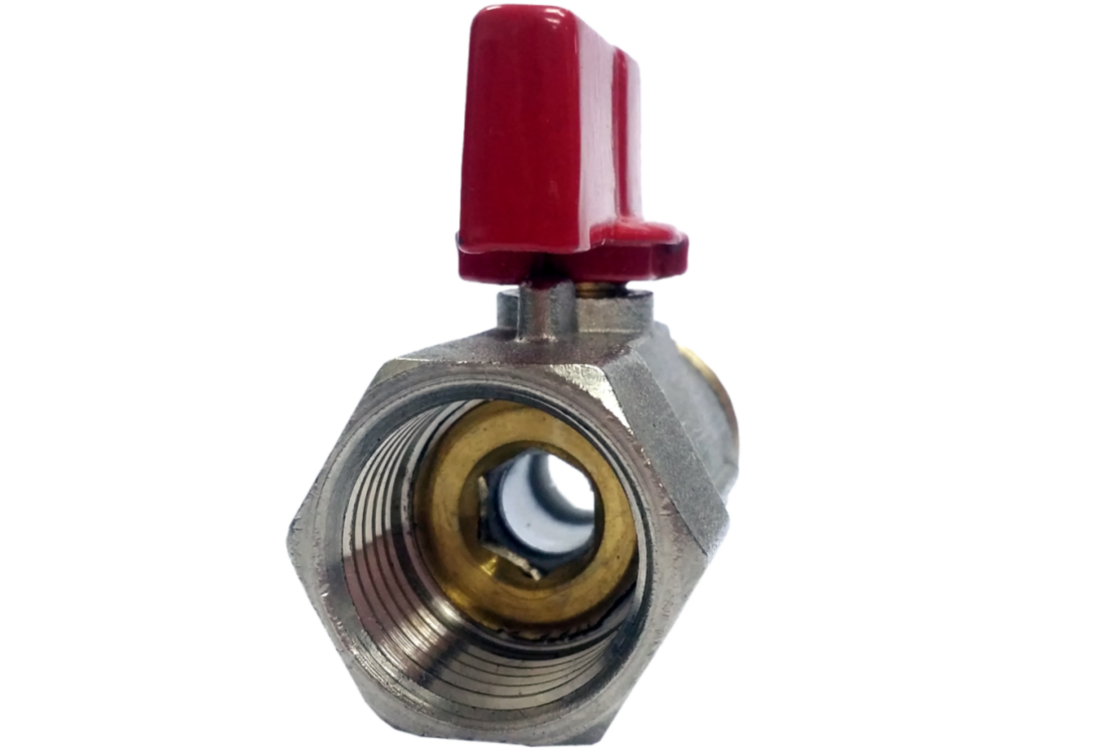

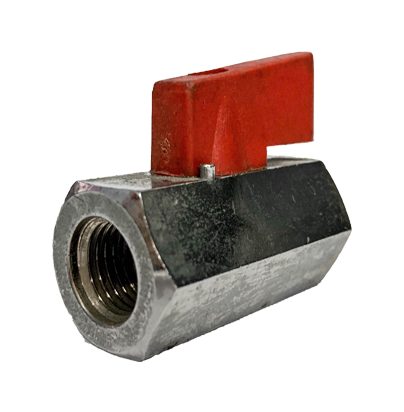

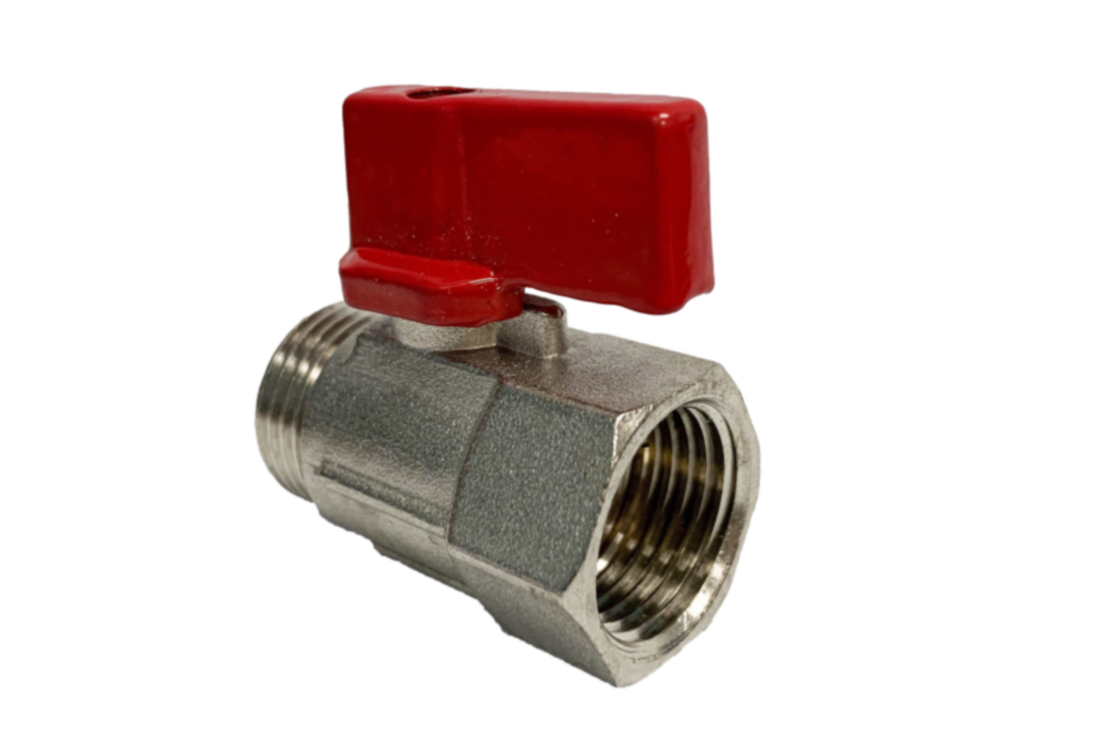

Brass Mini Ball Valve
Brass Mini Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in Brass CW617N, rated to 300 PSI. Economical for water, air and low-pressure general service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1/4" – 3/4" (DN8 - DN20) |
|---|---|
| Body Material | Brass |
| Plate | Nickel Plated |
| Working Pressure | 300 PSI |
| Connections | BSPP |
| Applicable Medium | General Oil, Gas & Water Applications |
| Design | Blow-out Proof Stem Design |
| Temperature Range | -29°C to +150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct information
Product Information of Brass Mini Ball Valve
Material List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Brass |
| 2 | Cap | Brass |
| 3 | Seat | PTFE |
| 4 | Ball | Hard Chromed Brass |
| 5 | Stem | Brass |
| 6 | Handle | Aluminium |
| 7 | O Ring | NBR |
| 8 | Nut | Steel |

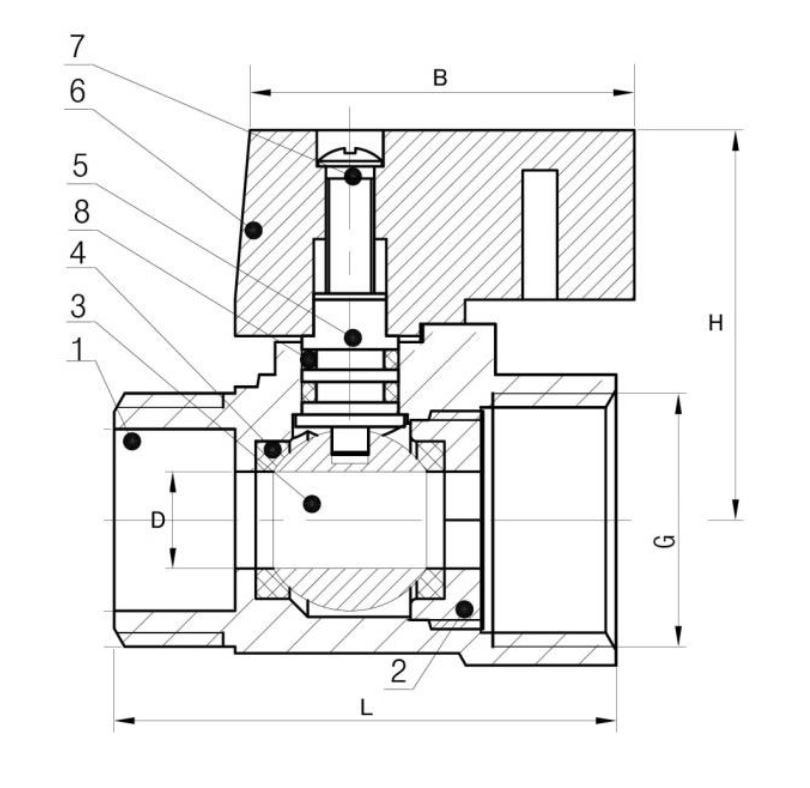

Dimensional Drawing
