Low Pressure Ball Valves

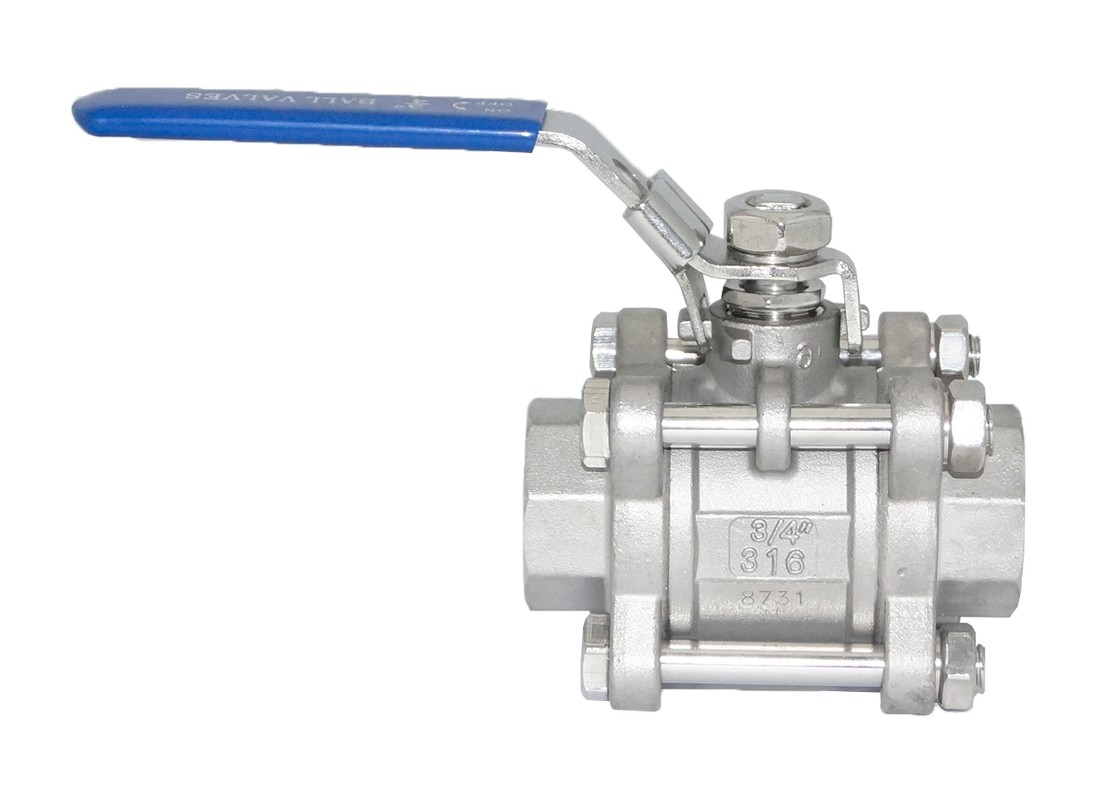

3 PC Ball Valve
3 PC Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in stainless steel SS316, rated to 1000 PSI. Material selected to suit the medium and pressure.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1/4" – 4" (DN8 - DN100) |
|---|---|
| Body Design | 3 PCs Body Design |
| Body Material | Stainless Steel SS316 |
| Operations | Standard Bore, Quarter Turn |
| Working Pressure | 1000 PSI |
| Connections | BSPP / NPT |
| Seat / Seal | PTFE |
| Applicable Medium | General Oil, Gas & Water Applications |
| Design | Blow-out Proof Stem Design |
| Temperature Range | -29°C to +150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quote3 PC Threaded / Socket Weld End Ball Valve
A 3 PC ball valve has three pieces — a body and two end caps — connected to pipe ends by welding, threading or with flanges. The quarter-turn handle turns 90° to open or close the valve, with a locking device that prevents accidental operation when locked in the open or close position. It helps avoid line shutdown during maintenance and separates the valve connection ports from the body. A full bore ball valve has a bore the same size as the pipe’s internal diameter. The 3 PC ball valve is available in stainless steel SS316 with PTFE sealing.
Threaded End
The 3 PC threaded end ball valve is used to allow or stop fluid flow in a pipework system. It is full bore with a quarter-turn handle that turns 90° to set the valve open or closed, and a locking mechanism keeps the handle from turning accidentally. It consists of the valve body and two threaded end connections, assembled together with bolts through the bolt holes and tightened with nuts. The two threaded connections join to threaded-type pipe ends before the body is assembled onto them, and the body can be removed for repair by removing the nuts and bolts without removing the end connections. Available in stainless steel SS316 with PTFE sealing.
Socket Weld End
The 3 PC socket weld ball valve starts or stops fluid flow in a pipeline system. It is full bore with a quarter-turn handle turning 90° to open or close the valve, with a locking device to fix it in the open or close position. It consists of two socket weld end connections and the valve body, assembled with bolts and nuts. The two socket weld connections are welded to plain-end pipe before the body is assembled onto them, and the body can be removed for cleaning without removing the welded connections. Available in stainless steel SS316 with PTFE sealing.
Material List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Bolt | A193 B8 |
| 2 | Bolt Nut | A194 8 |
| 3 | Bolt Washer | 65Mn |
| 4 | Body | CF8M |
| 5 | Body Connector | CF8M |
| 6 | Seat Ring | PTFE |
| 7 | Ball | CF8M |
| 8 | Stem | AISI 316 |
| 9 | Thrust Washer | PTFE |
| 10 | Stem Packing | PTFE |
| 11 | Gland | AISI 304 |
| 12 | Handle | AISI 201 |
| 13 | Wrench Washer | AISI 304 |
| 14 | Handle Nut | AISI 304 |
| 15 | Locking Device | AISI 304 |
Pressure-Temperature Rating
Dimensional Drawing

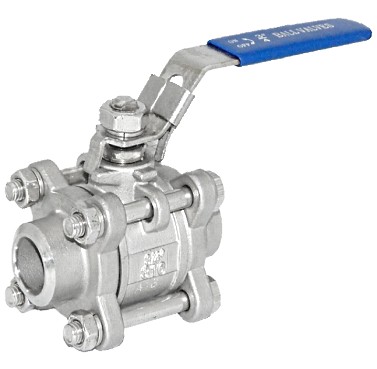

3 PC Butt Weld End Ball Valve
The 3 PC butt weld ball valve is a full bore ball valve installed on a pipeline to allow or stop fluid flow. It consists of three pieces — two butt weld connection ends and the valve body — assembled with bolts and nuts. The two butt weld connections are welded to butt-weld-type pipe ends before being attached to the valve body, and the body can be removed for maintenance without removing the welded connection ends. Available in stainless steel SS316 with PTFE seat.
Material List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Nut | 304 |
| 2 | Spring Washer | 304 |
| 3 | Handle | 201 |
| 4 | Gland Nut | 304 |
| 5 | Packing | PTFE |
| 6 | Thrust Washer | PTFE |
| 7 | Stem | 304/316 |
| 8 | Bolt | 304 |
| 9 | Spring Washer | 304 |
| 10 | Nut | 304 |
| 11 | Cap | CF8/CF8M |
| 12 | Seat | PTFE/RPTFE |
| 13 | Body | CF8/CF8M |
| 14 | Ball | 304/316 |
Pressure-Temperature Rating
Dimensional Drawing
Frequently Asked Questions
What is the size range of 3 piece ball valves
The size range of 3 piece ball valves is from 1/4 inches to 4 inches.
What is a 3 piece ball valve made of
It is made of stainless steel SS316.
What is the working pressure of 3 piece ball valves
The working pressure of 3 piece ball valves is 1,000 psi.
What are the features of 3 piece ball valves
3 piece ball valves comprise of three pieces, including two end caps and a body.
What is the function of 3 piece ball valves
3 piece ball valves are designed to separate the connection portions of the valve assembly from the rest of the body of the valve, preventing a line shutdown if maintenance is required.
What are the types of connection of 3 piece ball valves
They are available in Threaded end (BSPP / NPT) connection and Welding End (Socket Weld / Butt Weld) connections.
