Low Pressure Ball Valves

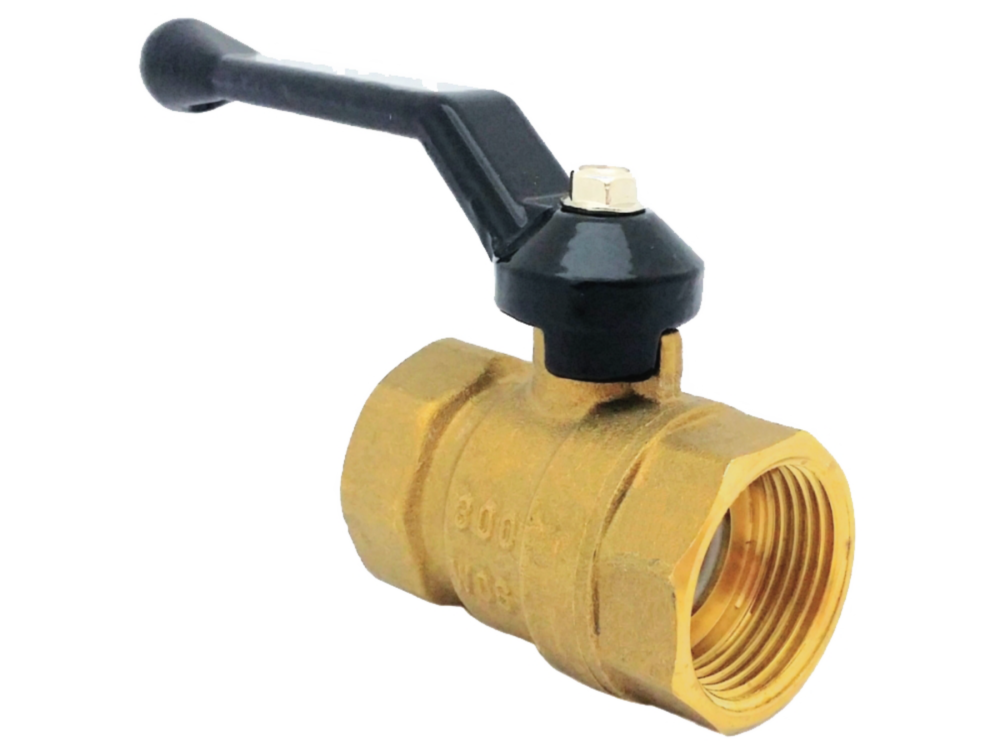

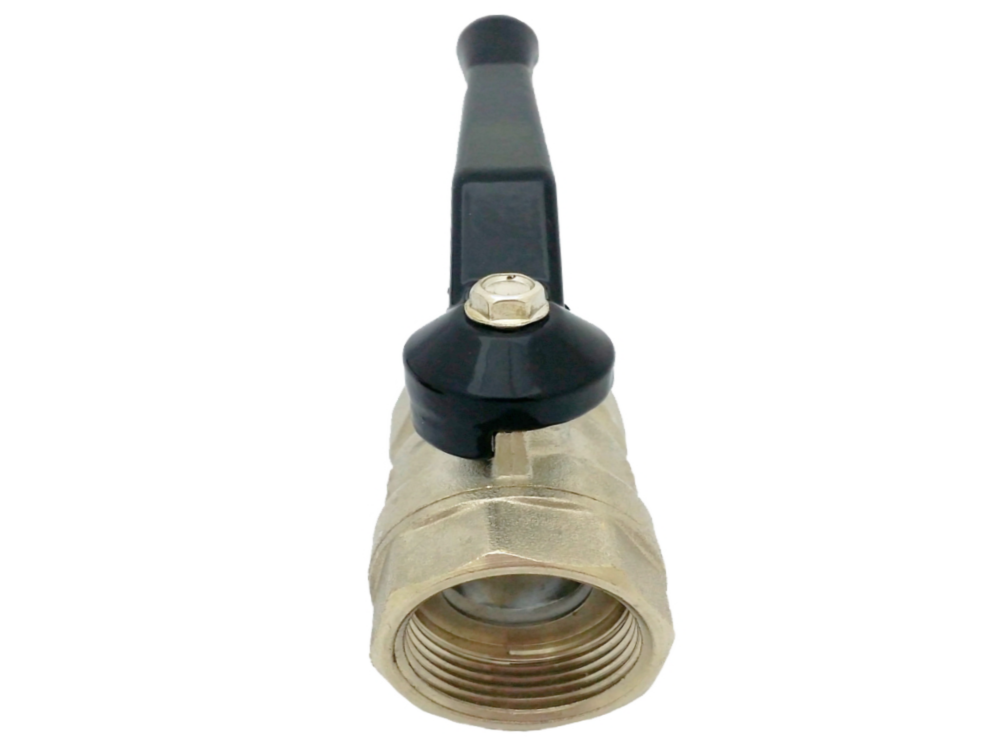

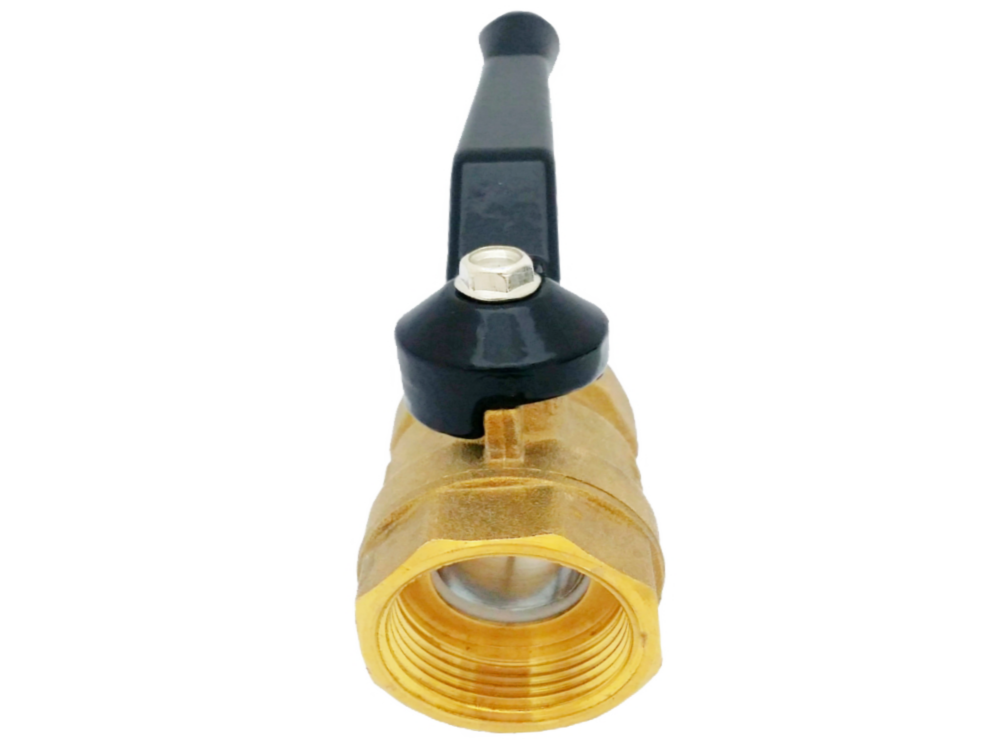

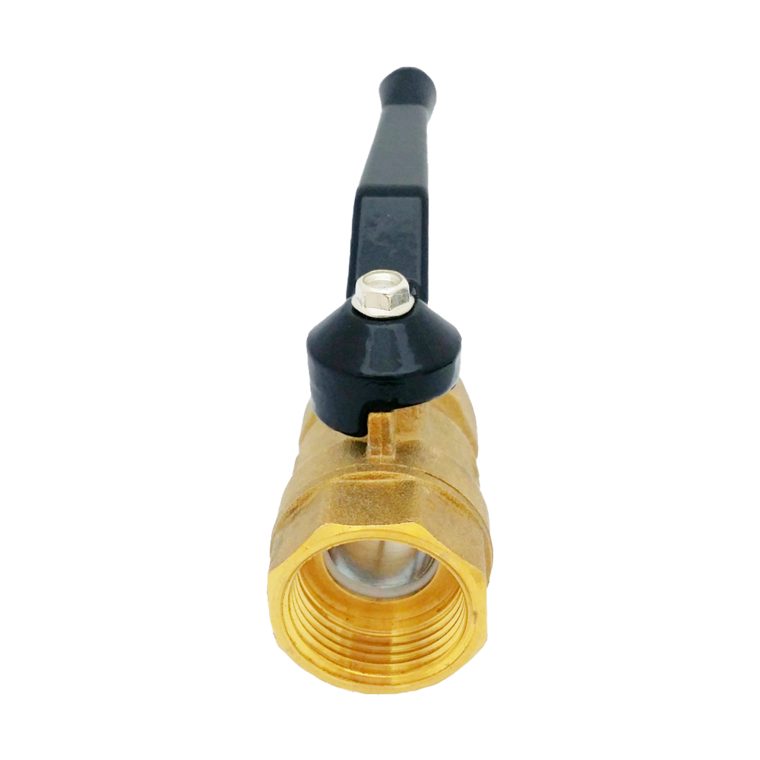

Brass Ball Valve
Brass Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in Brass CW617N, rated to 300 PSI. Economical for water, air and low-pressure general service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1/4" – 4" (DN8 - DN100) |
|---|---|
| Body Material | Brass |
| Type | Nickel plated / Non-nickel plated |
| Operations | Full bore, quarter turn operation |
| Working Pressure | 300 PSI |
| Connections | BSPP / NPT |
| Seat / Seal | PTFE |
| Applicable Medium | General Oil, Gas & Water Applications |
| Design | Blow-out Proof Stem Design |
| Temperature Range | -29°C to +150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct Information of Brass Ball Valve
Brass ball valves are 2-way ball valves used for shut-off applications. They are a quarter-turn type valve, where the handle is pivoted through 90° to open or close the ball. Two coatings are available: nickel plated and non-nickel plated.
Brass ball valves are mostly used for general oil, gas and water applications, in residential and light commercial installations. Typical services include multi-purpose shut-off for domestic hot and cold water systems, natural or bottled gas, and compressed air systems.

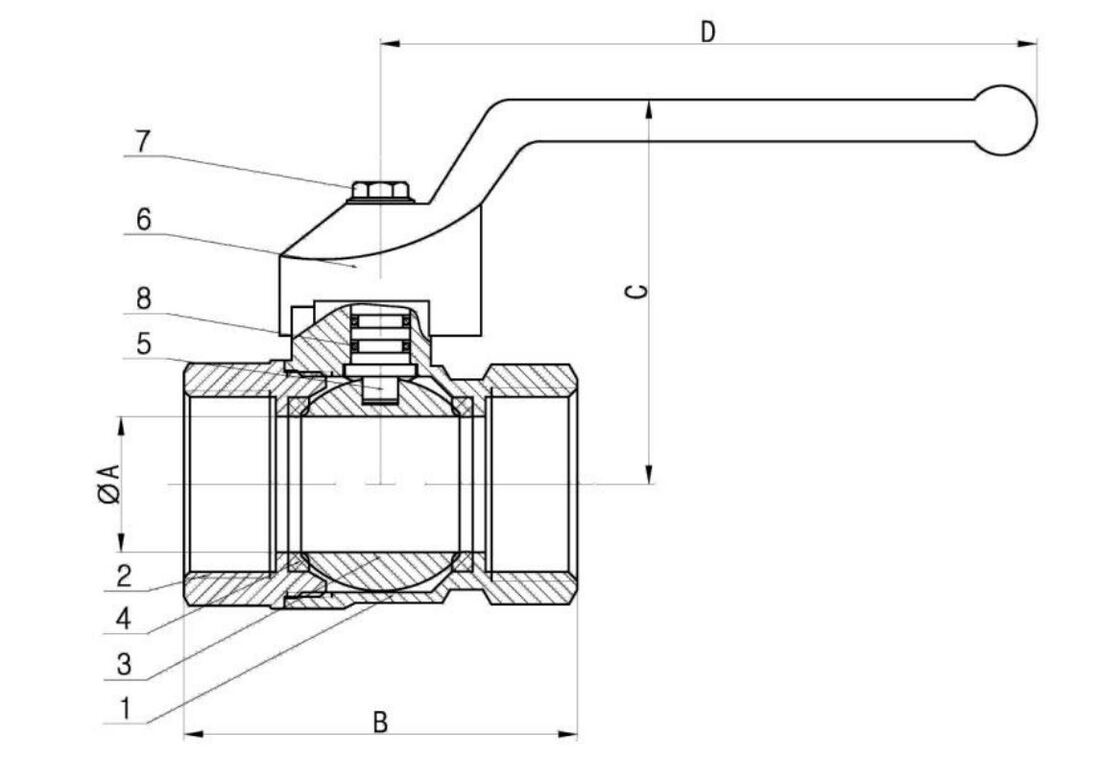

Material List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | Brass |
| 2 | Bonnet | Brass |
| 3 | Ball | Hard Chromed Brass |
| 4 | Seat | PTFE |
| 5 | Stem | Brass |
| 6 | Handle | Aluminium |
| 7 | Nut | Steel |
| 8 | O Ring | NBR |
Dimensional Drawing
Downloads
Catalogues & literature
FAQ
FAQ of Brass Ball Valves
What is the size range of brass ball valves?
Brass ball valves are available from 1/4” to 4” (DN8 to DN100).
What is a brass ball valve made of?
The body, bonnet and stem are brass, the ball is hard chromed brass, the seat is PTFE, the handle is aluminium, the nut is steel and the O-ring is NBR.
What is the working pressure of brass ball valves?
Brass ball valves are rated to a working pressure of 300 PSI.
How many types of brass ball valve are available?
Two types are available: nickel plated and non-nickel plated.
What is the working temperature range of brass ball valves?
−29°C to +150°C.
Is a brass ball valve categorised as full bore?
Yes. It is a full bore (standard bore) ball valve with quarter-turn operation.
