Low Pressure Ball Valves

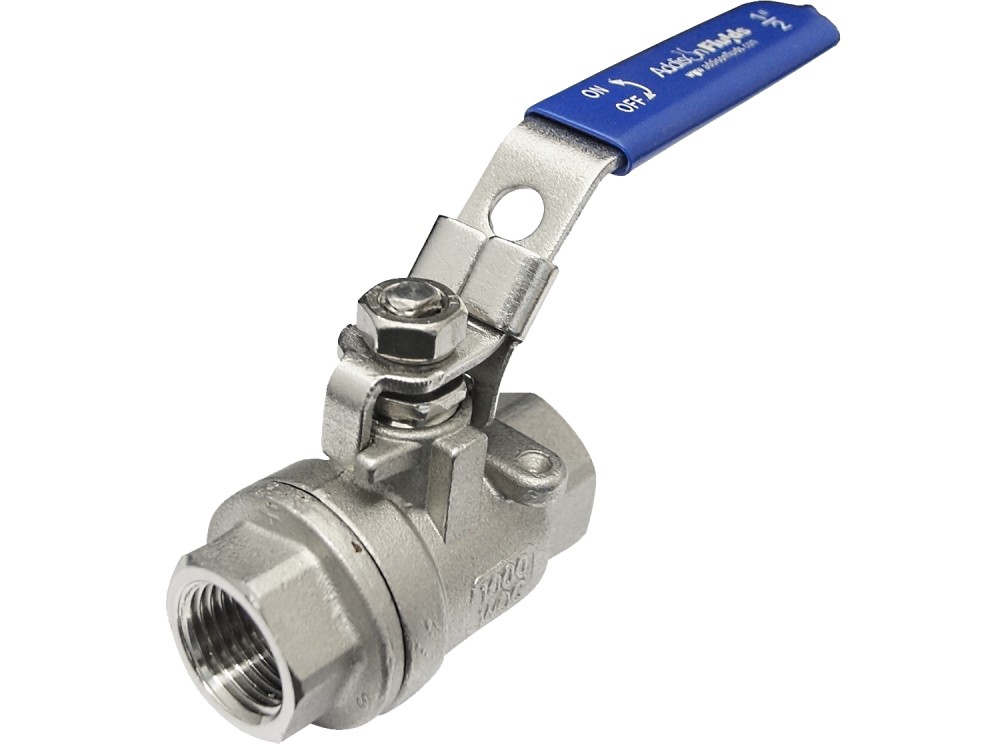

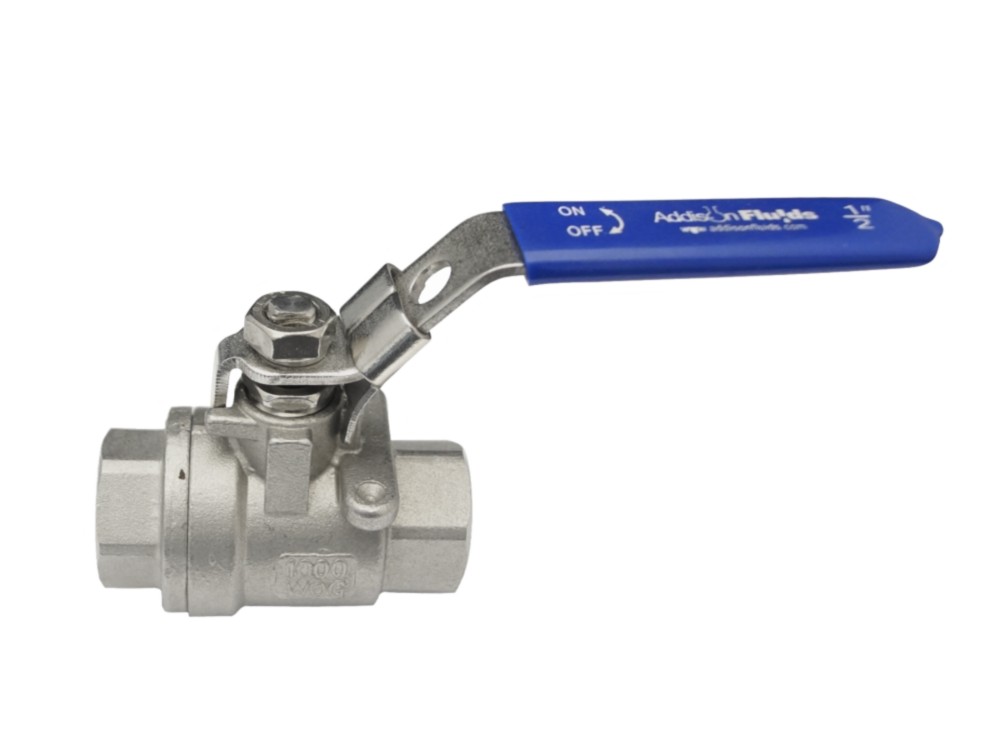

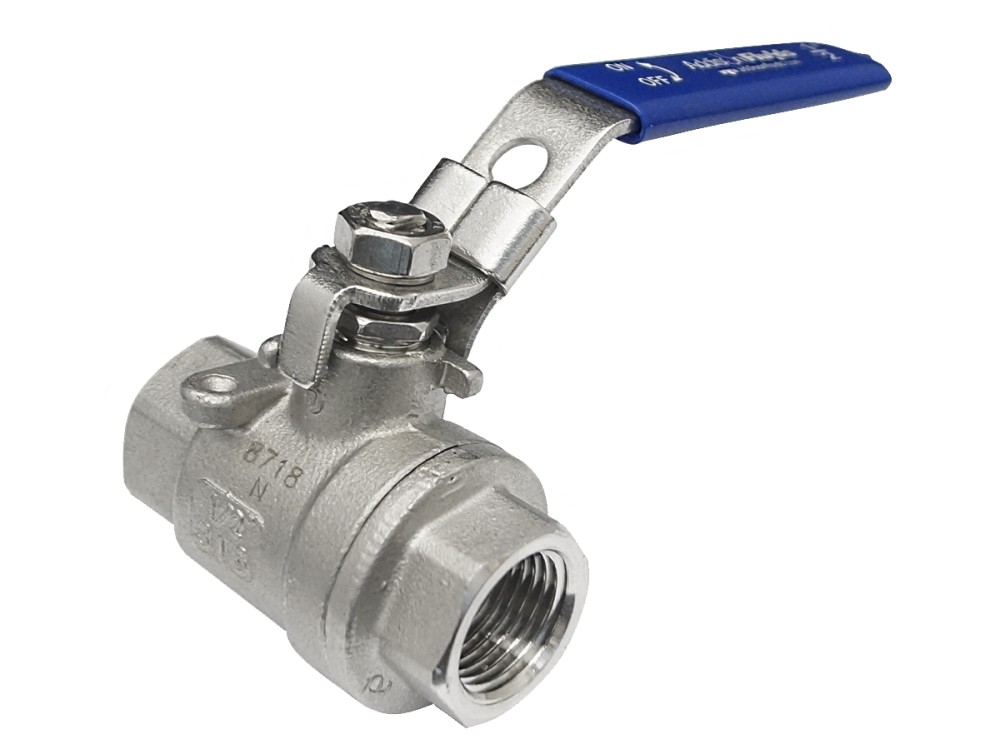

2 PC Ball Valve
2 PC Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in stainless steel SS316, rated to 1000 PSI. Material selected to suit the medium and pressure.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Size Range | 1/4" – 4" (DN8 - DN100) |
|---|---|
| Body Design | 2 PCs Body Design |
| Body Material | Stainless Steel SS316 / CF8M |
| Operations | Standard Bore, Quarter Turn |
| Working Pressure | 1000 PSI / 2000 PSI |
| Connections | BSPP / NPT |
| Seat / Seal | PTFE |
| Applicable Medium | General Oil, Gas & Water Applications |
| Design | Blow-out Proof Stem Design |
| Temperature Range | -29°C to +150°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteMaterial List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | SS316, CF8M |
| 2 | Cap | SS316 |
| 3 | Seat | PTFE |
| 4 | Ball | SS316 |
| 5 | Seal Gasket | PTFE |
| 6 | Stem Seal | PTFE |
| 7 | Stem | SS316 |
| 8 | Anti-Static Device | SS304 |
| 9 | Stem Packing | PTFE |
| 10 | Packing Gland | SS304 |
| 11 | Spring Washer | SS301 |
| 12 | Handle | SS304 |
| 13 | Stem Nut | SS304 |
Pressure-Temperature Rating

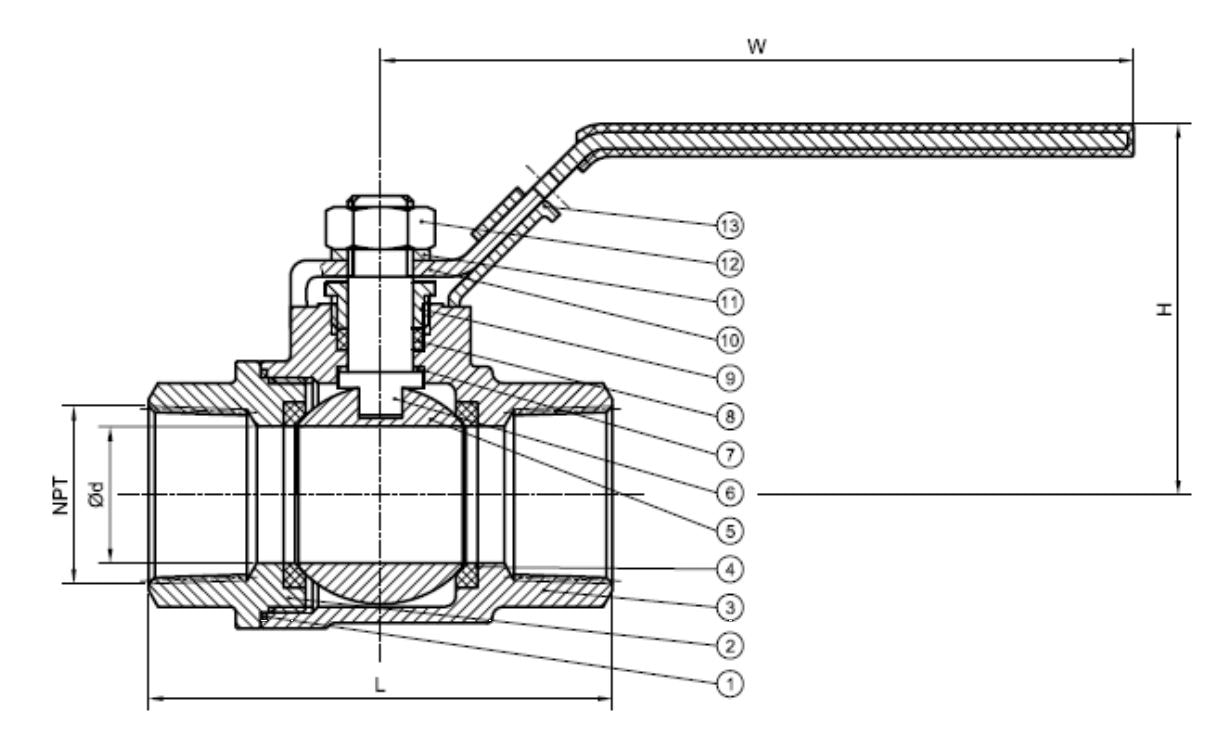

Dimensional Drawing
Frequently Asked Questions
What is the size range of 2 piece ball valves
The size range of 2 piece ball valves is from 1/4 inches to 4 inches.
What is a 2 piece ball valve made of
It is made of stainless steel SS316.
What are the working pressures of 2 piece ball valves
The working pressures of 2 piece ball valves are 1,000 psi and 2,000 psi.
What are the featues of 2 piece ball valves
2 piece ball valves are made up of two separate pieces which are threaded or linked together with bolts and flange assembly. The first piece comprises the end connection and the body, and the second piece fits into the first to secure the trim and give the second end connection.
What is the function of 2 piece ball valves
2 piece ball valves hold the potential of leakage where the two pieces are joined, however at the same time allows disassembly of the valve if the need of replacing the internal parts arises.
Is 2 piece ball valve a reduced bore or standard bore
2-piece ball valve is a full-bore (standard bore) valve with an over-sized ball that matches the size of the hole in the ball to pipeline applications.
