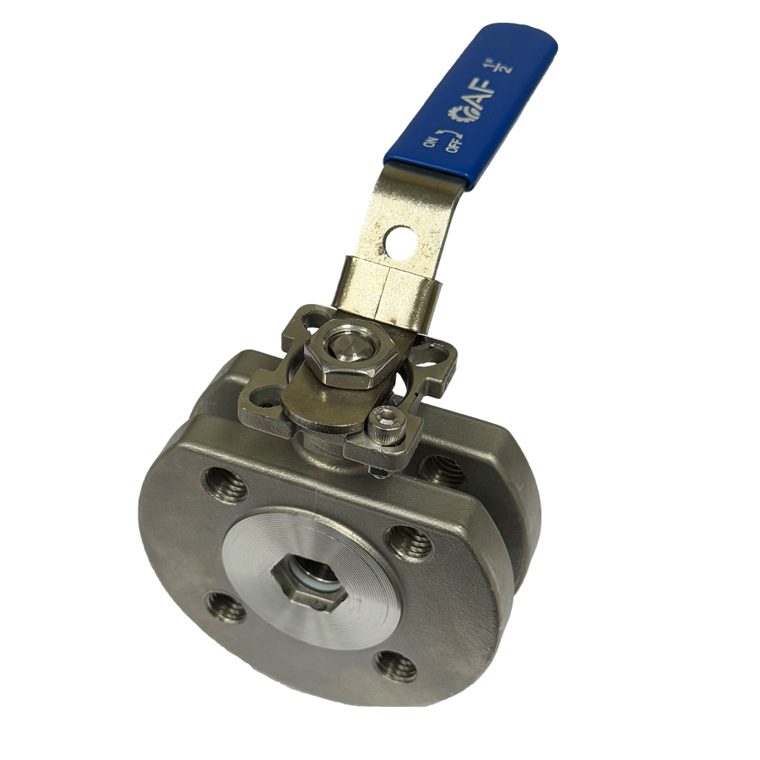

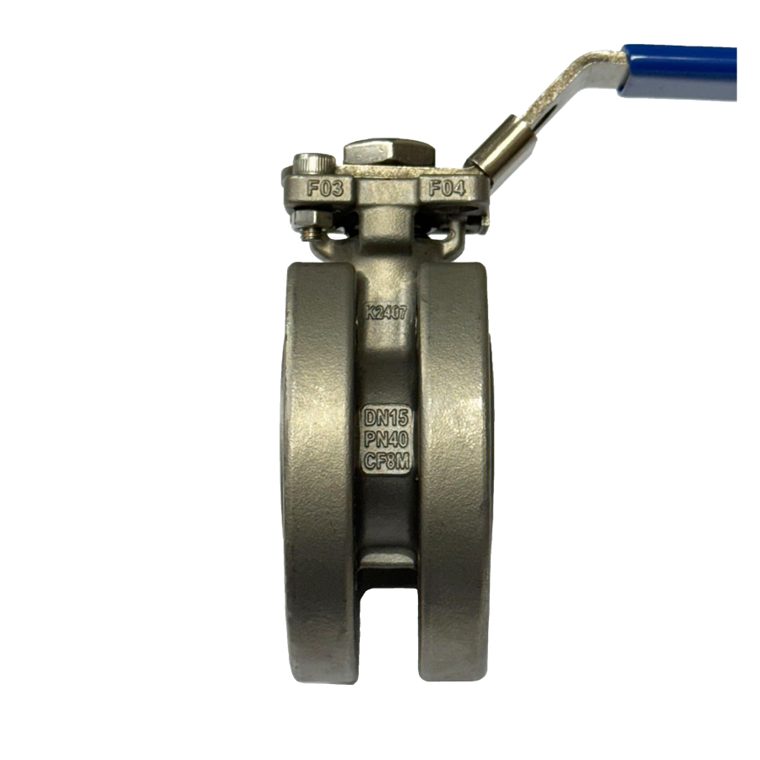

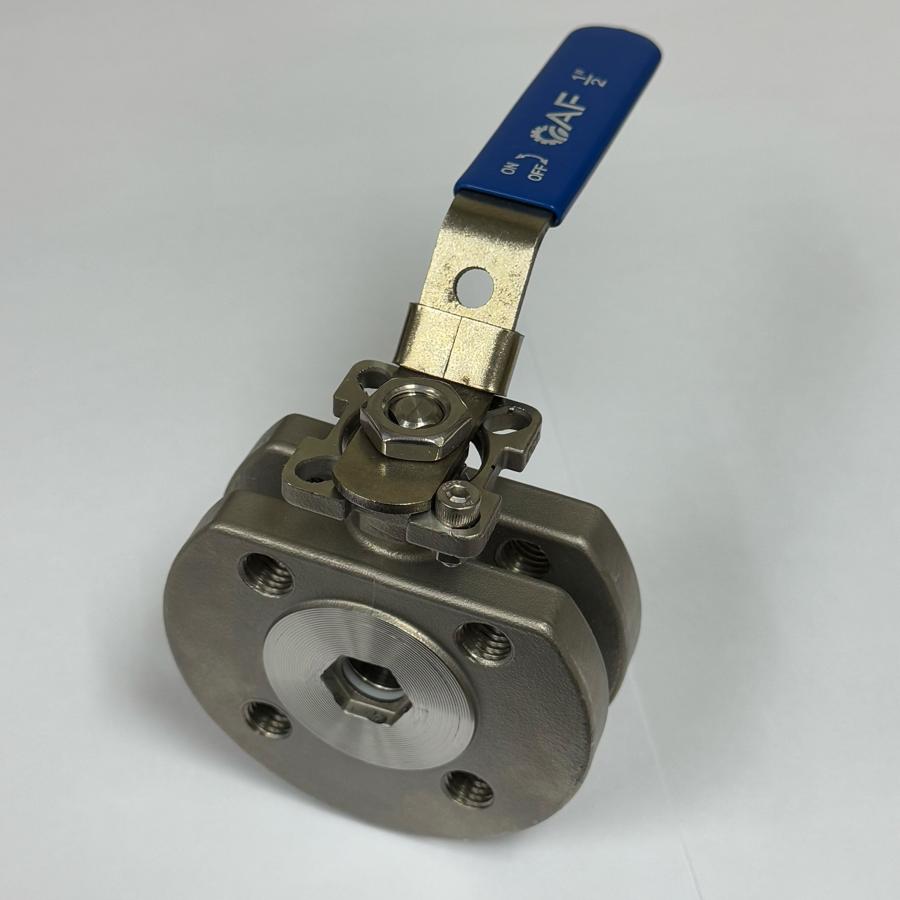

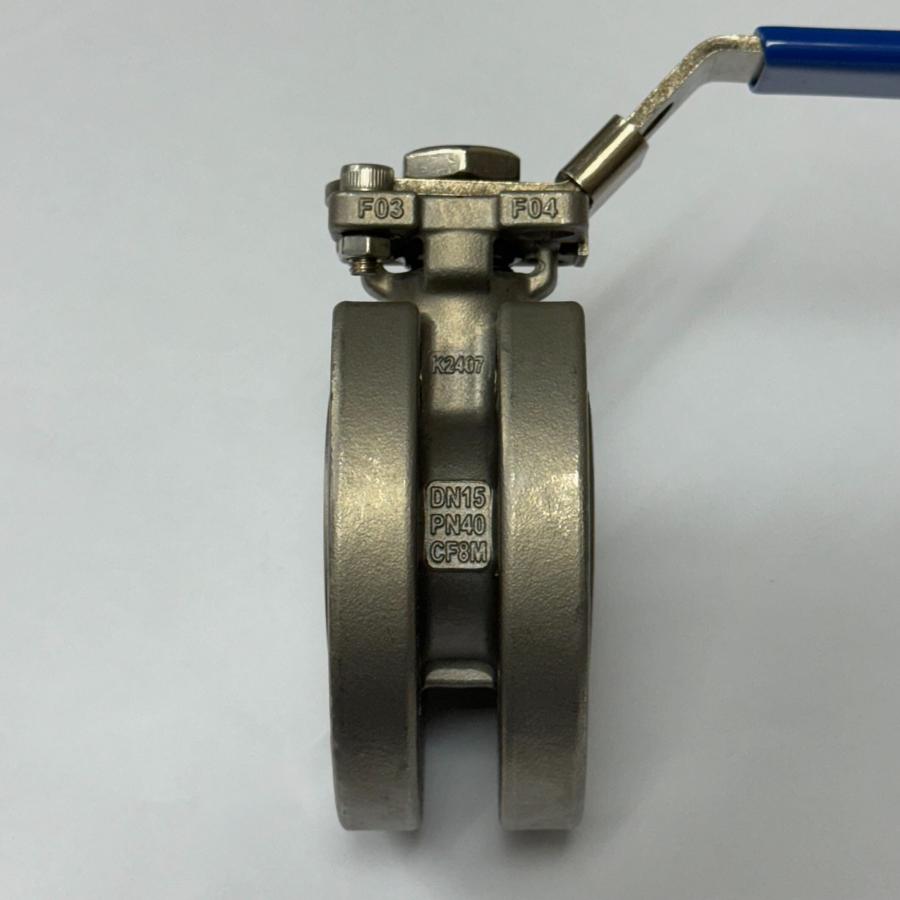

PN16/PN40 SS316 Wafer Type Ball Valve
PN16/PN40 SS316 Wafer Type Ball Valve. Full or reduced bore; tight bubble-tight shut-off with PTFE seats; ideal for on/off isolation, not throttling. Body in Stainless Steel AISI SS316, rated PN10 / PN16. Excellent corrosion resistance for seawater, chemical and hygienic service.
- Bubble-tight shut-off (soft-seated types)
- Corrosion-resistant materials
- Ex-stock in common sizes
- Actuation options on request
Brand
AF Hydro
AF HydroSpecifications
| Valve Type | Wafer Type Ball Valve |
|---|---|
| Size Range | 1/2" – 4" (DN15 - DN100) |
| Operations | Full Bore, Quarter Turn Operation |
| Working Pressure | PN16 / PN40 |
| Body Material | Stainless Steel CF8M (SS316) |
| Seat / Seal | PTFE |
| Applicable Medium | General Oil, Gas & Water Applications |
| Temperature Range | -20°C to +120°C |
Specifications are indicative and vary by size and manufacturer. Request the full datasheet for exact dimensions, materials and certification.
Typical applications
- Water, seawater and utility distribution
- Compressed air and low-pressure gas
- Steam and condensate (rated types)
- Marine, building services and process lines
Ordering & procurement
Ex-stock in Singapore, dispatched within 3 working days. Material / mill certificates (EN 10204 3.1) and export documentation available. Special sizes and materials sourced on request.
Request a quoteProduct Information of PN16 / PN40 Wafer Type Ball Valve
The PN16 / PN40 SS316 Wafer Type Ball Valve is used to permit or stop the flow in a pipeline system. It is designed and manufactured according to API 608, and inspection and testing of the valve is carried out according to the API 598 standard.
It is a full bore ball valve with quarter-turn operation. By turning the handle through 90°, the ball can be set to the open or closed position. Both end connections are flanged to PN16 or PN40 standard, and accessories such as bolts, nuts and a gasket are required to connect between the two flanges.
Material List
| NO | PART NAME | MATERIAL |
|---|---|---|
| 1 | Body | CF8M |
| 2 | Cap | CF8M |
| 3 | Joint Gasket | PTFE |
| 4 | Ball | SS316 |
| 5 | Seat | PTFE |
| 6 | Stem | F316 |
| 7 | Thrust Washer | PTFE |
| 8 | O-Ring | Flexible Graphite |
| 9 | Packing | PTFE |
| 10 | Gland | SS316 |
Pressure-Temperature Rating
Dimensional Drawing
Downloads
Catalogues & literature
FAQ
FAQ of PN16 / PN40 SS316 Wafer Type Ball Valve
What is the size range of PN16 / PN40 SS316 wafer type ball valves?
The size range is from 1/2 inch to 4 inches (DN15 to DN100).
What are PN16 / PN40 SS316 wafer type ball valves made of?
They are made of CF8M.
What is the working pressure of PN16 / PN40 SS316 wafer type ball valves?
The working pressure is PN16 / PN40.
What is the working temperature of PN16 / PN40 SS316 wafer type ball valves?
The working temperature is -20°C to 120°C.
What is the type of connection for PN16 / PN40 SS316 wafer type ball valves?
The connection type is a PN16 / PN40 wafer type flange connection.
Which fields / industries would apply PN16 / PN40 SS316 wafer type ball valves?
They can be used in a variety of sectors, including general oil, gas and water applications.
